Panasonic DMR-ES15EB

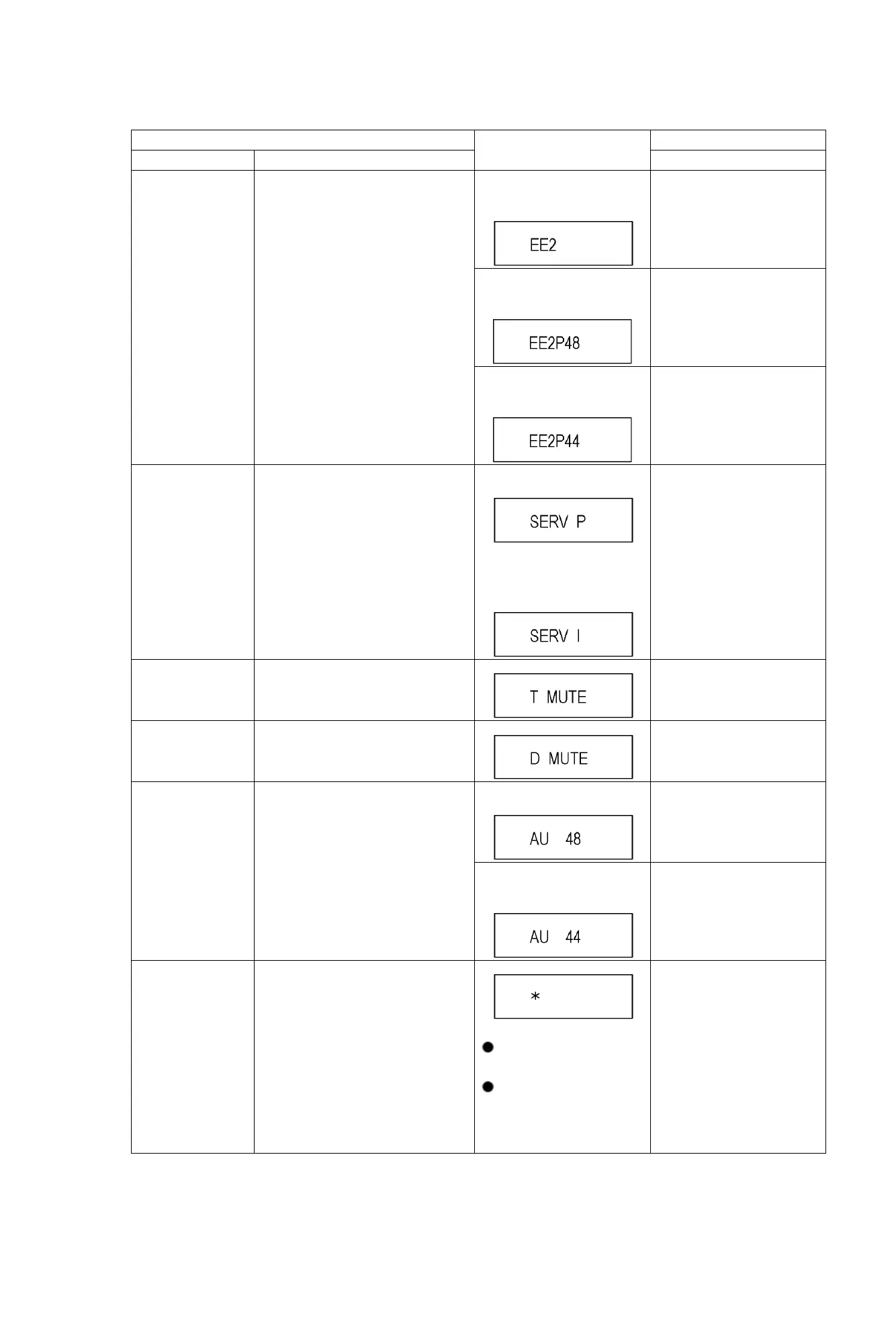

Item FL display Key operation
Mode name Description (Remote controller key)
RTSC Return in XP
(A & V)
AV1 input signal is encoded (XP),
decoded (XP) and output
decoded signal to external
without DISC recording and DISC
playback.
Initial mode: EE2/ Interlace/
XP/ Audio 48kHz
Press [1] [3] in service
mode.
Switch Interlace/
Progressive
Press [1] [4] in RTSC
Return XP mode.
*I/P are switched
alternately.
Audio 44.1 kHz/ 48 kHz
Switch
Press [2] [4] in RTSC
Return XP mode.
*48 kHz / 44.1 kHz are
switched alternately.
I/P Switch Switch Interlace and Progressive
in EE mode.
*Initial setting is “Interlace”.
*This command is effective
during executing “White Picture
Output”, “Magenta Picture
Output” and “RTSC Return in XP
(A & V)” modes.
Initial mode is Interlace
Switch Interlace/
Progressive
Press [1] [4] in I/P Switch
mode.
*I/P are switched
alternately.
Audio Mute
(XTMUTE)
Check whether mute is applied
normally by the timer
microprocessor.
Press [2] [1] in service
mode.
Audio Mute
(XDMUTE)
Check whether mute is applied
normally by the Digital P.C.B..
Press [2] [2] in service
mode.
Audio Pattern
Output
The audio pattern stored in the
internal memory is output
(Lch: 1kHz/-18dB)
(Rch: 400Hz/-18dB)
*Audio sound clock switching
operation of DAC can be
confirmed by sub command [2]
[4].
Initial mode (Audio 48kHz) Press [2] [3] in service
mode.
Audio 44.1kHz/48kHz
switching
Press [2] [4] in Audio
Pattern Output mode.
*48 kHz / 44.1 kHz are
switched alternately.
Laser Used Time
Indiction
Check laser used time (hours) of
drive.
(*****) is the used time
display in hour.
Laser used time of DVD
/ CD in Playback/
Recording mode is
counted.
Press [4] [1] in service
mode.
