Panasonic DMR-EX95V

12

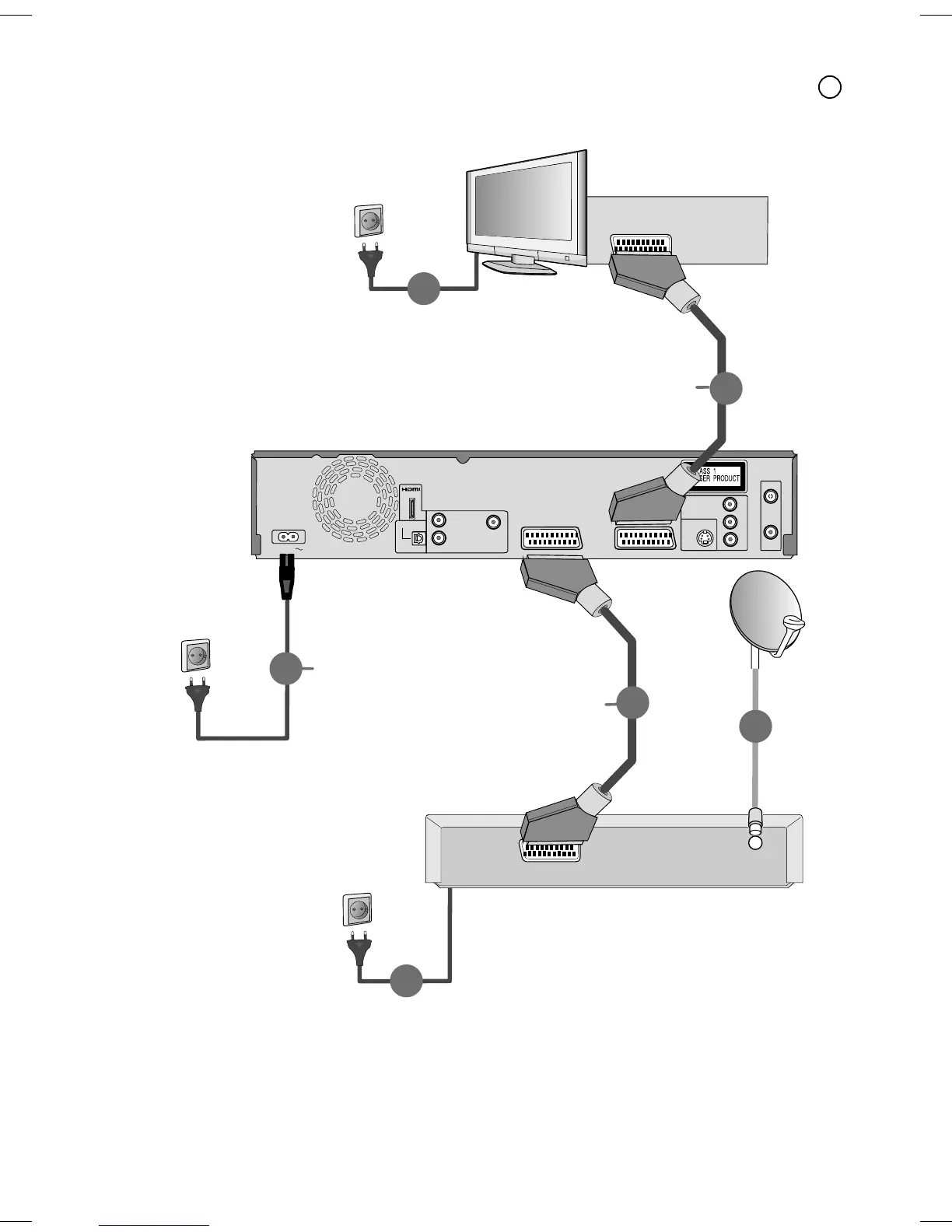

Connecting to a television and satellite receiver
B
To household mains socket
Television’s rear panel
Fully wired 21-pin
Scart cable
(For Q Link functions)
This unit’s rear panel
AC mains lead (included)
Connect only after all other
connections are complete.
To household mains socket
(AC 220 V to 240 V, 50 Hz)
Fully wired 21-pin
Scart cable
To household mains socket
Satellite receiver’s rear panel
AUDIO OUT
L
R
OPTICAL
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
VIDEO OUT
S VIDEO OUT
COMPONENT VIDEO OUT
Y
P
P
B
R
RF OUT
RF IN
AV 2 (EXT)
AV 1 (TV)
AC IN
AV OUT
4
AV IN
2
4
AV OUT
3
4
LNB IN
1
