*When adjusting the up/down position, hold the 'Gear' and adjust it. ( Do not touch
the detector board.)

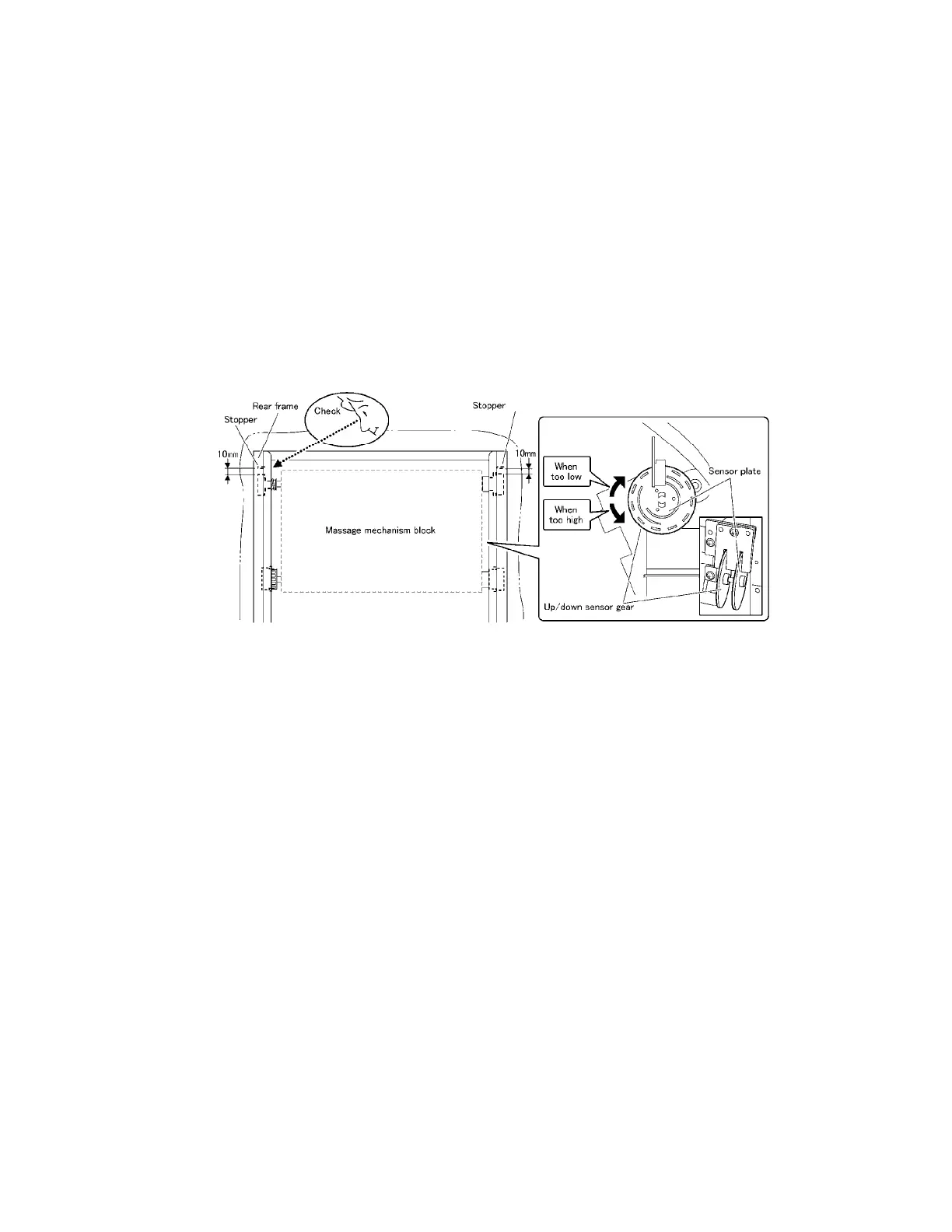

6. While adjusting the distance between the square hole and Guide roller assy. to
10mm, check by using the up/down adjustment button found on the manual
operation panel of the controller.
7. Using the manual operation of the controller, conduct the rolling operation.
10. DISASSEMBLY AND ASSEMBLY INSTRUCTION
10.1. Removing the Arm rest and the Controller stand
10.1.1. Removing the Arm rest
1. Unscrew a hex screw (4mm) on the bottom of the Arm rest.
