10.5. Removing the Lift units
10.5.1. Removing the Ottoman lift unit
1. Follow the procedure 10.3 Removing the Massage mechanism block.
*It is safer to unload the Massage mechanism block.
2. Follow the procedure 10.3 Removing the Under cover.
3. Follow the procedure 10.4 Removing the Under box and the Under box cover 1 to

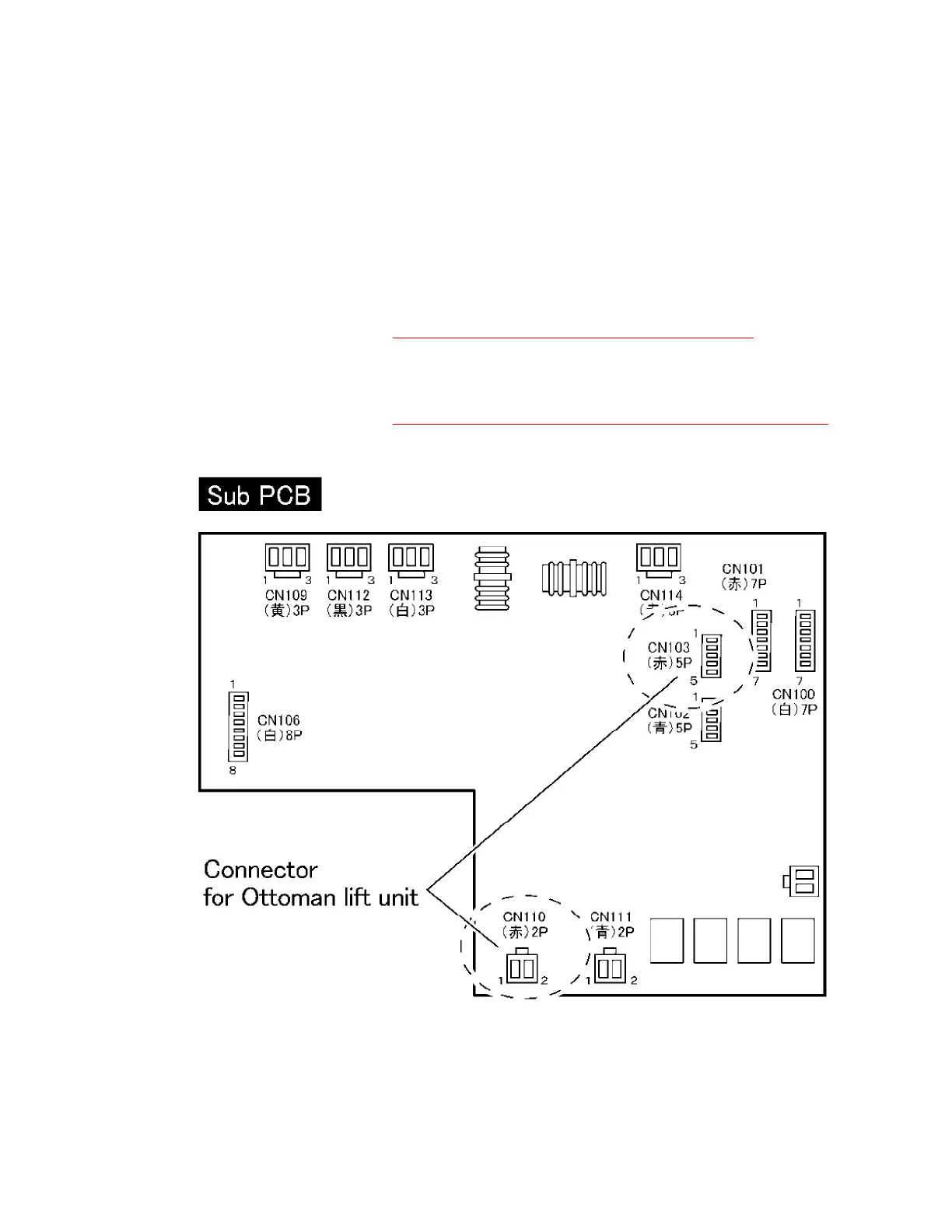

4, and disconnect the connectors red(CN103- CN110) connecting to the Sub PCB.
4. Remove the Ottoman lift pin long and the Snap pin, and remove the Ottoman lift
