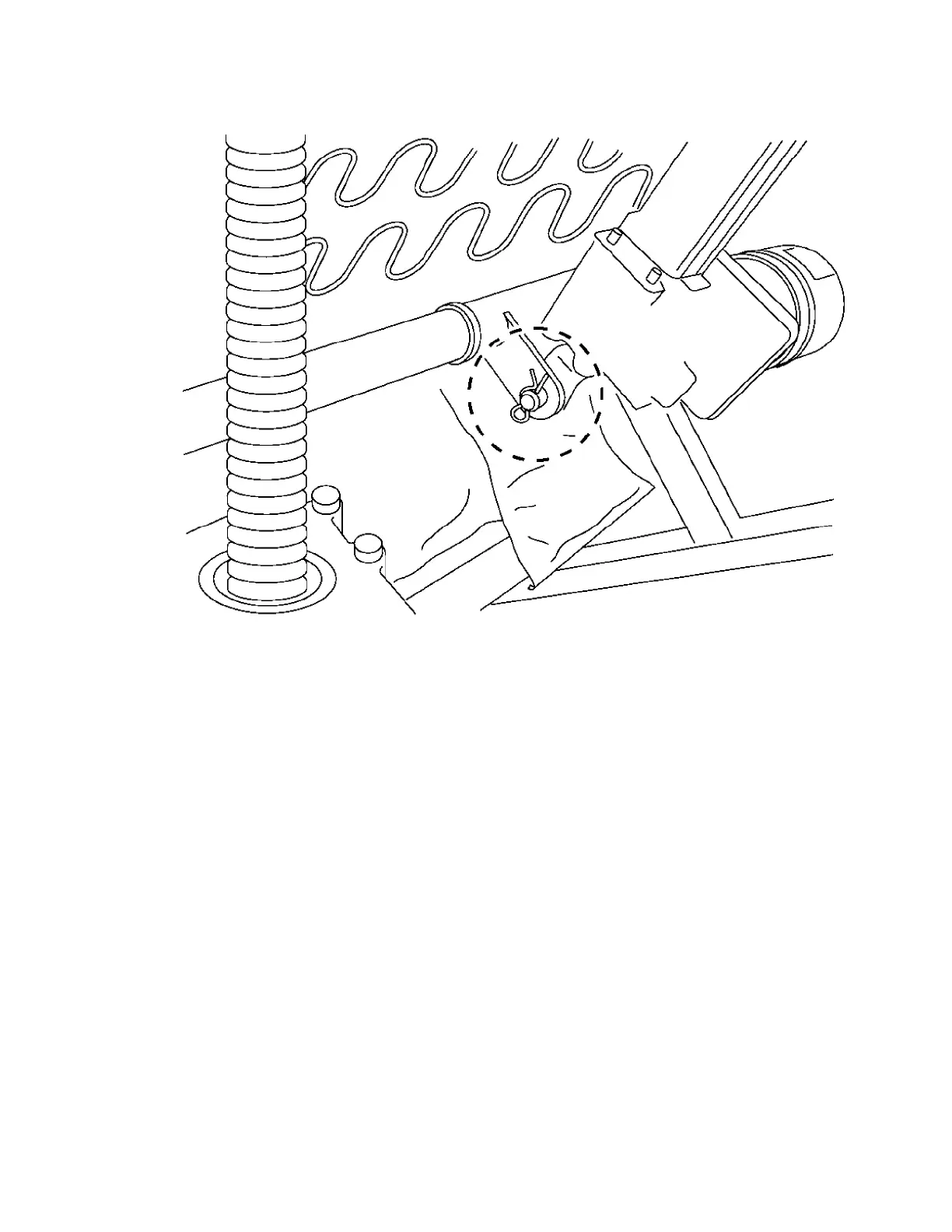

10.5.2. Removing the Reclining lift unit
1. Follow the procedure 10.3 Removing the Massage mechanism block.
*It is safer to unload the Massage mechanism block.
2. Follow the procedure 10.3 Removing the Under cover.
3. Follow the procedure 10.4 Removing the Under box and the Under box cover 1 to
4, and disconnect the connectors blue(CN102- CN111) connecting to the Sub
PCB.
44
