10.6. Removing the Seat
1. Follow the procedure 10.2.1 Removing the Rear cover, 10.1.1 Removing the Arm
rest, and 10.2 Removing the Outside covers.

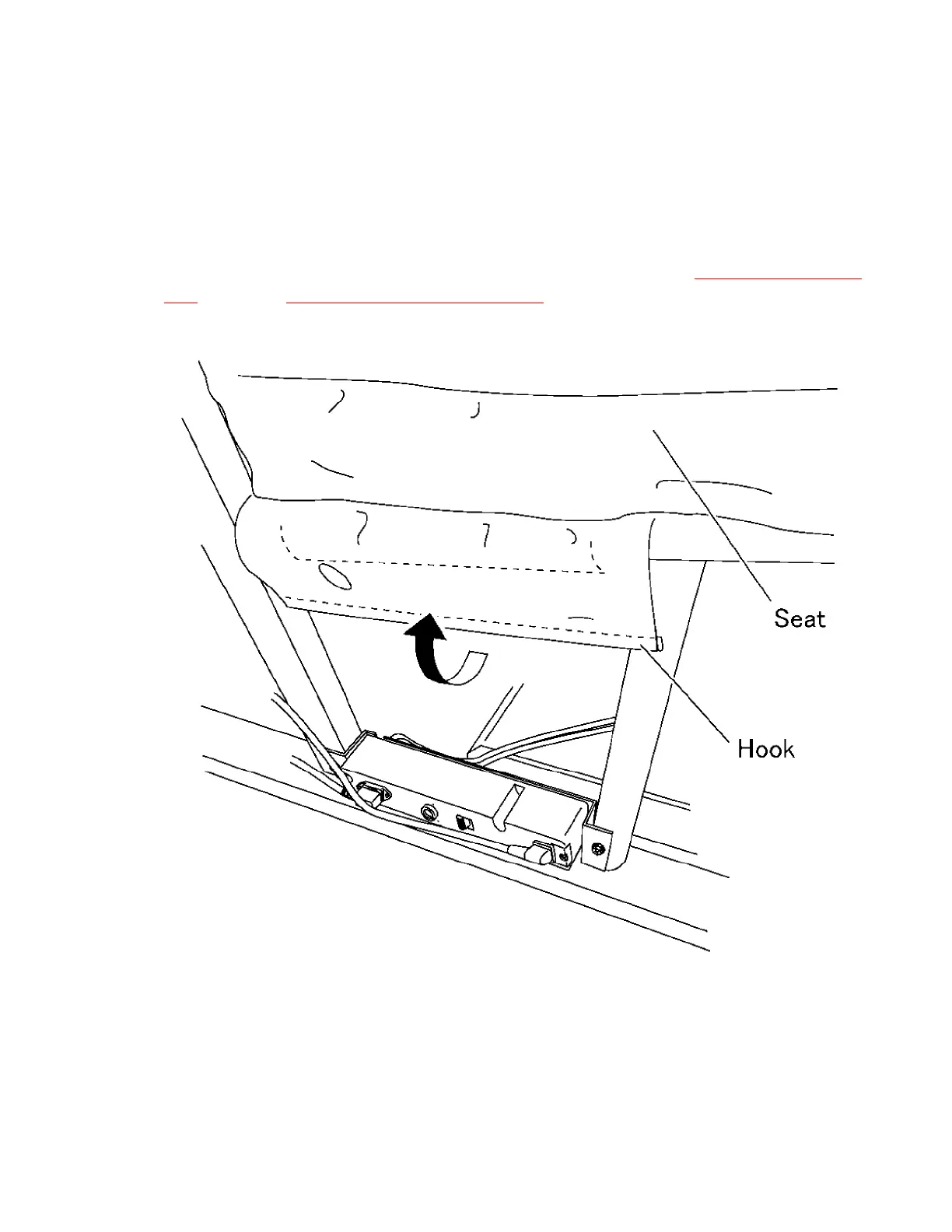

2. Unhook the hooks at both sides of the Seat.
3. Cut off the Insulated tie and unzip the zippers of the Seat and the Ottoman and
unscrew one each Push return rivets on both sides, and take off the Seat.
47
