10.7.3. Removing the Air Ottoman inside (Air bags, Hoses)
1. Follow the procedure 10.7.1 Removing the Air Ottoman and the procedure 10.7.2
Removing the Air Ottoman fabric.

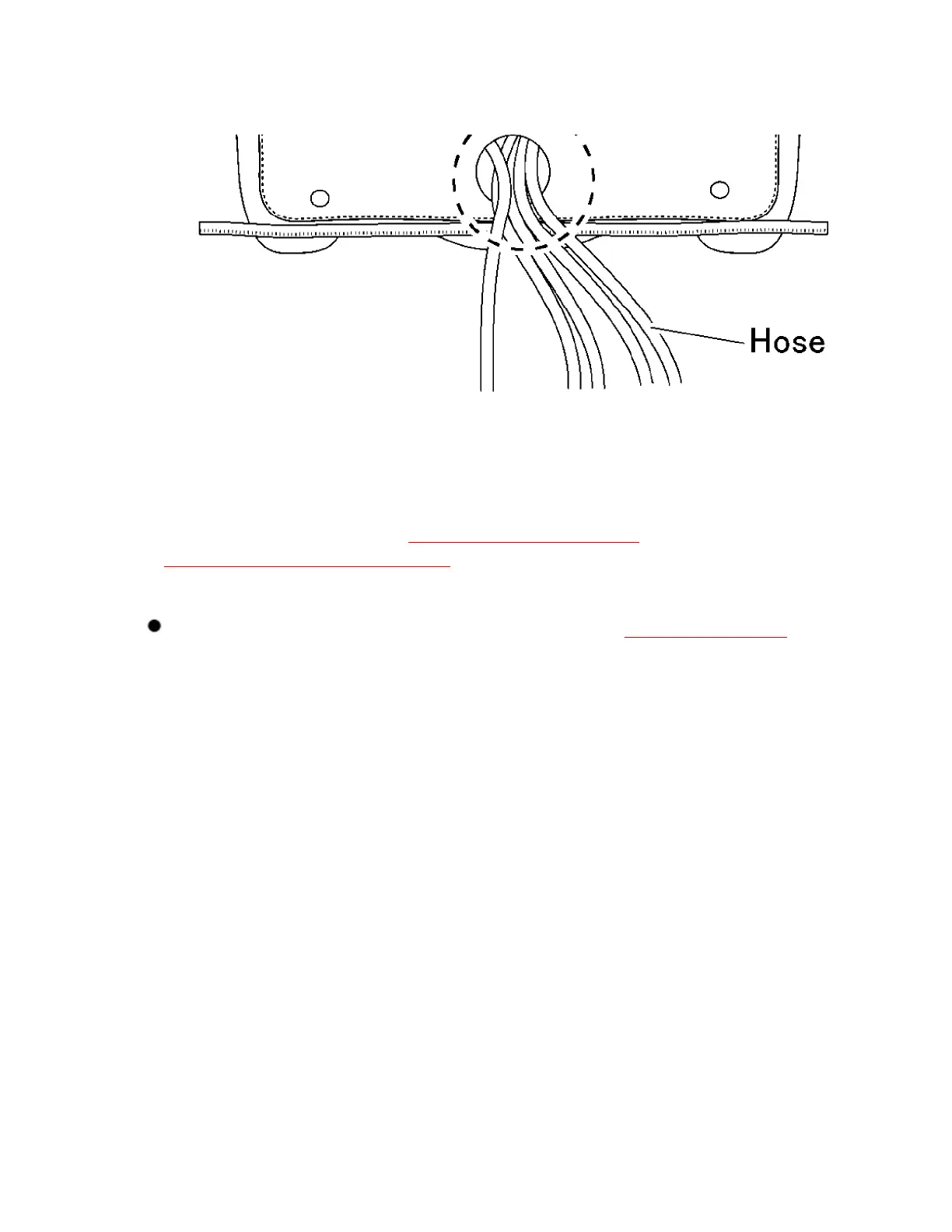

2. Cut off all the Insulated ties binding Hoses.
When installing the Insulated ties, refer to the 10.7.4 Air Ottoman hoses.
3. Remove the Hinge pin minis and the Snap pins of the Leg pipe and the Foot pipe.
4. Remove the Anchor clips of the Air bags and remove Air bags.
