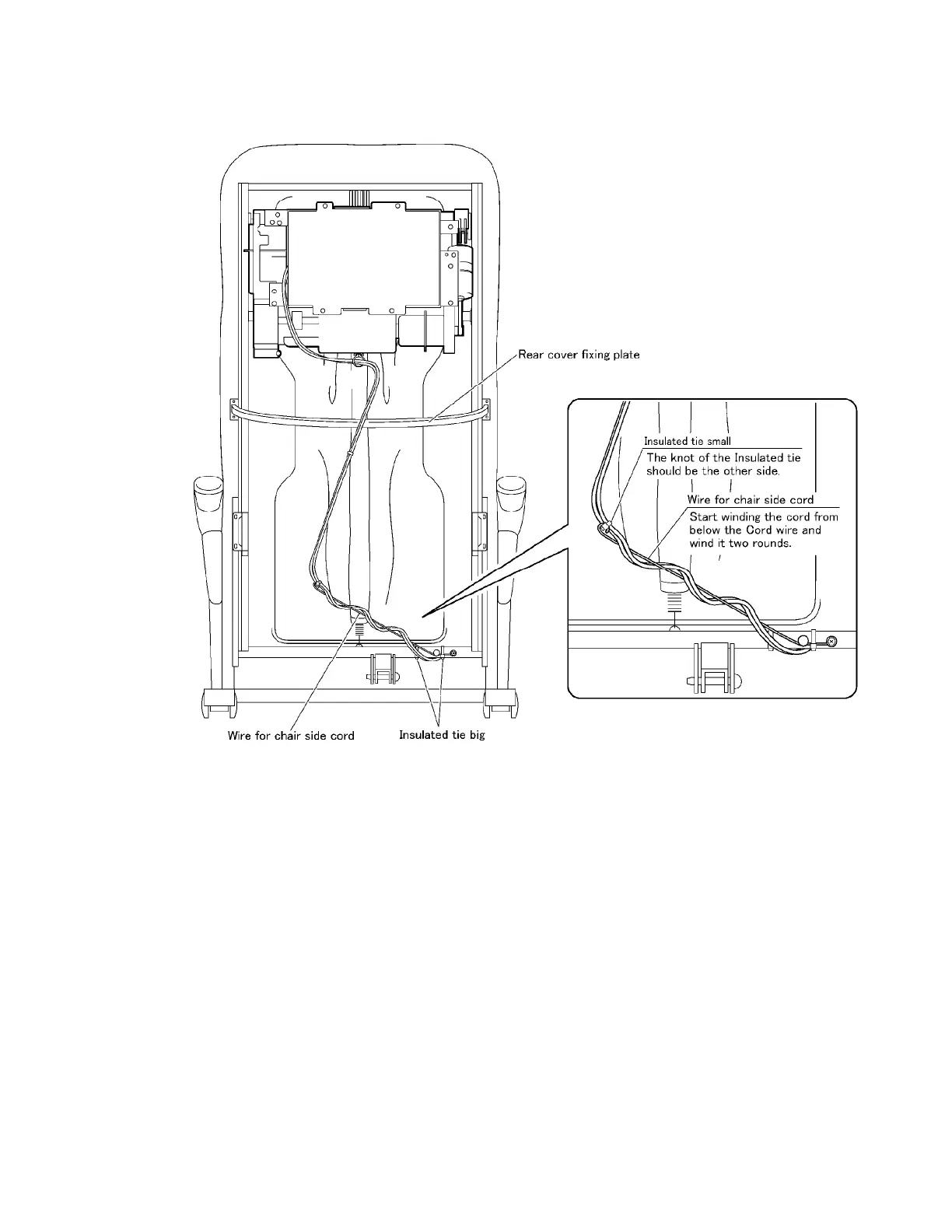

10.12. Lead wires of Massage mechanism block
Refer to the following figure for the fixing of the Main PCB, motors, sensors, parts,
and Insulated ties.
80
