Panasonic EP3203-U1 - Page 89

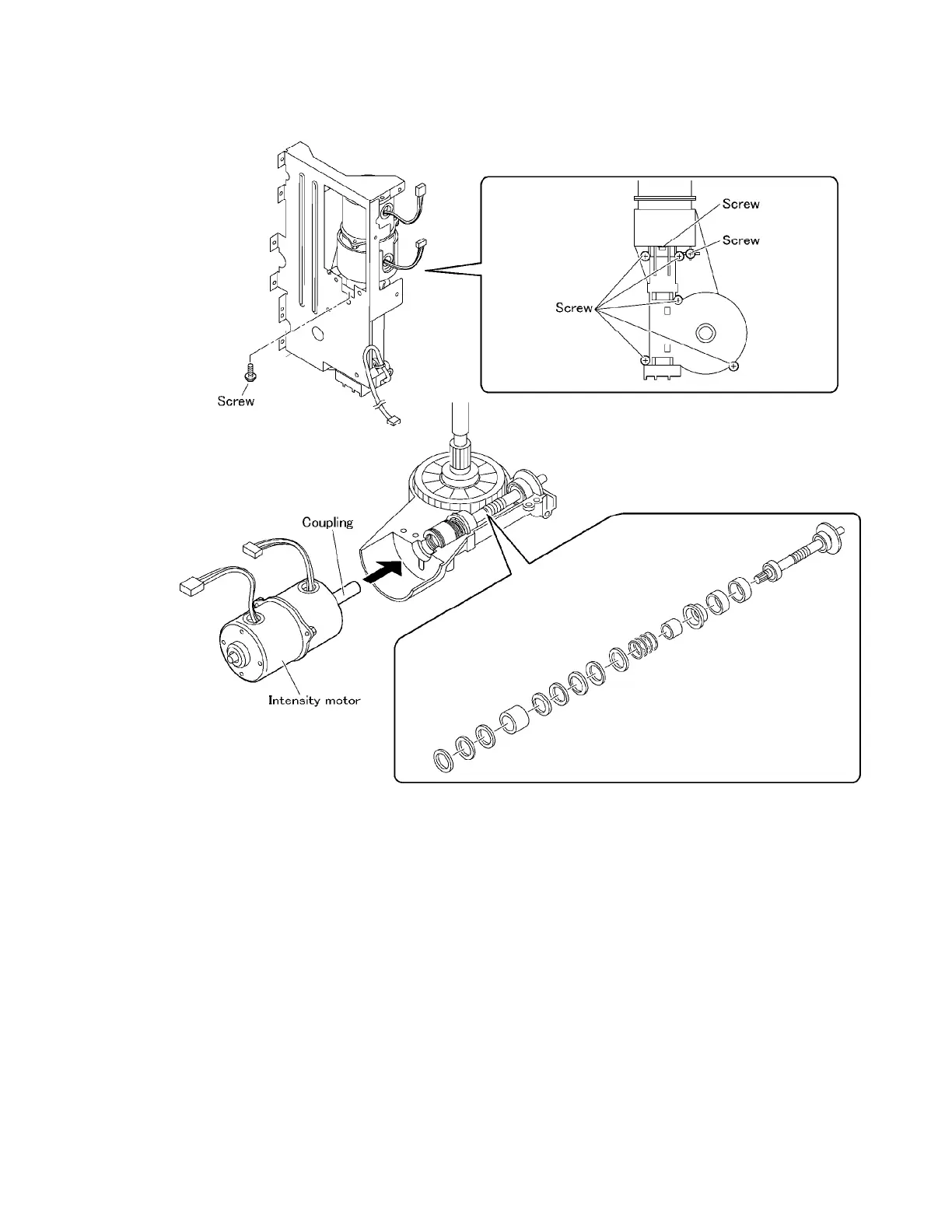

10.13.12. Removing the Width driving block
*Follow the procedure 10.13.4 Removing the Width sensor 1-3.
*Follow the procedure 10.13.10 Removing the Up/down gear box 1-3.
1. Take off the clamps of the Shoulder air bag hose 1.2 and remove the Width
driving block.
2. Unscrew four screws of the Back vibrator left/right.
Caution when installing
89
