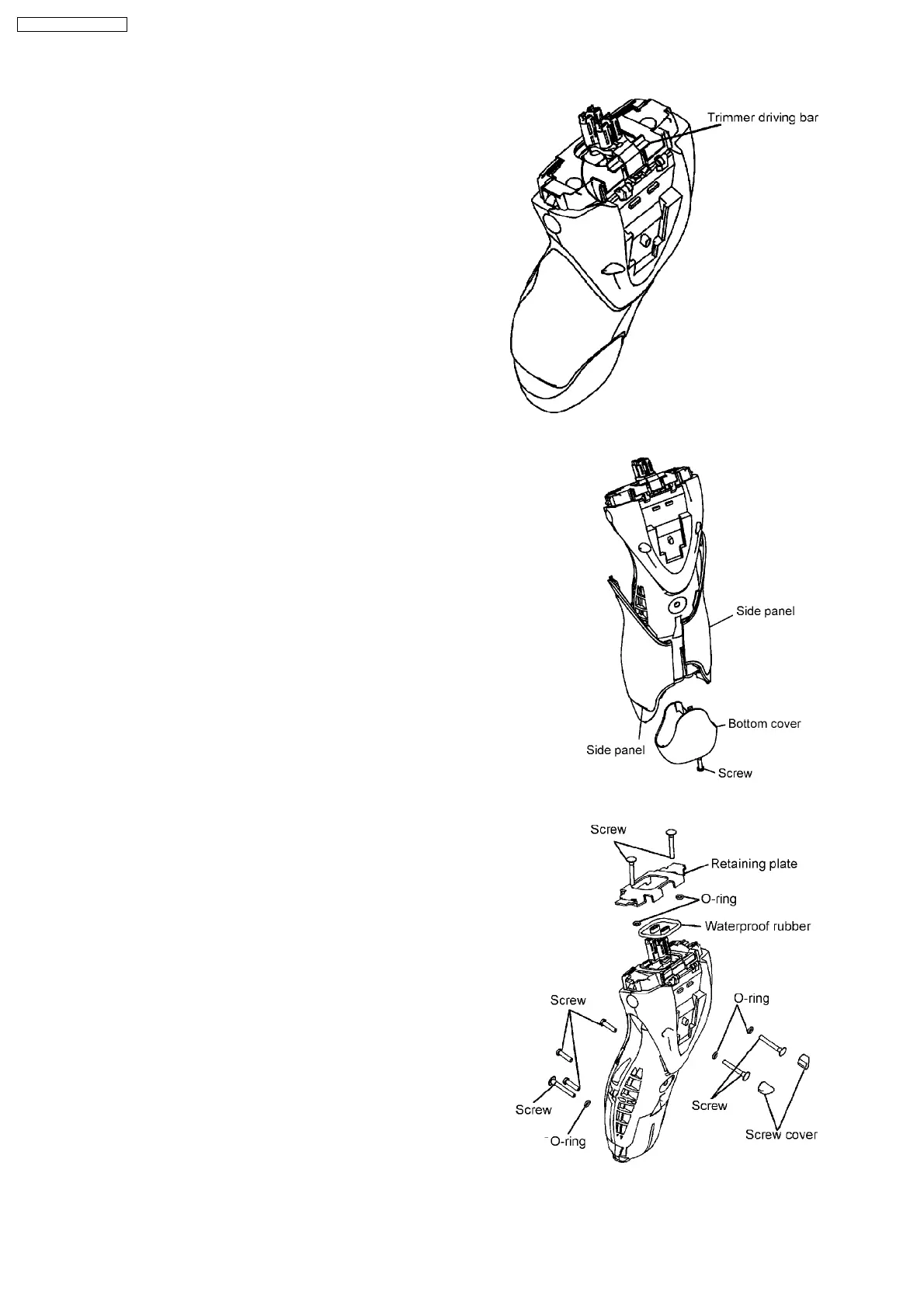

4. To remove the trimmer driving bar, press it outward.
5. Loosen a screw and remove the bottom cover.
6. Peel off the side panels on both sides.
7. Loosen two screws and the retaining plate. Remove the
waterproof rubber.
8. Remove the two screw covers using something like a
toothpick and six screws.
4
ES4033-A3 / ES4035-A3
