NOTE: When reassembling, replace the new waterproof
rubber.
Make sure whether there is NO foreign substance sticking
around a part covered with water seal.

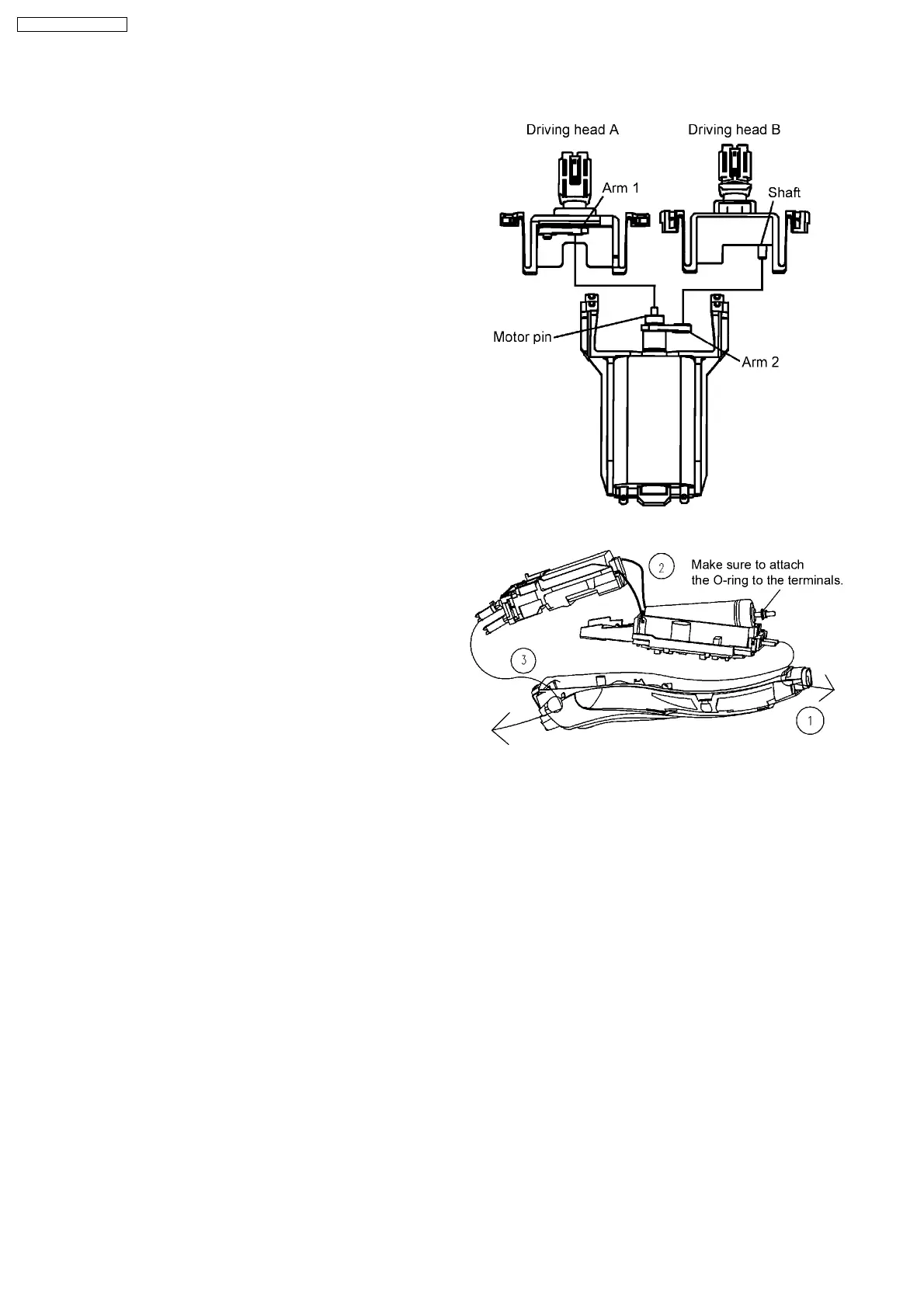

4.1. Driving heads
Install the driving head A in motor and assemble the driving
head B.
4.2. Rechargeable battery
Insert the rechargeable battery into chassis. Attach the battery
o-ring and washer to the battery.
4.3. Motor and Module assembly
Put the motor and module assembly from the battery terminal
side into housing A, and insert the driving heads side into
housing A.
NOTE: Make sure that the red lead wire is not over the
chassis rib.
Press fit the red lead wire neatly under the rib of motor
holder and the blue lead wire in between batteries certainly
in order to protect pinching.
4 CAUTION IN ASSEMBLY
6
ES4033-A3 / ES4035-A3
