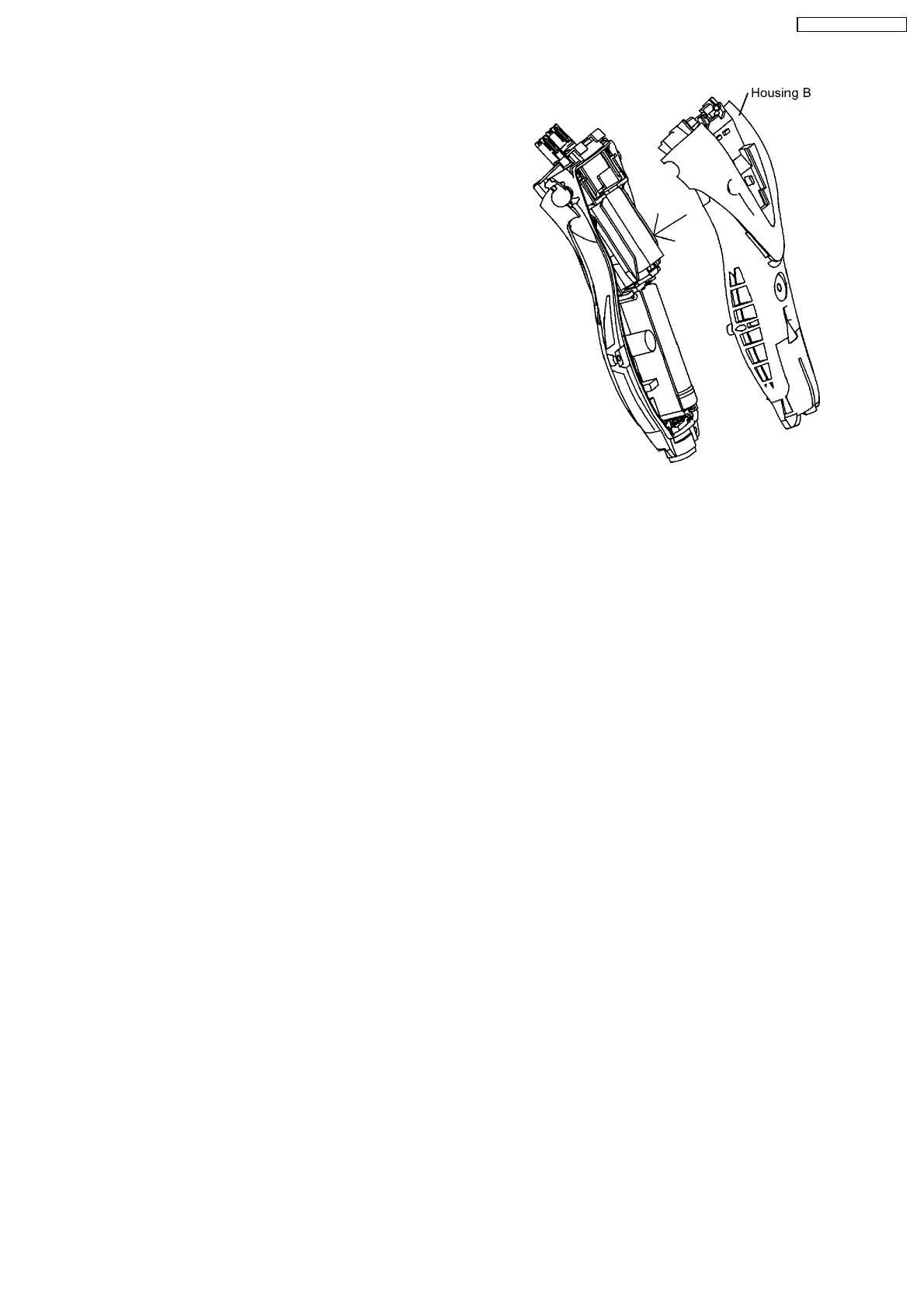

4.4. Housing
Set the both sides of foil frame release buttons with springs.
Put the housing B on the housing A.
Tighten the screws with care of pinching screw o-rings.
4.5. Waterproof rubber
The waterproof rubber must be fitted the right way around.
Install as shown in figure by inserting firmly to the proper
position.
4.6. Driving bar
Set the trimmer driving bar.
7
ES4033-A3 / ES4035-A3
