Panasonic EY6808 - Page 3

Model EY6808

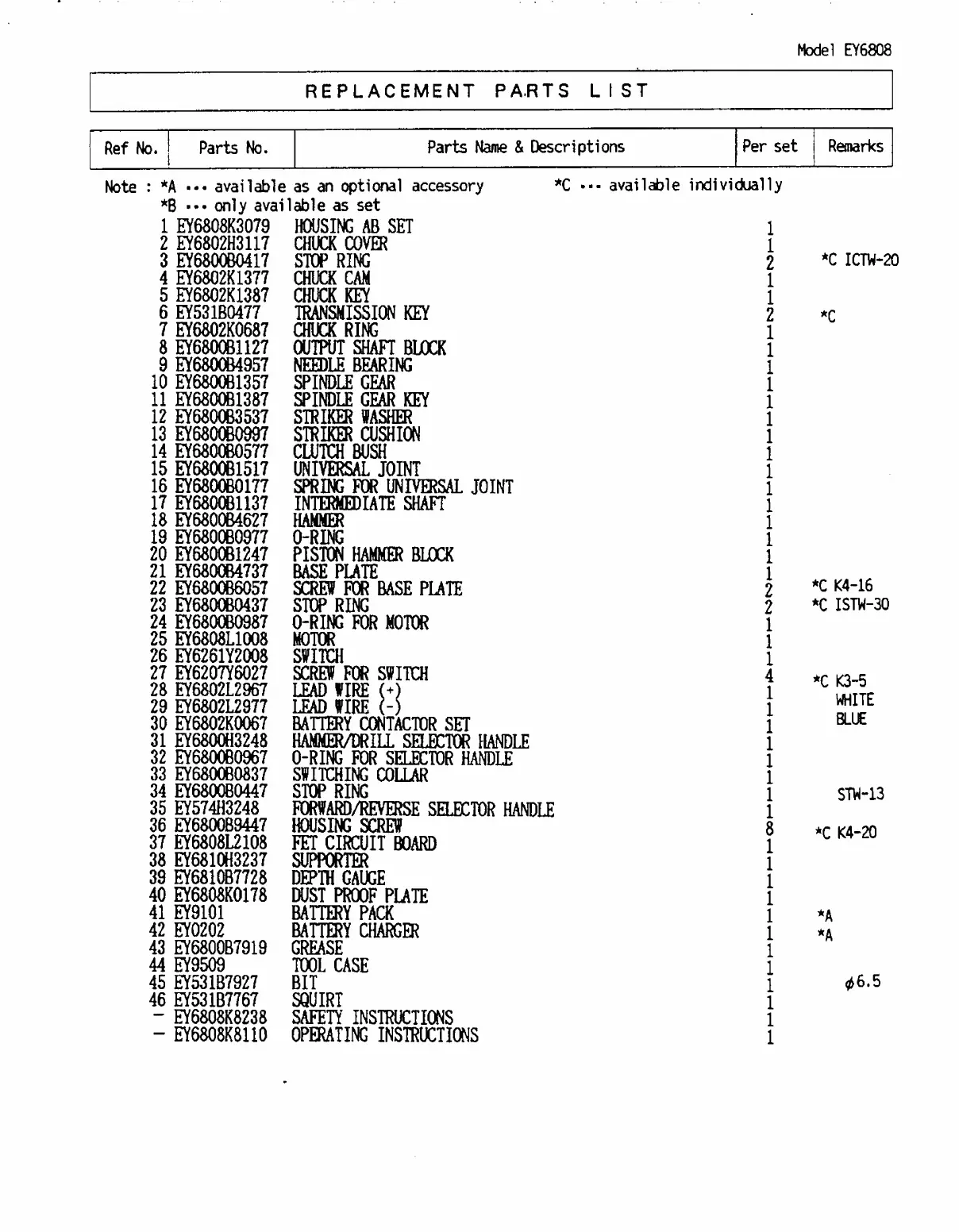

REPLACEMENT PARTS LIST
Ref No. Parts No. Parts Name & Descriptions Per set Remarks
Note : *A ••• available as an optional accessory *C available indivicfcjal1y
*B only available as set
1 EY6808K3079 HOUSING AB SET 1
2 EY6802H3117 CHUCK COVER 1
3 EY6800B0417 STOP RING 2
4 EY6802K1377 CHUCK CAM 1
5 EY6802K1387 CHUCK KEY 1
6 EY531B0477 TRANSMISSION KEY 2
7 EY6802K0687 CHUCK RING 1
8 EY6800B1127 OUTPUT SHAFT BLOCK 1
9 EY6800B4957 NEEDLE BEARING 1
10 EY6800B1357 SPINDLE GEAR 1
11 EY6800B1387 SPINDLE GEAR KEY 1
12 EY6800B3537 STRIKER WASHER 1
13 EY6800B0997 STRIKER CUSHION 1
14 EY6800B0577 CLUTCH BUSH 1
15 EY6800B1517 UNIVERSAL JOINT 1
16 EY6800B0177 SPRING FOR UNIVERSAL JOINT 1
17 EY6800B1137 INTERMEDIATE SHAFT 1
18 EY6800B4627 HAMMER 1
19 EY6800B0977 O-RING 1
20 EY6800B1247 PISTON HAMMER BLOCK 1
21 EY6800B4737 BASE PLATE 1
22 EY6800B6057 SCREW FOR BASE PLATE 2
23 EY6800B0437 STOP RING 2
24 EY6800B0987 O-RING FOR MOTOR 1
25 EY6808L1008 MOTOR 1
26 EY6261Y2Q08 SWITCH 1
27 EY6207Y6027 SCREW FOR SWITCH 4
28 EY6802L2967 LEAD WIRE (+) 1
29 EY6802L2977 LEAD WIRE (-) 1
30 EY6802K0067 BATTERY CONTACTOR SET 1
31 EY6800H3248 HAMMER/DRILL SELECTOR HANDLE 1
32 EY6800B0967 O-RING FOR SELECTOR HANDLE 1
33 EY6800B0837 SWITCHING COLLAR 1
34 EY680GB0447 STOP RING 1
35 EY574H3248 FORWARD/REVERSE SELECTOR HANDLE 1
36 EY6800B9447 HOUSING SCREW 8
37 EY6808L2108 FET CIRCUIT BOARD 1
38 EY6810H3237 SUPPORTER 1
39 EY6810B7728 DEPTH GAUGE 1
40 EY6808K0178 DUST PROOF PLATE 1
41 EY9101 BATTERY PACK 1
42 EY0202 BATTERY CHARGER 1
43 EY6800B7919 GREASE 1
44 EY9509 TOOL CASE 1
45 EY531B7927 BIT 1
46 EY531B7767 SQUIRT 1
- EY6808K8238 SAFETY INSTRUCTIONS 1
- EY6808K8110 OPERATING INSTRUCTIONS 1
*C ICTW-20
*C
*C K4-16
*C ISTW-30
*C K3-5
WHITE
BLUE
STW-13
*C K4-20
*A
*A
# 6. 5
