Model EY6808

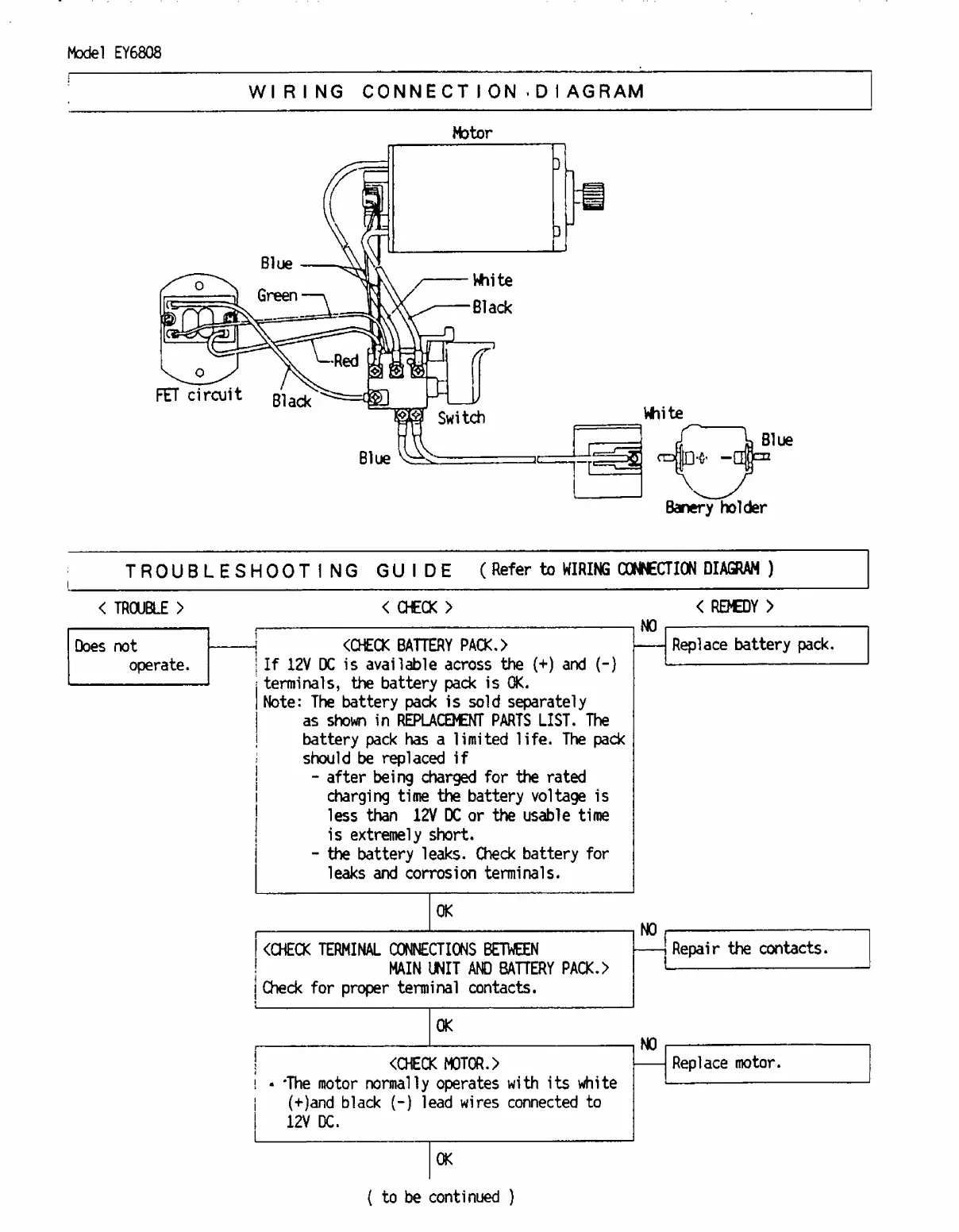

WIRING CONNECTION. DI AGRAM
Motor
TROUBLESHOOT I NG GUI DE (Refer to WIRING CONNECTION DIAGRAM )
< TROUBLE >
< CHECK >
NO
< REMEDY >
Does not
-j <CHECK BATTERY PACK. >
Replace battery pack.
operate.
1 If 12V DC is available across the {+) and (-}
1 terminals, the battery pack is OK.
I Note: The battery pack is sold separately
I as shown in REPLACEMENT PARTS LIST. The
battery pack has a limited life. The pack
should be replaced if
- after being charged for the rated
i charging time the battery voltage is
j less than 12V DC or the usable time
j is extremely short.
; - the battery leaks. Check battery for
leaks and corrosion terminals.
OK
<CHECK TERMINAL CONNECTIONS BETWEEN
MAIN UNIT AND BATTERY PACK.>
Check for proper terminal contacts.
NO
Repair the contacts.
OK
! <CHECK MOTOR.>
! • 'The motor normally operates with its white
| (+)and black (-) lead wires connected to
I 12V DC.
NO
Replace motor.
OK
( to be continued )
