j Standby lamp
Orange
Lit - Battery pack is warm. Charging
will begin when temperature of
battery pack drops.
Charging is not possible.
Clogged with dust or malfunction
of the battery pack drops.
Possibly foreign matter in the charger's battery pack socket,
or a malfunction of the battery pack.
_T‘
!— • Flashing

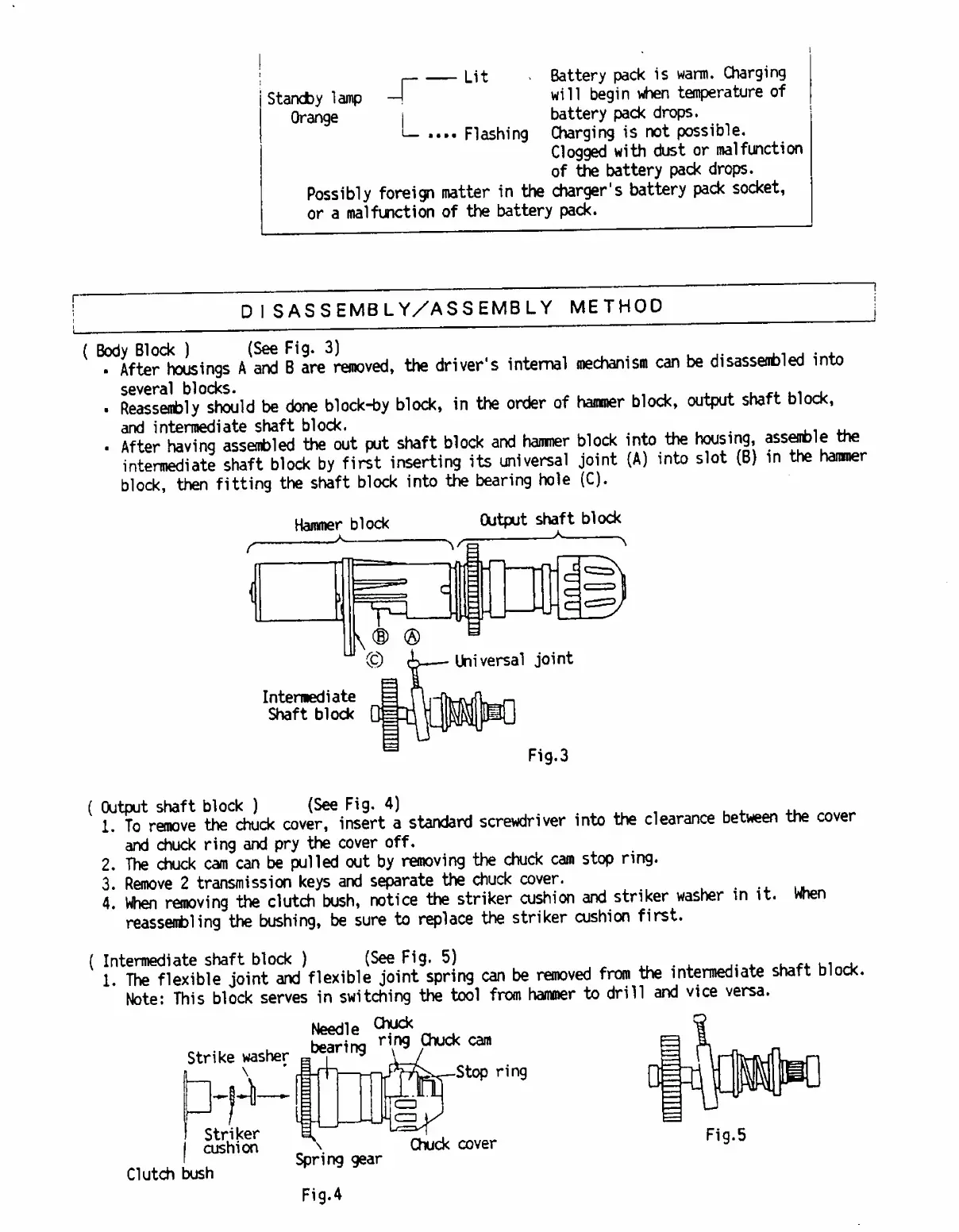

DISASSEMBLY/ASSEMBLY METHOD
( Body Block ) (See Fig. 3) .. , . ,
. After housings A and B are removed, the driver's internal mechanism can be disassembled into
several blocks. ,, , . . , x . .,_,
. Reassenbly should be done block-by block, in the order of hammer block, output shaft block.
and intermediate shaft block. m i* . . l a -
. After having assembled the out put shaft block and hammer block into the toeing,
intermediate shaft block by first inserting its universal joint (A) into slot (B) in the hammer
block, then fitting the shaft block into the bearing hole (C).
( Output shaft block ) (See Fig. 4)
1. To remove the chuck cover, insert a standard screwdriver into the clearance between the cover
and chuck ring and pry the cover off.
2. The chuck cam can be pulled out by removing the chuck cam stop ring.
3. Remove 2 transmission keys and separate the chuck cover.
4. When removing the clutch bush, notice the striker cushion and striker washer in it. When
reassembling the bushing, be sure to replace the striker cushion first.
( Intermediate shaft block ) (See Fig. 5) . , .. . . .. hlnH .
1. The flexible joint and flexible joint spring can be removed from the intermediate shaft block
Note: This block serves in switching the tool from hammer to drill and vice versa.
Strike washer
N rrH I r Chuck
bearing «•
Clutch bush
Stop ring
Chuck cover
