Panasonic EY7410LA2S

- 7 -

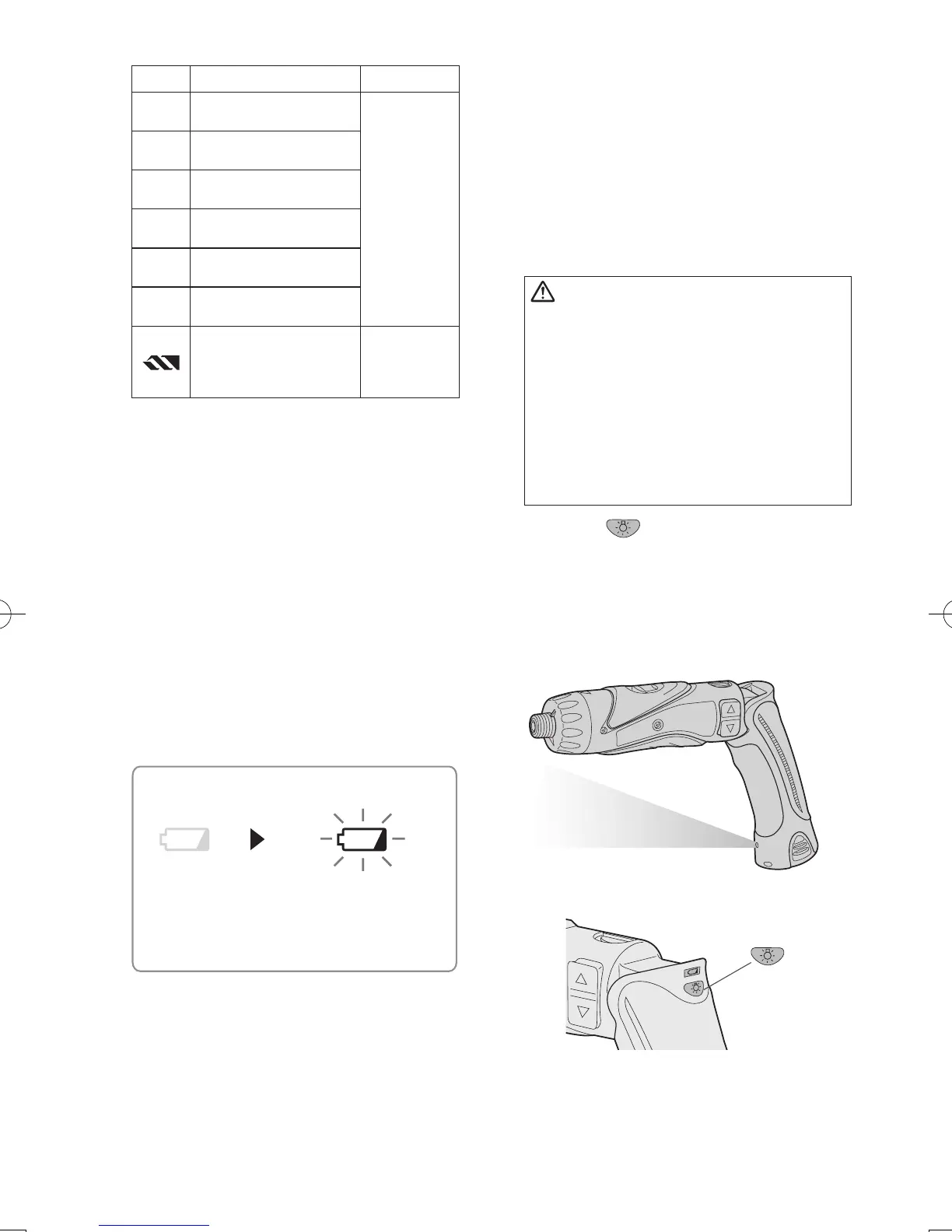

Reference for Adjusting Torque
Setting Torque Use
1
Approx: 0.29 N · m
(3.0 k g f-cm or 2.6 in-lbs)
For driving
screws
5
Approx: 0.82 N · m
(8.4 kgf-cm or 7.3 in-lbs)
9
Approx: 1.35 N · m
(13.8 kgf-cm or 12.0 in-lbs)
13
Approx: 1.88 N · m
(19.2 kgf-cm or 16.6 in-lbs)
17
Approx: 2.41 N · m
(24.6 kgf-cm or 21.3 in-lbs)
21
Approx: 2.94 N · m
(30.0 kgf-cm or 26.0 in-lbs)
Approx: 4.4 N · m
(45.0 kgf-cm or 39.0 in-lbs)
For power-
ful driving
screws and
drilling
● When using at high speeds, set the
clutch at 10 or below. (Operation
stops at the maximum torque of 1.5
N·m (15 kgf-cm) when the scale is
higher.)
● The auto shut-off function may be-
come inoperable at higher clutch
settings when battery power drops.
Recharge the battery in that case.
NOTE:
The chart is only a reference. The
torque settings may differ by materi-
als, types of screws, etc. Please test
it at your own conditions before use.
Battery Low Warning Lamp
<Battery low warning lamp>
Off
(normal
operation)
Flashing
(No charge)
Battery
protection
feature active
Excessive (complete) discharging of
Li-ion batteries shortens their service
life dramatically. The driver includes a
battery protection feature designed to
prevent excessive discharging of the
battery pack.
●The battery protection feature acti
-
vates immediately before the bat-
tery loses its charge, causing the
battery low warning lamp to flash.
●If you notice the battery low warn
-
ing lamp flashing, charge the bat-
tery pack immediately.
Using the LED Light
Use the LED light on jobs in dark
locations such as attics to illuminate
your workspace.
CAUTION
●TheLEDlightisintendedforuseas
a supplemental light source. Do not
useitasaashlight.
Doing so may result in accident or
injury.
●Donotlookat the lightor shineit
directly into your eyes.
Continuous exposure to the LED
light may damage your eyes.
1. Press to toggle the light on
and off.
●Tousethelightimmediatelyafter
attaching the battery pack or after
the drill has not been used for 5
minutes or more, operate the drill
briefly.
● The light will automatically turn
off if the drill is not used for 5
minutes.
● The light uses an extremely small
amount of current. Using the light
