7
-

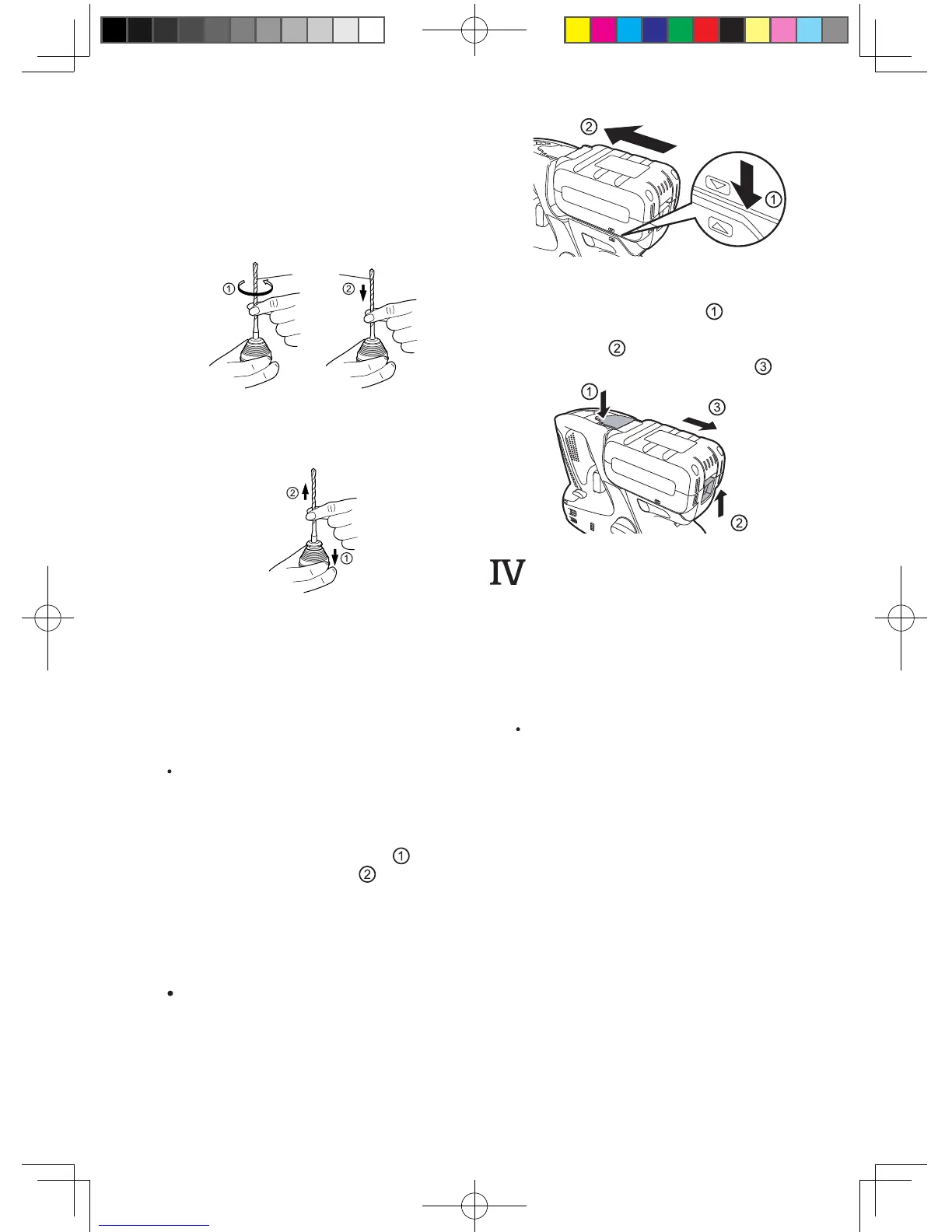

1. To mount the bit
1-1. Insert a bit into the mounting hole,
and turn it slightly to locate an en-
gaged position.
1-2. At the engaged position, push the
bit as far as it goes. Make sure that
the bit is fixed by pulling it.
SDS PLUS type
shank
2. To dismount the bit
2-1. Depress the chuck cover and pull
the bit.
Attaching or Removing Bat-
tery pack
Battery holder
The battery pack is designed to be in-
stalled by proceeding two steps for safety.
Make sure the battery pack is installed
properly to the main body before use.
Battery pack Installation and Removal
-For installation-
To attach the battery pack, line up the
alignment marks on the body of the
tool and the battery pack, (
) and
insert the battery pack. (
)
• After you hear the battery pack
clicks when inserting it, keep in-
serting it firmly until the lever locks
it to click once more.
NOTE:
The overheat warning lamp and
the battery low warning lamp will
flash when the battery pack is not
inserted firmly.
-For removal-
Push the battery holder ( ).
While the battery pack release button
is held up, (
) move the battery pack
laterally and pull out the pack. (
)
Battery
holder
Release
lever
. OPERATION
[Main Body]
CAUTION:
When operating the tool by pulling
the trigger, there may be a momen-
tary lag before rotation starts. This
does not signal a malfunction.
This lag occurs as the tool’s cir-
cuitry starts up when the trigger
is pulled for the first time after in-
stalling a new battery pack or af-
ter the tool has not been used for
at least 1 minute (or at least 5 min-
utes when the LED is on). Rotation
will start without any lag during sec-
ond and subsequent operations.
