7) Do not strain the tool by holding the speed
control trigger halfway (speed control
mode) so that the motor stops.

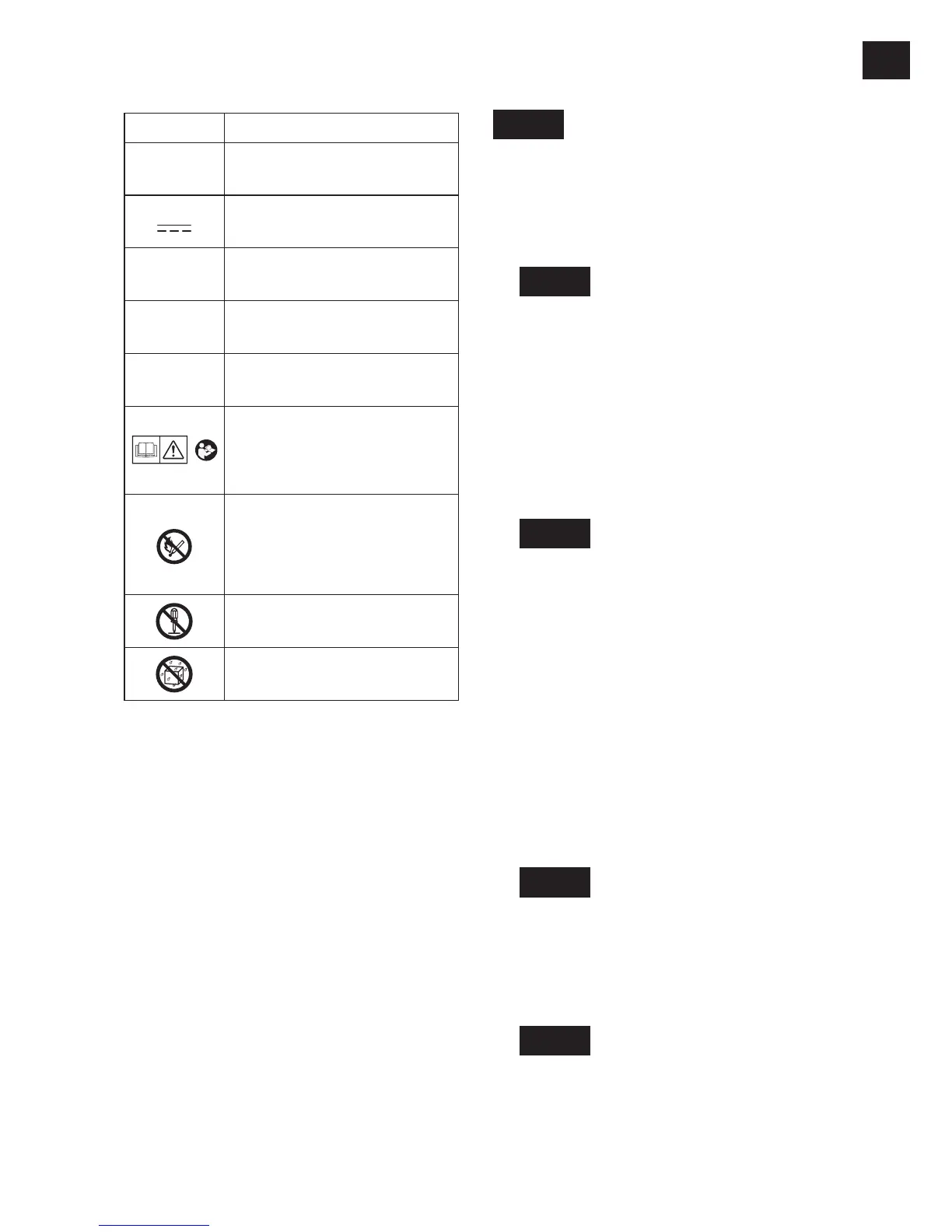

Symbol Meaning
V
Volts
Direct current
n
0
No load speed
… min
-1
Revolutions or
reciprocations per minutes
Ah
Electrical capacity of battery
pack
To reduce the risk of
injury, user must read and
understand instruction
manual.
Do not incinerate or heat
battery pack. Do not charge
or use under conditions of
high temperature. Do not ex-
pose to high temperatures.
Do not disassemble or
modify.
Do not expose to rain or
water.
IV
. ASSEMBLY
CAUTION:
Make sure that the socket, extension
or any attachment used with the tool to
hold fasteners is designed specifically
for power tools (Impacting tools).
Using the tool with attachments designed
for hand tools may break the attach-
ments and cause possible danger.
Also, Make sure that there is nothing
wrong on the attachment before operat-
ing.
NOTE:
If a worn or deformed socket is used,
the square drive (retainer ring and pin)
may not enter the socket properly.
Attaching Socket (Pin type)
Remove the socket’s rubber ring and pin.
[Fig.1]
1 Attach the socket to the tool.
2 Insert the pin. (Taking care to align the pin
holes on the socket and tool.)
3 Attach the rubber ring by sliding it into
place over the groove.
[Fig.2]
NOTE:
Be sure to attach the rubber ring to pre-
vent the pin from falling out.
Removing Socket (Pin type)
1 Remove the rubber ring.
2 Remove the pin.
3 Remove the socket from the tool.
[Fig.3]
NOTE:
Keep the temperature of the tool above
the freezing point (0°C/32°F) when
attaching sockets to or removing them
from the square drive on the tool. Do
not use excessive force when attaching
or removing sockets.
Attaching Socket (Pin-detent)
1 Depress the pin-detent on the square drive.
2 Attach the socket to square drive.
3 Make sure the socket is securely attached
to the square drive.
[Fig.4]
Removing Socket (Pin-detent)
1 Insert a small rod into the hole on the socket.
2
Depress the pin-detent, then detach the socket.
[Fig.5]
To Next Page
