13.
14.
15.
16.

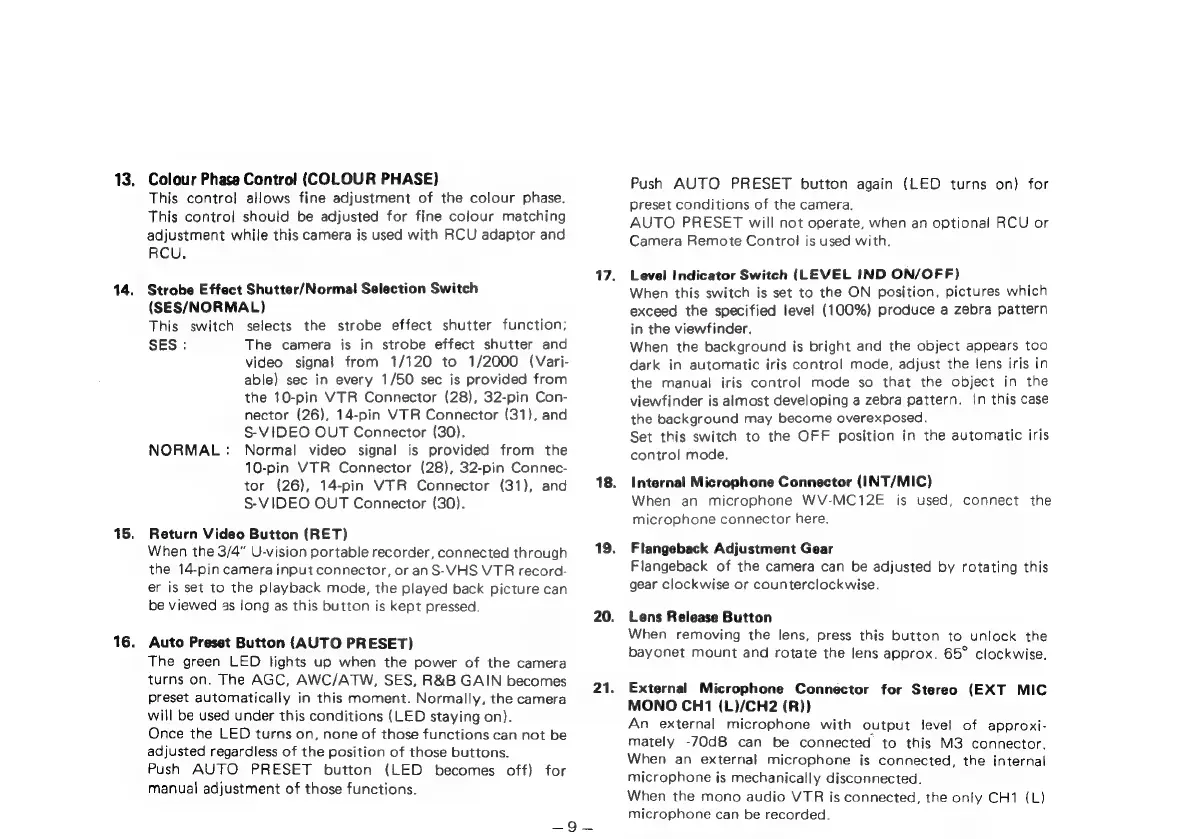

Colour Phase Control (COLOUR PHASE)
This contro] allows fine adjustment of the colour phase.
This control should be adjusted for fine colour matching
adjustment while this camera is used with RCU adaptor and
RCU.
Strobe Effect Shutter/Normal Selection Switch
(SES/NORMAL)
This switch selects the strobe effect shutter function;
SES: The camera is in strobe effect shutter and
video signal from 1/120 to 1/2000 (Vari-
able) sec in every 1/50 sec is provided from
the 10-pin VTR Connector (28), 32-pin Con-
nector (26), 14-pin VTR Connector (31), and
S-VIDEO OUT Connector (30).
Normal video signal is provided from the
10-pin VTR Connector (28), 32-pin Connec-
tor (26), 14-pin VTR Connector (31), and
S-VIDEO OUT Connector (30).
NORMAL :
Return Video Button (RET)
When the 3/4” U-vision portable recorder, connected through
the 14-pin camera input connector, or anS-VHS VTR record-
er is set to the playback mode, the played back picture can
be viewed as Jong as this button is kept pressed.
Auto Preset Button (AUTO PRESET)
The green LED lights up when the power of the camera
turns on. The AGC, AWC/ATW, SES, R&B GAIN becomes
preset automatically in this moment. Normally, the camera
will be used under this conditions (LED staying on).
Once the LED turns on, none of those functions can not be
adjusted regardless of the position of those buttons.
Push AUTO PRESET button (LED becomes off) for
manual adjustment of those functions.
17.
18.
19.
20.
21.
= Gink,
Push AUTO PRESET button again (LED turns on) for
preset conditions of the camera.
AUTO PRESET will not operate, when an optional RCU or
Camera Remote Control is used with.
Level Indicator Switch (LEVEL IND ON/OFF)
When this switch is set to the ON position, pictures which
exceed the specified level (100%) produce a zebra pattern
in the viewfinder,
When the background is bright and the object appears too
dark in automatic iris control mode, adjust the Sens iris in
the manual iris control mode so that the object in the
viewfinder is almost developing a zebra pattern. In this case
the background may become overexposed.
Set this switch to the OFF position in the automatic iris
contro! mode,
Internal Microphone Connector (INT/MIC)
When an microphone WV-MC12E is used, connect the
microphone connector here.
Flangeback Adjustment Gear
Flangeback of the camera can be adjusted by rotating this
gear clockwise or counterclockwise.
Lens Release Button
When removing the lens, press this button to unlock the
bayonet mount and rotate the lens approx. 65° clockwise.
External Microphone Connector for Stereo (EXT MIC
MONO CH1 (L)/CH2 (R))
An external microphone with output level of approxi-
mately -70dB can be connected to this M3 connector.
When an external microphone is connected, the internal
microphone is mechanically disconnected.
When the mono audio VTR is connected, the onty CH1 (L)
microphone can be recorded.
