Panasonic FP-7722

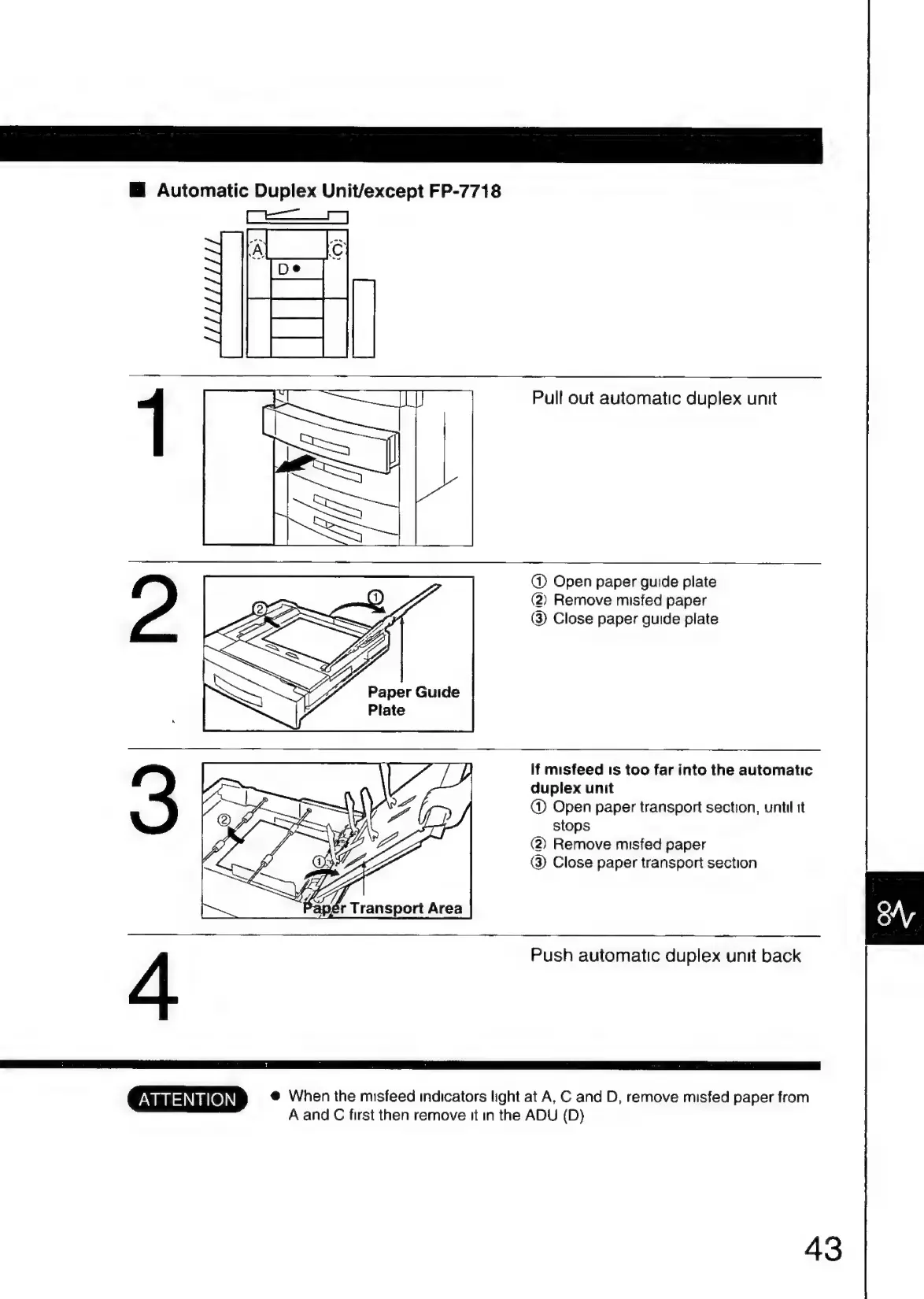

M@ Automatic Duplex Unit/except FP-7718
Pull out automatic duplex unit
@) Open paper guide plate
(2) Remove misfed paper
(3) Close paper guide plate
If misfeed is too far into the automatic
duplex unit
@ Open paper transport section, until it
stops
(2) Remove misfed paper
(3) Close paper transport section
|
Push
automatic
duplex
unit
back
ATTENTION @ When the misfeed indicators light at A, C and D, remove misfed paper from
A and C first then remove it in the ADU (D)
43
