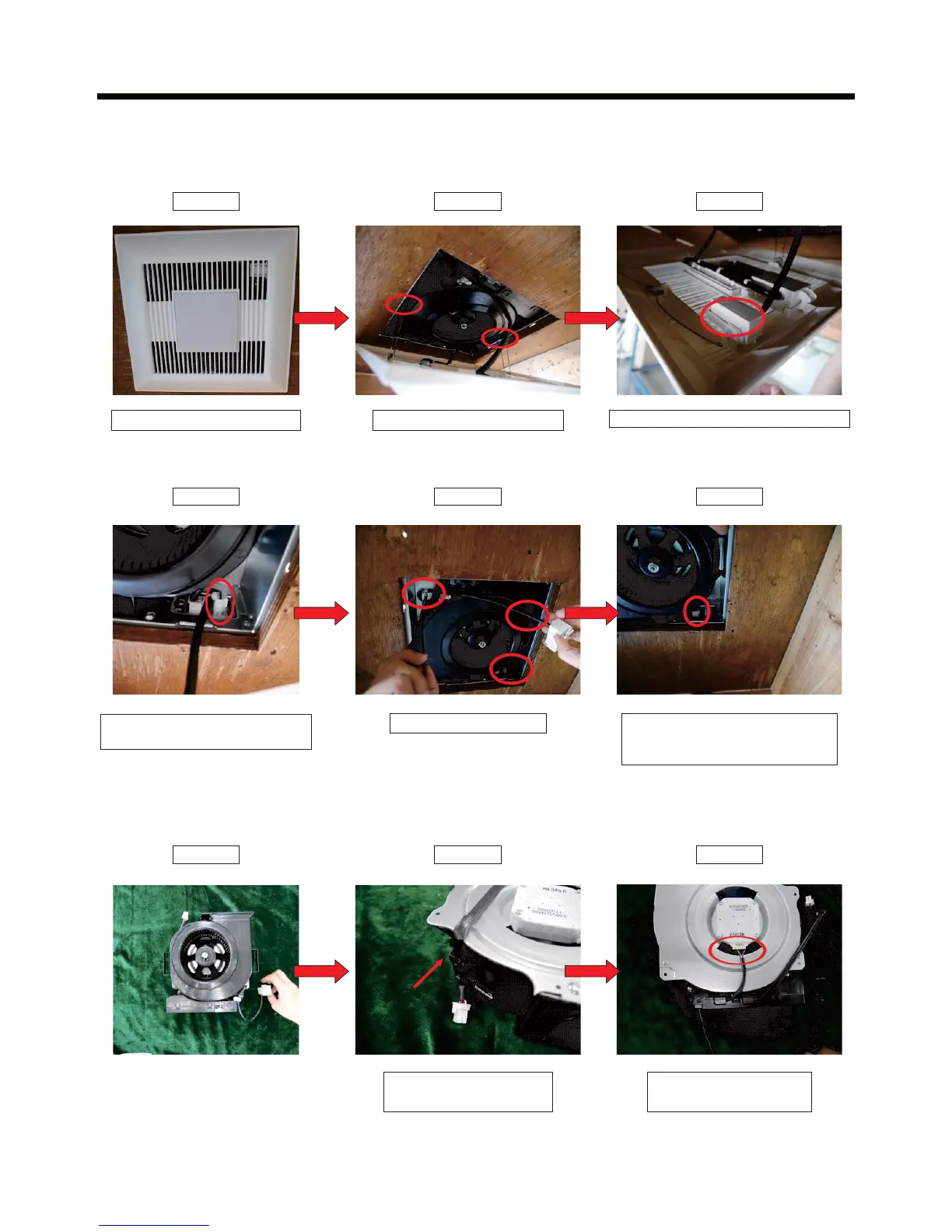

Replace Motor Assy Method
(Only for FV-0510VSCL1 reference)
Remove the louver spring
Step 1. Step 2.
Remove 3pcs screws
Step 3.
Remove the humidity sensor assy
Haul down the louver assy
Step 4. Step 5. Step 6.
Unplug power lead connector,
Then take out the casing unit
from the frame assy
Step 7. Step 8. Step 9.
Pull out the motor lead
from motor assy
()Clamp
Pull out the power lead
from casing clamp
2. Parts Identification
12
Unplug led unit connector ,
Then take out the louver assy
To Next Page
