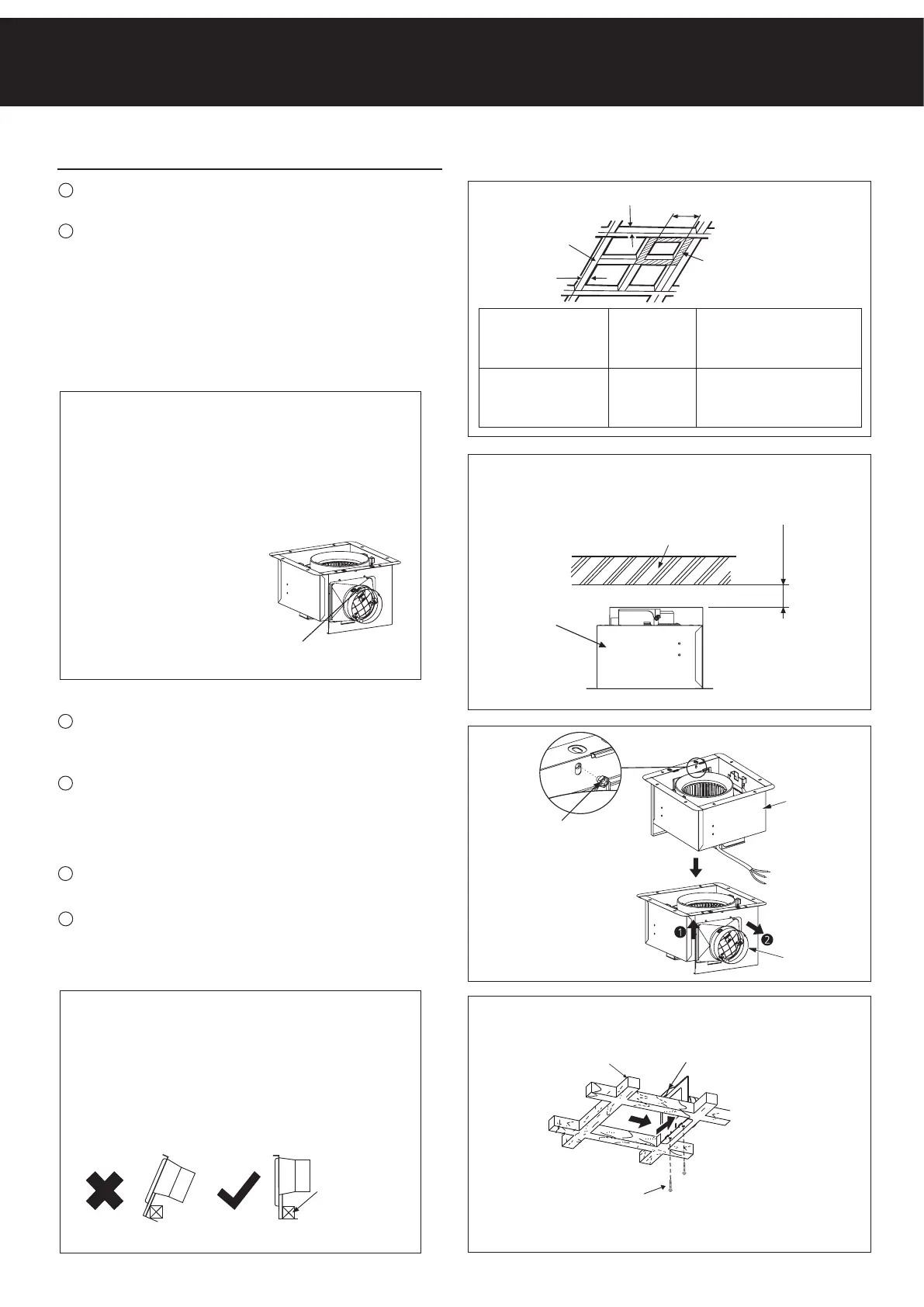

Panasonic FV-17CU8 - HOW TO INSTALL; Fan body installation Method 1 with wooden joist

7
The distance between the top of fan body and ceiling
should not be less than 20 mm. (Fig.2)
Remove the screw bag from adaptor assembly
before installation as shown below.
Adaptor assembly should not fix at an angle.
Model No.
FV-17CU8
177±2 240±2
FV-24CU8 FV-24CD8
FV-24CH8
A Size (Square)
Unit : mm
Screw bag
Wooden frame
HOW TO INSTALL
1 Construct the wooden frame and attach it horizontally
to the wooden joist. (Fig.1)
2 Remove one hexagon screw that is fixed adaptor
assembly and fan body, then remove the adaptor
assembly. (Fig.3)
3 Fix the adaptor assembly on wooden frame with
2 self-tapping screws of Φ4.2x20. (Fig.4)
Wooden frame
Adaptor assembly
Self-tapping screw Φ4.2x20 (2 PCS)
IMPORTANT
30 mm
25〜30 mm
□A
Wooden joist
Wooden frame
1. Fan body installation Method 1 install with wooden joist.
Remove the hexagon screw
Fan body
Adaptor
assembly
Ceiling
At least 20 mm
Fan body
CARA MEMASANG
1. Metode 1 pemasangan badan kipas menggunakan kasau kayu.
1 Buat rangka kayu dan pasang secara mendatar ke
kasau kayu. (Gb. 1)
Jarak antara bagian teratas badan kipas dan
langit-langit tidak boleh kurang dari 20 mm. (Gb. 2)
PENTING
IMPORTANT
PENTING
Lepas kantong sekrup dari rangkaian adaptor
sebelum dipasang, seperti pada gambar berikut.
Kantong sekrup
2 Lepas satu sekrup segienam yang terpasang di
rangkaian adaptor dan badan kipas, lalu lepas
rangkaian adaptor. (Gb. 3)
Φ
3 Pasang rangkaian adaptor di rangka kayu dengan
2 sekrup berukuran 4.2x20. (Gb. 4)
Rangkaian adaptor tidak boleh dipasang miring.
Rangka kayu
Kasau kayu
Rangka kayu
Satuan : mm
Ukuran A (Persegi)
Langit-langit
Min. 20 mm
Fig.1 /
Gb.1
Fig.2 /
Gb.2
Fig.3 /
Gb.3
Fig.4 /
Gb.4
Lepas sekrup segienam
Sekrup Φ4.2x20 (2 BUAH)
Rangka kayu
Rangkaian adaptor
Badan kipas
Badan kipas
Rangkaian
adaptor
