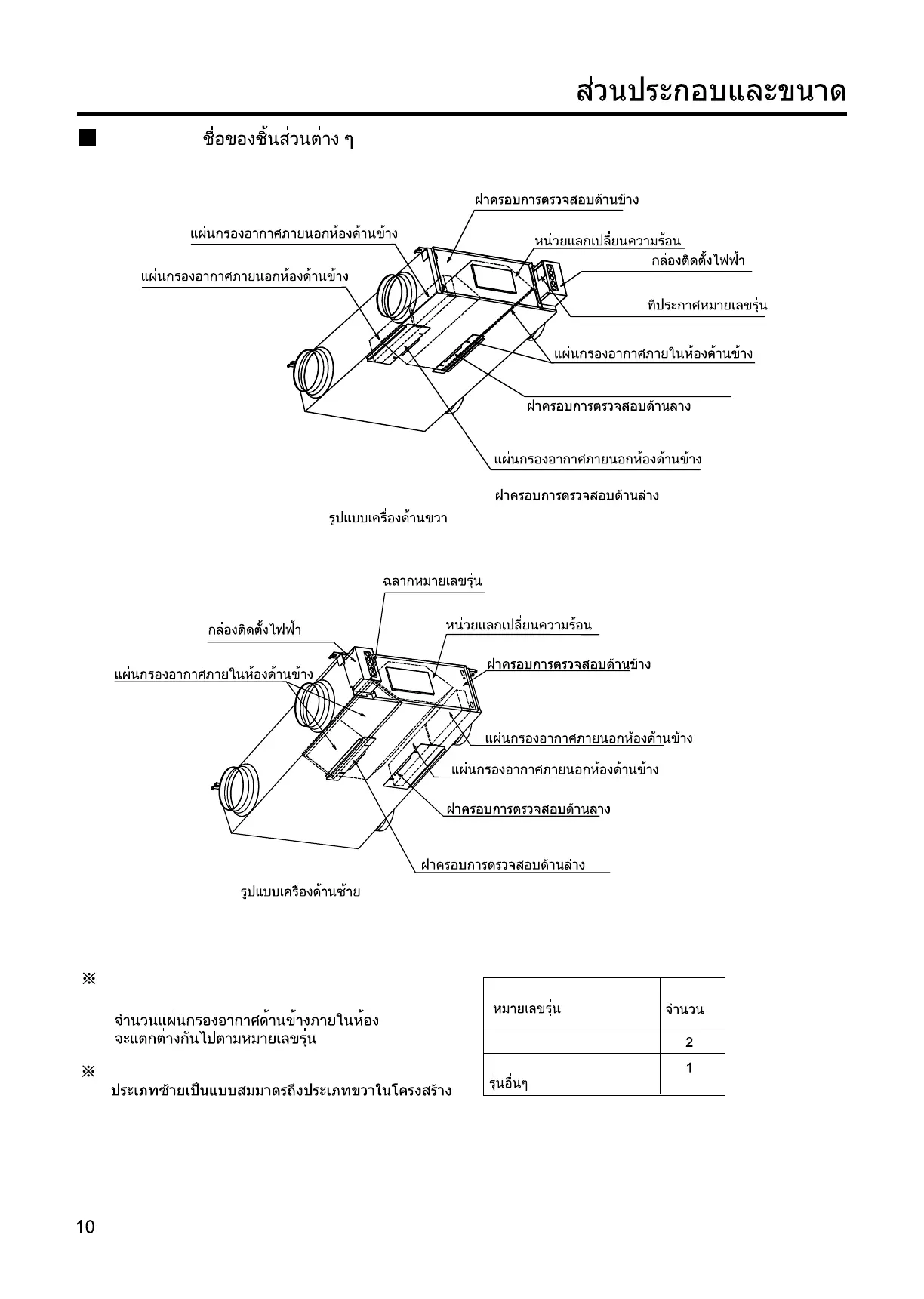

PART NAME AND DIMENSIONS
Part Name
outdoor filter
outdoor filter
indoor filter
model label
switch box
bottom inspection cover
bottom inspection cover
side inspection cover
heat exchange core
FY-E**PM1(right type)
FY-E**PM1( )
model label
switch box
side inspection cover
outdoor filter
outdoor filter
bottom inspection cover
indoor filter
heat exchange core
bottom inspection cover
FY-E**PM1L(left type)
FY-E**PM1L( )
Model
Quantity
Other model
FY-E35PM1 FY-E35PM1L
1 The amount of indoor filter is different owing
to model difference.
2 Left type is symmetric to right type in structure.
outdoor filter
