Panasonic HDC-TM700 - Parts Identification and Handling; HDC-HS700 Components

12
VQT2N56

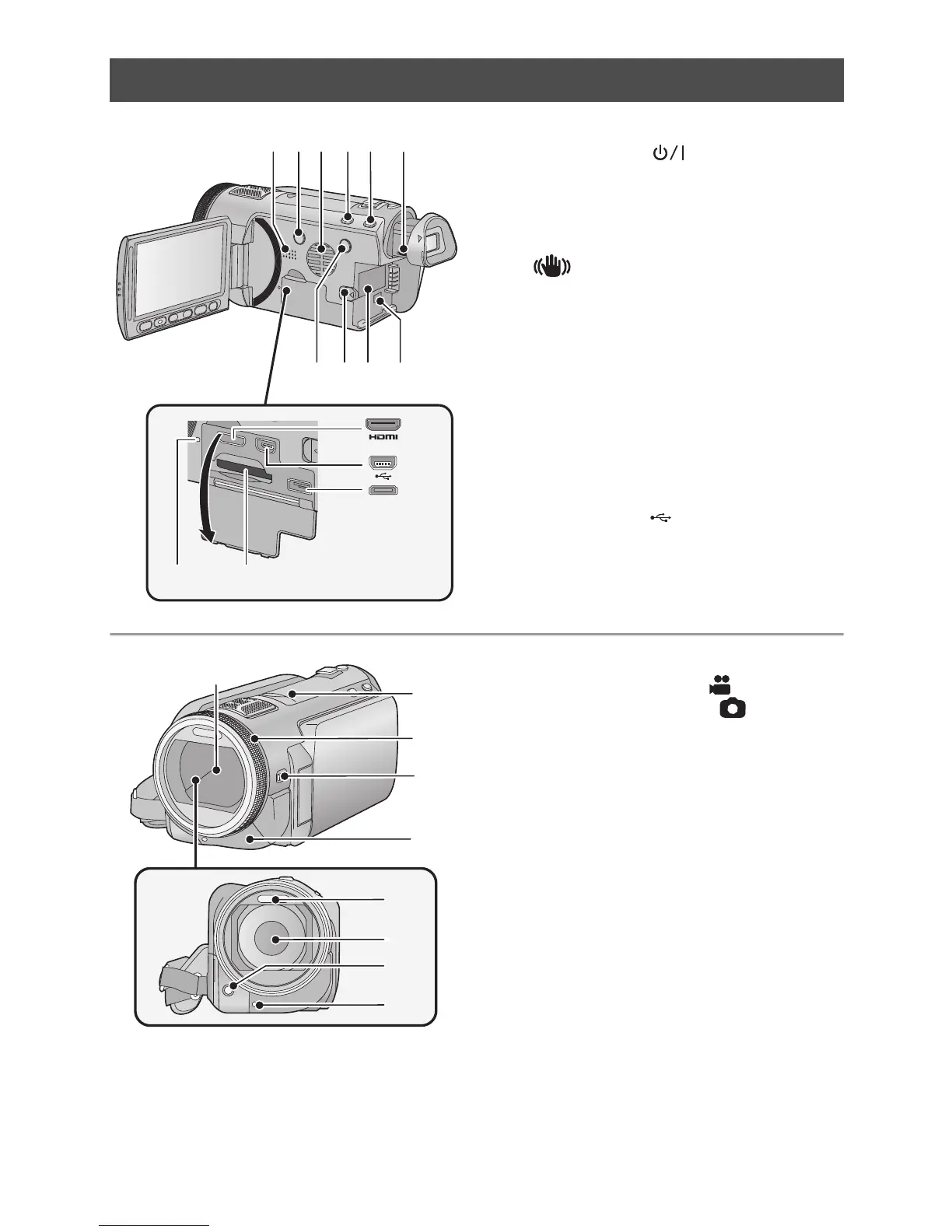

1 Speaker
2 Power button [ ] (l 22)
3 Inlet (cooling fan) (l 26)
4 Intelligent auto/Manual button
[iA/MANUAL] (l 32, 75)
5 Optical image stabilizer button
[ /O.I.S.] (l 50)
6 Eyepiece corrector dial (l 24)
7 1080/50p button [1080/50p] (l 52)
8 Battery release lever [BATT] (l 16)
9 Battery holder (l 16)
10 DC input terminal [DC IN] (l 19)
≥ Always use the supplied AC adaptor or a
genuine Panasonic AC adaptor
(VW-AD21E-K; optional).
11 HDMI mini connector [HDMI]
(l 95, 99)
12 USB terminal [ ] (l 104, 119)
13 AV multi connector (l 95, 110)
≥
Use the AV multi cable (only the supplied cable).
14 Card slot (l 21)
15 Access lamp [ACCESS] (l 21)
16 Lens cover
≥ The lens cover opens in motion
picture recording mode or still picture
recording mode. (l 23)
17 Accessory shoe (l 150)
18 Multi manual ring (l 75, 78)
19 Camera function button
[CAMERA FUNCTION] (l 75)
20 Remote control sensor (l 48)
21 Built-in flash (l 55)
22 Lens (LEICA DICOMAR)
≥ Please refer to page 26 for details about
attaching the lens hood.
23 AF assist lamp (l 74)
24 Recording lamp (l 42)
[HDC-HS700]
1089
23 45 6
7
1
11
12
13
1415
16
18
17
19
20
21
22
23
24
