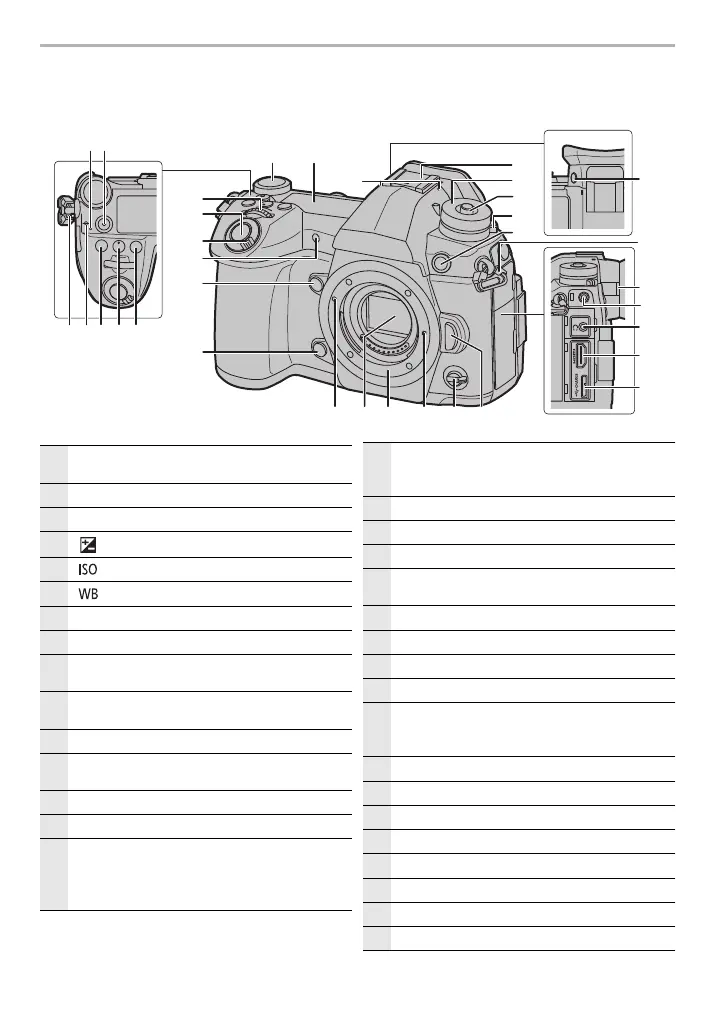

Names and Functions of Components
∫ Camera body
30 2933 3132
10
25
28
15
14
13
7
9
11
12
8
26
24
23
27
20
18
19
1
4
2
322 5 6
22
17
16
21
1
Charging lamp (P18)/
WIRELESS connection lamp (P90)
2
Motion picture button (P65)
3
Focus distance reference mark
4
[ ] (Exposure Compensation) button (P44)
5
[ ](ISO sensitivity) button (P45)
6
[ ](White Balance) button (P46)
7
Front dial (P23)
8
Shutter button (P22)
9
Camera ON/OFF switch (P20)/
Status LCD backlight dial (P23)
10
Self-timer indicator/
AF Assist Lamp
11
Function button (Fn4) (P32)
12
Preview button (P26)/Function button (Fn5)
(P32)
13
Rear dial (P23)
14
Status LCD (P110)
15
Stereo microphone
• Be careful not to cover the microphone with
your finger. Doing so may make sound difficult
to record.
16
Hot shoe (Hot shoe cover) (P64)
• Keep the hot shoe cover out of reach of
children to prevent swallowing.
17
Mode dial (P25)
18
Mode dial lock button (P25)
19
Drive mode dial (P48)
20
Flash synchro socket
(Flash synchro socket cap)
21
[V.MODE] button (P21)
22
Shoulder strap eyelet (P15)
23
Diopter adjustment dial (P21)
24
[MIC] socket
25
Headphone socket
• Excessive sound pressure from earphones
and headphones can cause hearing loss.
26
[HDMI] socket (P102)
27
[USB/CHARGE] socket (P104)
28
Lens release button (P19)
29
Function lever (P24)
30
Lens lock pin
31
Mount
32
Sensor
33
Lens fitting mark (P19)
