Preparation/Basic “Quick Start Guide”
15
(ENG) DVQX1123
6
Extend the lens barrel
[When the interchangeable lens (H-FS12032) is
used]

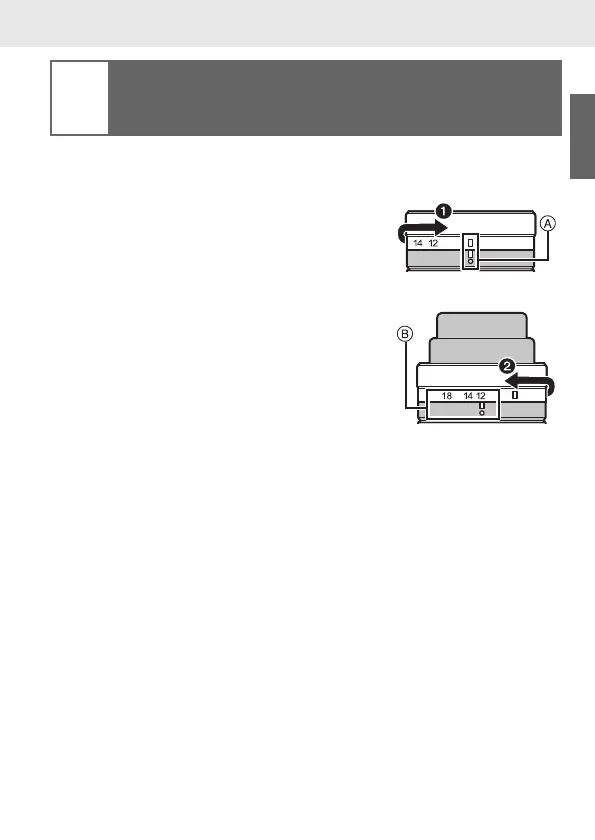

∫ How to Extend the Lens
Rotate the zoom ring in the direction of arrow
1
from
position A (the lens is retracted) to position B
[12 mm to 32 mm (H-FS12032)] to extend the lens.
• When the lens barrel is retracted, images cannot be
recorded.
C The lens is retracted
∫ How to Retract the Lens
Rotate the zoom ring in the direction of arrow
2
from
position B [12 mm to 32 mm (H-FS12032)] to
position A to retract the lens.
• The zoom ring will seem to click into the 12 mm position
(H-FS12032), but continue to rotate the lens until it
reaches position A.
• When you are not recording images, we recommend
that you retract the lens.
D The lens is extended
Example: H-FS12032
DC-GX800EB-DVQX1123_eng.book 15 ページ ２０１６年１２月１日 木曜日 午後５時４９分
