Names and Functions of Components

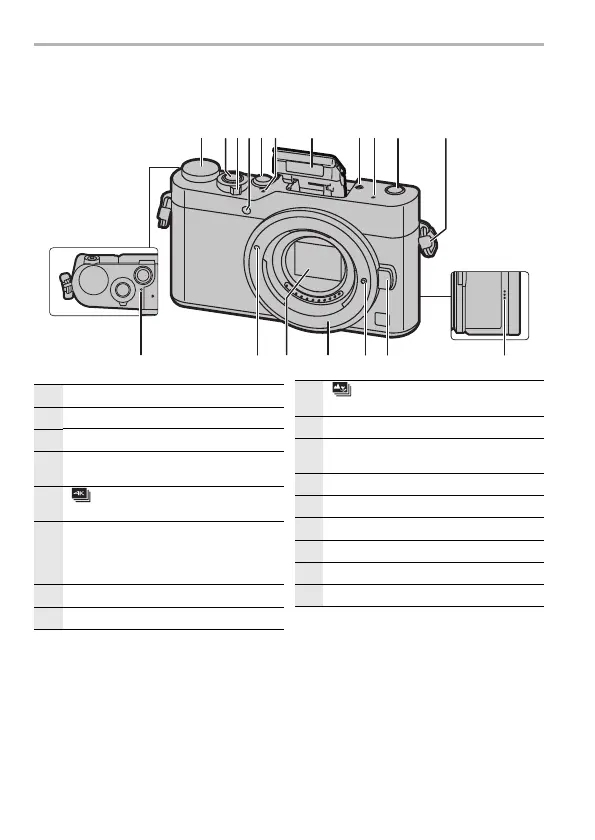

∫ Camera body
1 45 76632 8 9
15 1612 1413
1711
10
1
Mode dial (P23)
2
Shutter button (P17)
3
Camera ON/OFF switch (P14)
4
Self-timer indicator/
AF Assist Lamp
5
[ ] (4K photo mode) button (P36)/
[Fn1] button (P27)
6
Stereo microphone
• Be careful not to cover the microphone
with your finger. Doing so may make
sound difficult to record.
7
Flash
8
Focus distance reference mark
9
[ ] (Post Focus) button (P39)/
[Fn3] button (P27)
10
Shoulder strap eyelet (P10)
11
Charging lamp (P12)/
Wi-Fi
®
connection lamp (P59)
12
Lens fitting mark (P13)
13
Sensor
14
Mount
15
Lens lock pin
16
Lens release button (P13)
17
Speaker
