Panasonic LUMIX DMC-FZ7

Preparation
10
VQT0V63

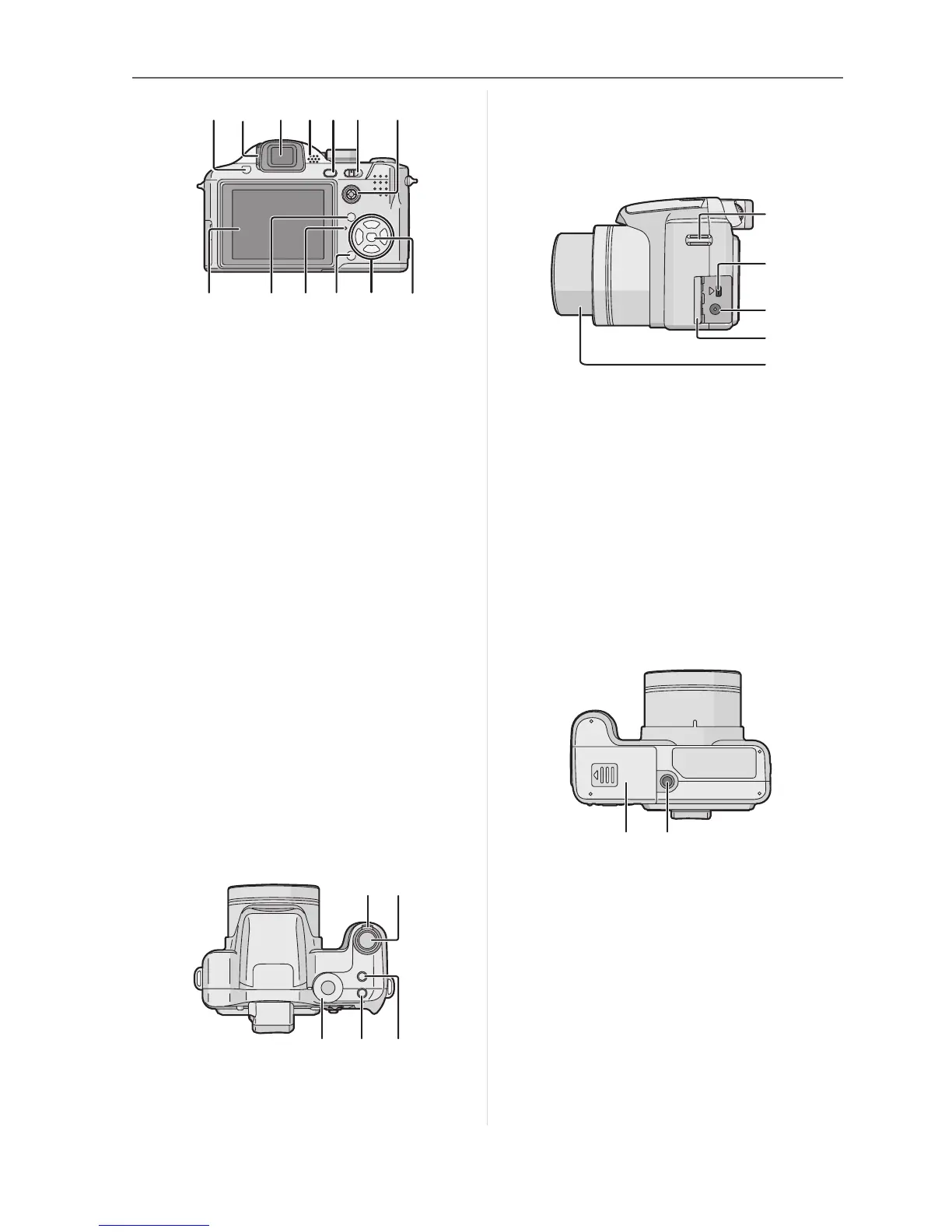

5 Flash open button (P42)
6 Diopter adjustment dial (P39)
7 Viewfinder (P38, 106)
8 Speaker (P73)
9 [EVF/LCD] button (P38)
10 Camera ON/OFF switch (P11)
11 Joystick (P26, 35, 36, 53, 54)
12 LCD monitor (P38, 106)
13 [DISPLAY/LCD MODE] button (P38,
106)
14 Status indicator (P25)
15 Single or burst mode button (P50)/
Delete button (P36)
16 Cursor buttons
2/Self-timer button (P46)
4/[REV] button (P34)
1/Flash Setting button (P42)
3 /Exposure compensation (P47)/Auto
bracket (P48)/White balance fine
adjustment (P76)/Flash output adjustment
(P45)/Backlight compensation in simple
mode (P30) button
17 [MENU/SET] button (P20)
18 Zoom lever (P31)
19 Shutter button (P25, 68)
20 Mode dial (P5)
21 AF/MF button (P54)
22 Optical image stabilizer button (P49)
23 Strap eyelet (P16)
24 [DIGITAL/AV OUT] Socket (P98, 100,
104)
25 [DC IN] Socket (P98, 100)
• Always use a genuine Panasonic AC
adaptor (DMW-AC7; optional).
• The camera cannot charge the battery
even if the AC adaptor (DMW-AC7;
optional) is connected.
26 Terminal door
27 Lens Barrel
28 Card/Battery door (P13, 14)
29 Tripod receptacle
• When you use a tripod, make sure it is
stable when the camera is attached to
it.
