Preparation
9
VQT1C39
)

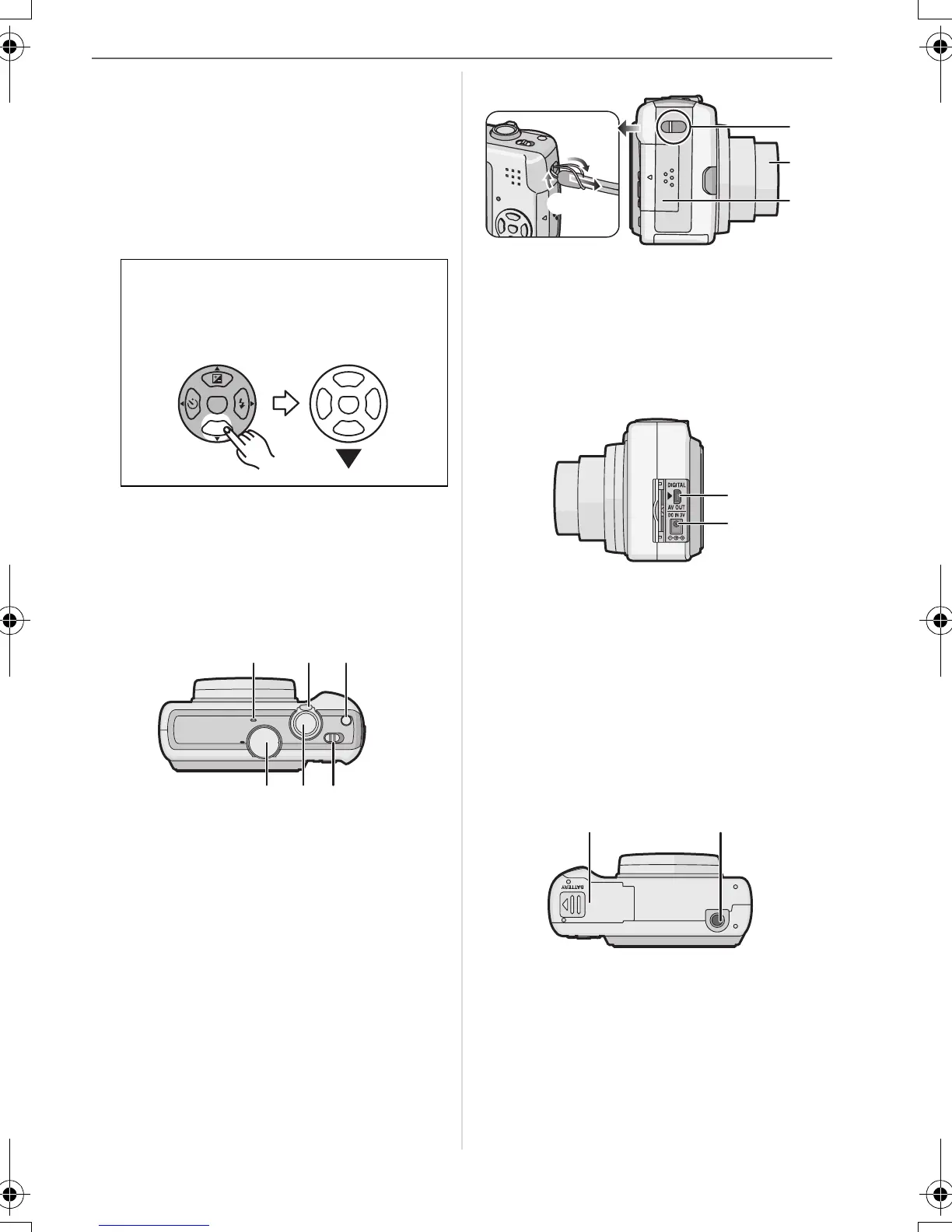

6 Cursor buttons
2/Self-timer button (P42)
4/[REV] button (P32)
1/Flash setting button (P38)
3/Exposure compensation (P43)/White
balance fine adjustment (P61)/Backlight
compensation in simple mode button
(P28)
7 [MENU/SET] button (P20)
8 [DISPLAY] (P35)/[HIGH ANGLE] (P37)
button
9 [FUNC] (P59)/Delete (P33) button
10 Microphone (DMC-LZ7) (P53)
11 Zoom lever (P29)
12 [E.ZOOM] button (P30)
13 Mode dial (P18)
14 Shutter button (P24, 53)
15 Camera ON/OFF switch (P10, 17)
16 Strap eyelet
• When detaching the strap, untie the
knot in the string with a pointed object
and then detach it.
17 Lens barrel
18 Card door (P15)
19 [DIGITAL/AV OUT] socket
(DMC-LZ7)
[DIGITAL/V.OUT] socket
(DMC-LZ6)
(P85, 88, 92)
20 [DC IN] socket (P85, 88)
• Always use a genuine Panasonic AC
adaptor (DMW-AC6PP; optional).
21 Battery door (P15)
22 Tripod receptacle
• When you use a tripod, make sure the
tripod is stable when the camera is
attached to it.
In these operating instructions,
operations using the cursor button
are described with illustrations below.
e.g.: When you press the 4 button
REV
MENU
SET
10 11 12
13 1514
1
1
1
2
1
19
20
21 22
VQT1C39ENG.book 9 ページ ２００６年１２月２１日 木曜日 午前１０時５７分
