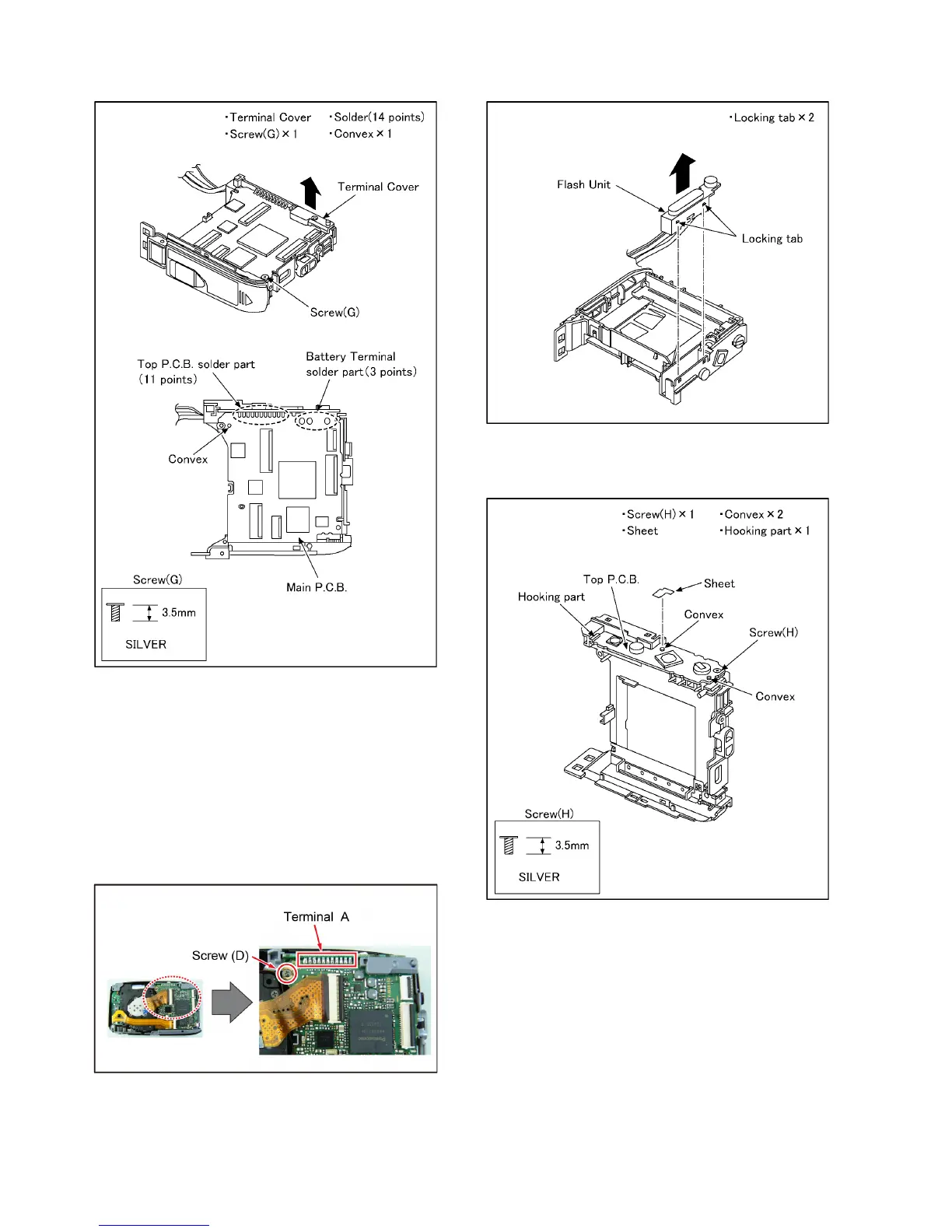

8.3.8. Removal of the Main P.C.B.
(Fig. D12)
[WHEN ASSEMBLING]
CAUTION: Before soldering the Terminal A (Connecting
part of Main P.C.B. and Top P.C.B.)
Before soldering the Terminal A, make sure to tighten the
"Screw (D)" first in order to eliminate the gap between Main
P.C.B. and Battery Case Unit. Otherwise, soldered terminal A
part may be damaged after assembling.
NOTE:
Since the screw (D) is for fixing the frame plate, the screw
(D) has to be removed once, after soldering.
8.3.9. Removal of the Flash Unit
(Fig. D13)
8.3.10. Removal of the Top P.C.B.
(Fig. D14)
