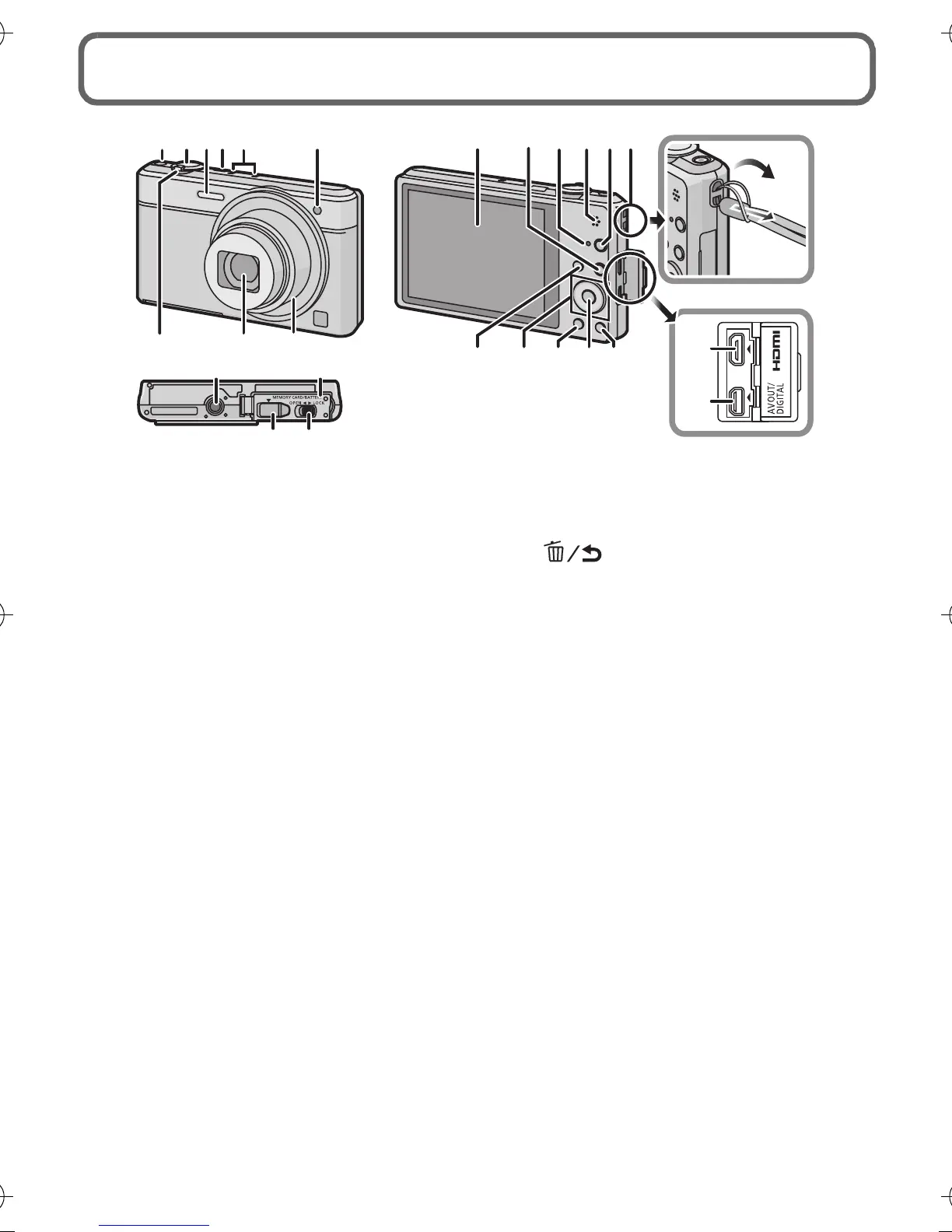

Names and Functions of Main Parts
1 Motion picture button
2 Shutter button
3Flash
4 Camera [ON/OFF] button
5 Microphone
6 Self-timer indicator
AF Assist Lamp
7 Zoom lever
8Lens
9 Lens barrel
10 LCD monitor
11 [(] (Playback) button
12 Charging lamp
Wi-Fi
®
connection lamp
13 Speaker
• Be careful not to cover the speaker
with your finger. Doing so may make
sound difficult to hear.
14 [Wi-Fi] button
15 Strap eyelet
• Be sure to attach the strap when
using the camera to ensure that you
will not drop it.
16 [MODE] button
17 Cursor buttons
18 [DISP.] button
19 [MENU/SET] button
20 [Q.MENU] button/
[ ] (Delete/Cancel) button
21 [HDMI] socket
• Do not connect with any cable other
than an HDMI micro cable
(RP-CHEU15: optional). Doing so
may cause malfunction.
22 [AV OUT/DIGITAL] socket
• This socket is also used when
charging the battery.
23 Tripod mount
• A tripod with a screw length of 5.5 mm
or more may damage this unit if
attached.
24 Card/Battery door
25 DC coupler cover
• When using an AC adaptor
(DMW-AC5G: optional), ensure that
the Panasonic DC coupler
(DMW-DCC13: optional) and AC
adaptor are used.
• Always use a genuine Panasonic AC
adaptor (DMW-AC5G: optional).
26 Release lever


1
789
25 26
201716 18
23
465141510
23 24
11 12 13
19
21
22
