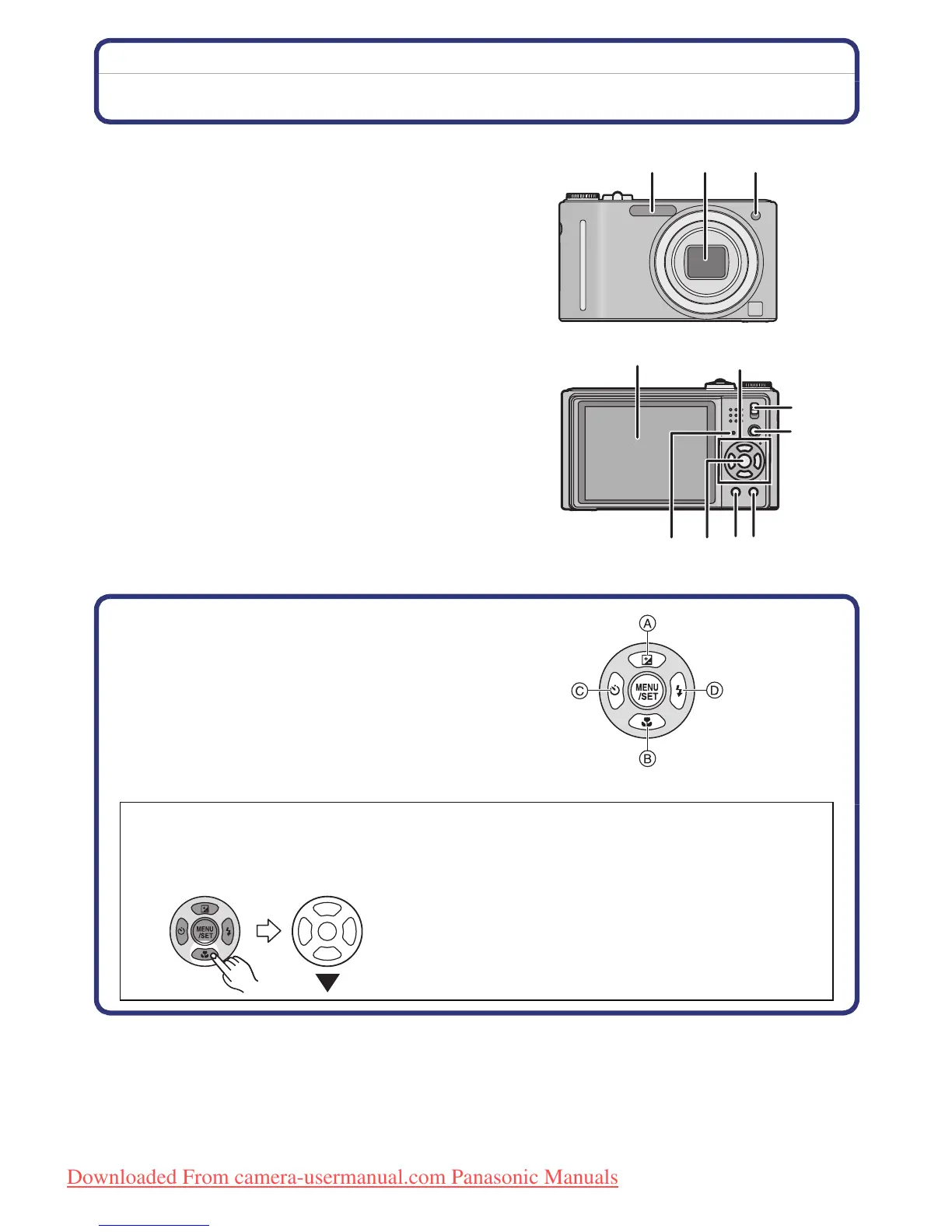

Names of the Components
1Flash (P56)
2 Lens (P154)
3 Self-timer indicator (P63)
AF assist lamp (P107)
4 LCD monitor (P54, 150)
5 Status indicator (P15, 26, 38)
6 [MENU/SET] button (P18)
7 [DISPLAY] button (P54)
8 [Q.MENU] (P23)/Delete (P52) button
9 [REC]/[PLAYBACK] selector switch
(P20)
10 [E.ZOOM] button (P48)
11 Cursor buttons
A: 3/Exposure compensation (P64)/
Auto Bracket (P65)/White balance
fine adjustment (P97)
B: 4/Macro Mode (P61)
AF Tracking (P41, 100)
C: 2/Self-timer button (P63)
D: 1/Flash setting button (P56)
In these operating instructions, the cursor buttons are described as shown in the
figure below or described with 3/4/2/1.
e.g.: When you press the 4 (down) button
or Press 4
123
10
4
9
5786
11
