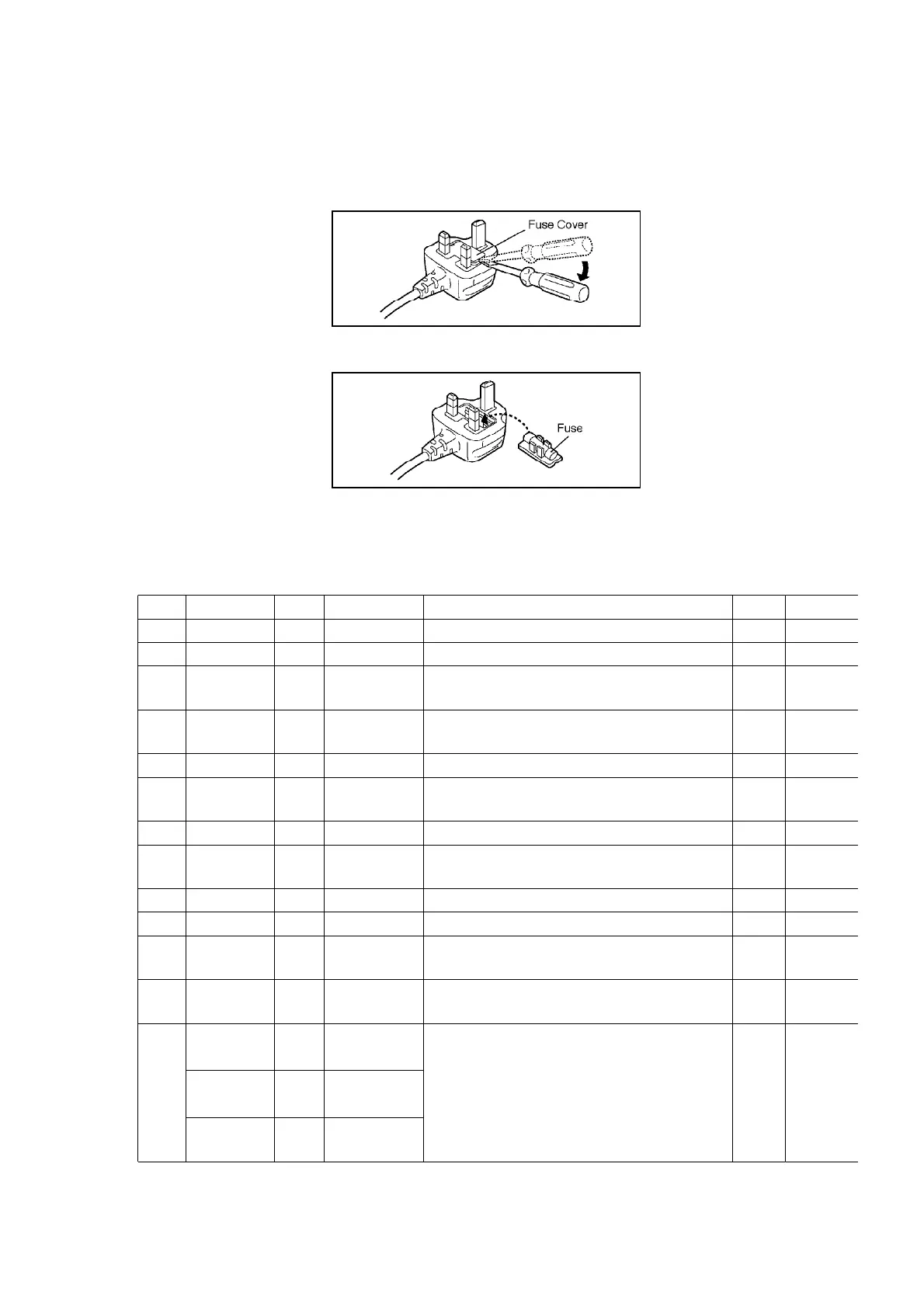

2.2.3. How to replace the Fuse
1. Remove the Fuse Cover with a screwdriver.
2. Replace the fuse and attach the Fuse cover.
3. SERVICE INFORMATION
3.1. Service Extension Cables
No. Part No. Pin Part Name Connection Q'ty
Remarks
1 VFK1460 20 Flat Cable PS201 (Camera/Power) - PS291 (CCD) 1
2 VFK1443 18 Flat Cable FP701 (Camera/Power) - Lens Flex. 1
3 VFK1311 80 Flat Cable PP301 (Camera/Power) - PS3001 (VTR
Main)
1
4 VFK1365 70 Flat Cable PP302 (Camera/Power) - PS3002 (VTR
Main)
1
5 VFK1467 12 Flat Cable P101 (Camera/Power) - P1201 (RS232C) 1
6 VFK0977 20 Flat Cable FP303 (Camera/Power) - Camera
Operation Unit
1
7 VFK1443 18 Flat Cable FP3501 (VTR Main) - FP801 (EVF-B) 1
8 VFK1387 30 Flat Cable PP4802 (VTR Main) - PS4902 (Speaker
Amp)
1
9 VFK1367 50 Flat Cable PP2001 (VTR Main) - PS2001 (Drive) 1
10 VFK1284 24 Flat Cable FP3201 (VTR Main) - Head Amp 1
11 VFK1173 14 Flat Cable FP6002 (VTR Main) - FP6701 (Rear
Operation)
1
12 VFK1464 7 Flat Cable FP6001 (VTR Main) - FP6801 (Top
Operation)
1
13
VFKW0F0189
10
Attachement
Connecor
FP3504 (VTR Main) - PS1201 (RS232C) 1
VFKW0F0190
10
Attachement
Connecor
VFKW0F0001
28 Common
Cable
4
