Disassembly Procedures)

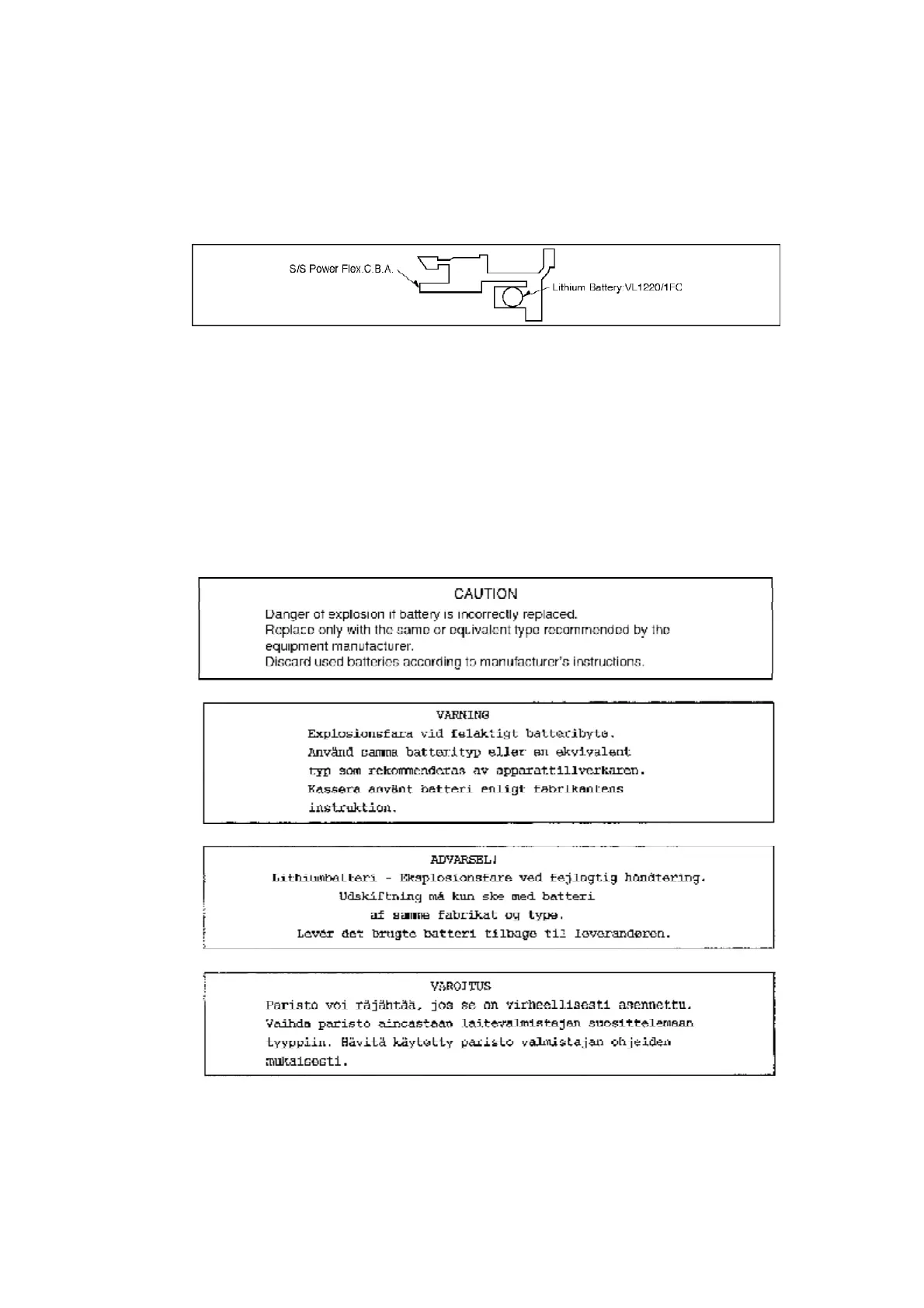

2. Unsolder the Lithium Battery "VL1220/1FC" and then replace the
new one. (See Fig. B1)
<Fig.B1>
Note:
The lithium battery is a critical component (Type No.: VL1220/1FC Manufactured by Panasonic.)
/ It must never be subjected to excessive heat or discharge. / It must therefore only be fitted in
equipment designed specifically for its use. / Replacement batteries must be of the same type
and manufacture. / They must be fitted in the same manner and location as the original battery,
with the correct polarity contacts observed. / Do not attempt to re-charge the old battery or re-
use it for any other purpose. / It should be disposed of in waste products destined for burial
rather than incineration.
4. GENERAL DESCRIPTIONS
