5. ADJUSTMENT PROCEDURES

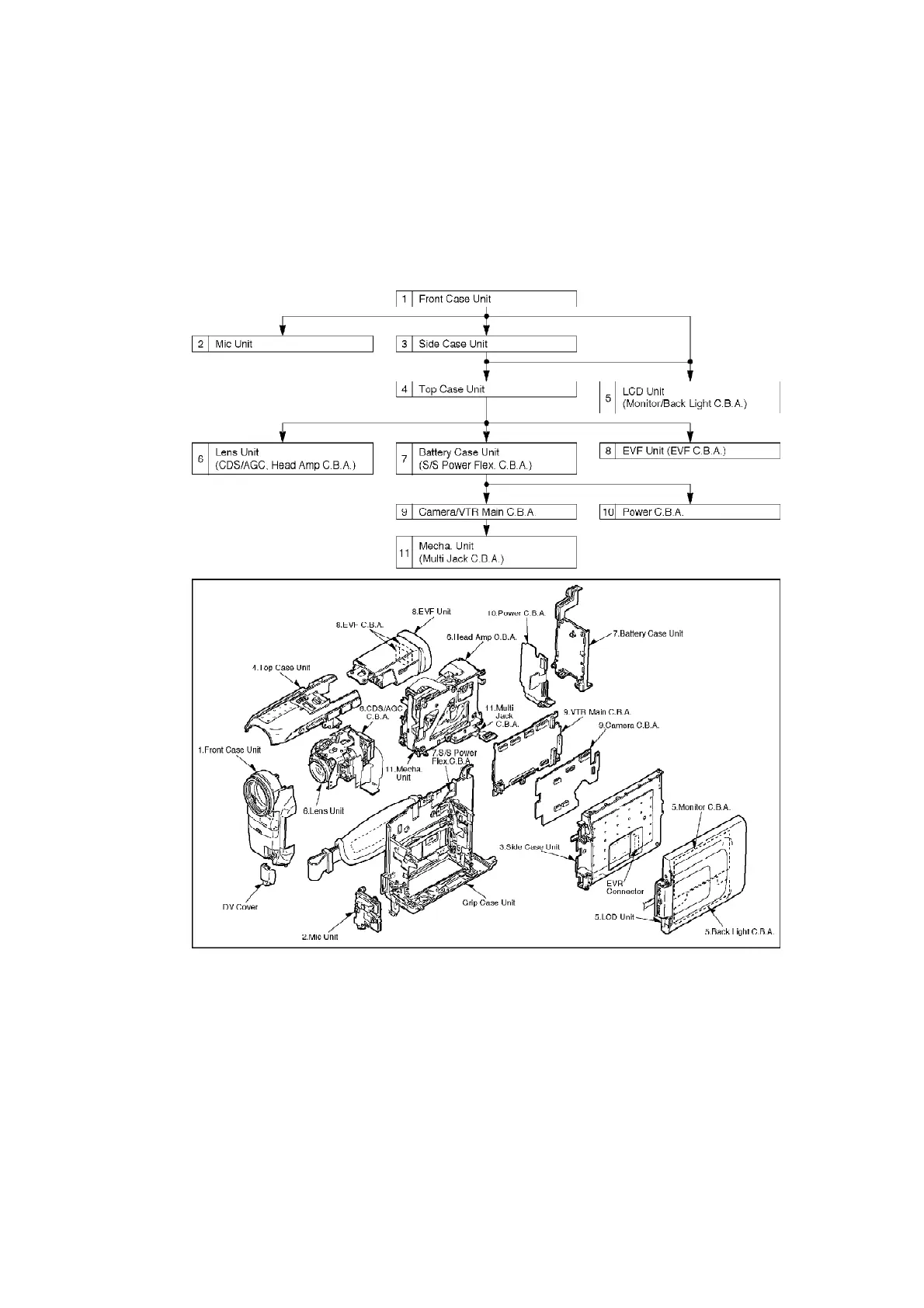

5.1. DISASSEMBLE FLOW CHART
This flow chart indicates the disassembly steps the cabinet parts, C.B.A. and Mechanism Unit in
order to access to items to be serviced. When reinstalling, perform the steps in the reverse
order.
<Fig.F1>
5.2. DISASSEMBLY PROCEDURES
Flow-chart Disassembly procedure
To Next Page
