8. ADJUSTMENT PROCEDURES
8.1. DISASSEMBLE FLOW CHART
This flow chart indicates the disassembly steps the cabinet parts, C.B.A. and Mecha. Unit in order to
access to be serviced. When reinstalling, perform the steps in the reverse order.

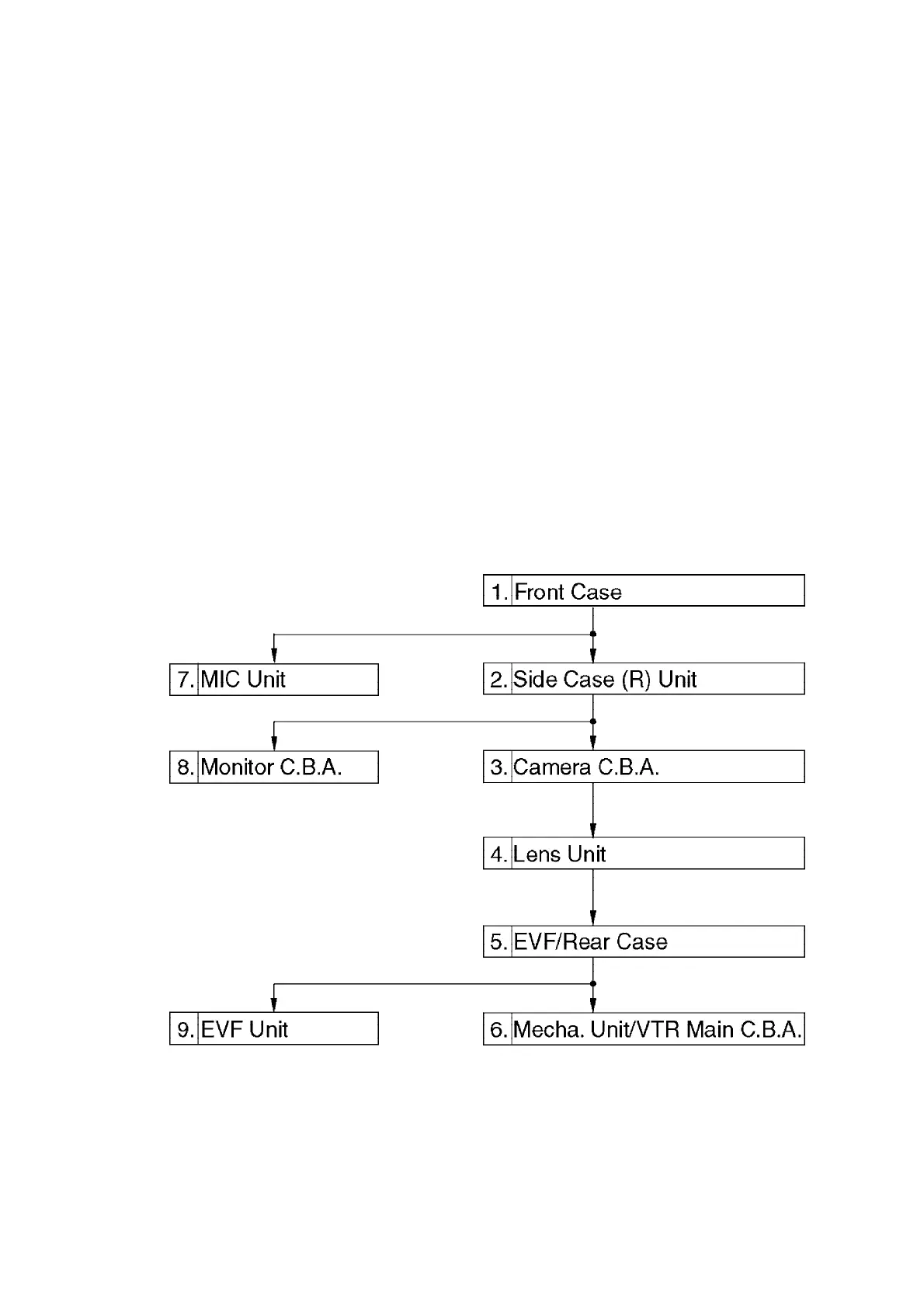

Fig. F1
