8.2. DISASSEMBLY PROCEDURES

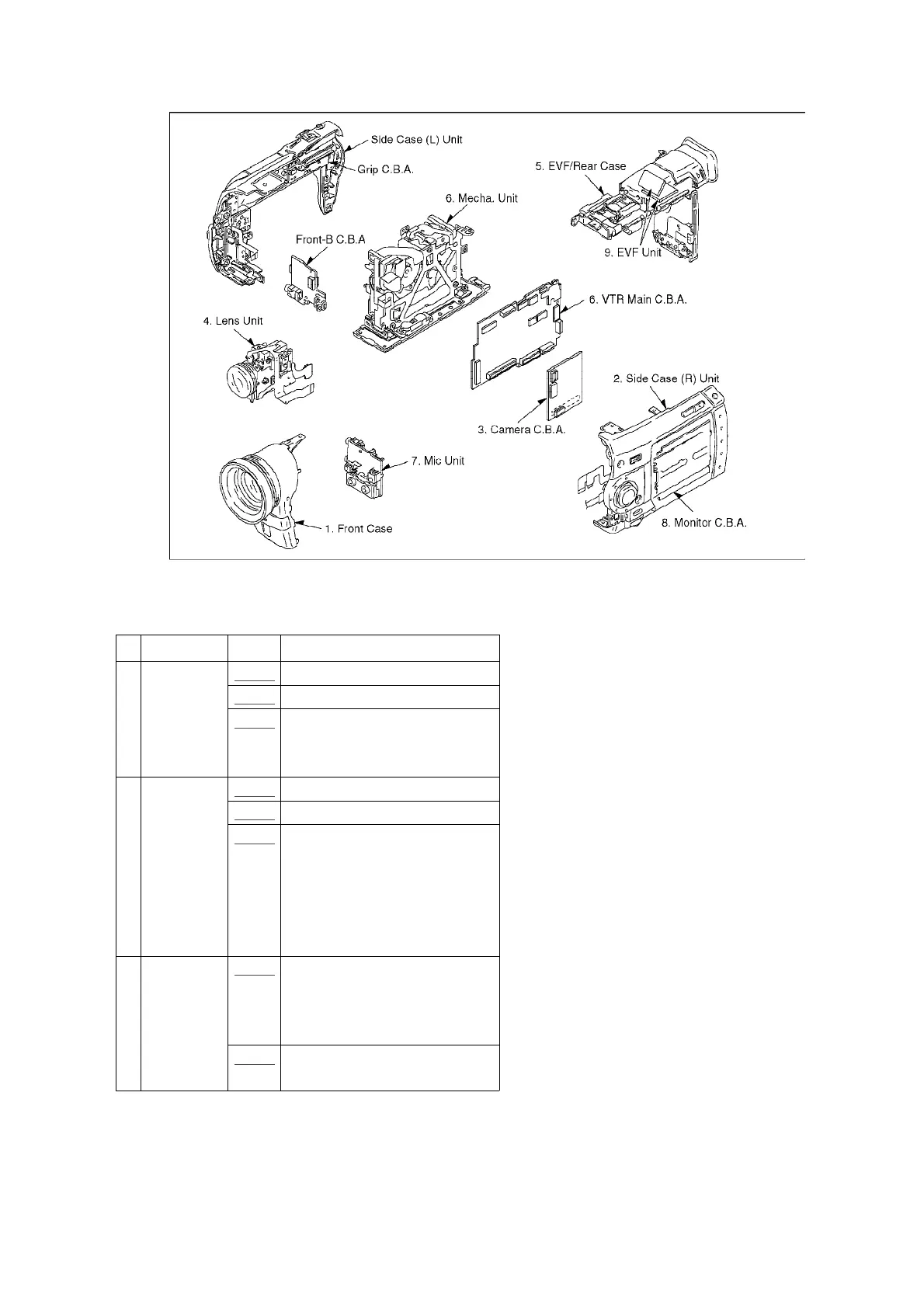

Flow-Chart for Disassembly Procedure
No.
Item/Part Fig. Removal (Screw& Other)
1. Front Case
Unit
Fig. 1 1-Screw (A)
Fig. 2 2-Screws (B/C)
Fig. 3 2-Screws (D/E)
Disconnect the FP4901.
Remove the Front Case Unit.
2. Side Case
(R)
Unit
Fig. 4 1-Screw (F)
Fig. 5 6-Screws (G)
Fig. 6 4-Screws (H/I/J/K)
Disconnect the following
connectors.
FP301/FP2206/FP601/FP602
Remove the Side Case (R)
Unit.
3. Camera
C.B.A
& Lens
Unit
Fig. 7 Disconnect the following
connectors.
PS201/FP701/PP301
Remove the Camera C.B.A..
Fig. 8 1-Screw (L)
Remove the Lens Unit.
