Panasonic NV-MX1 - Page 20

No.

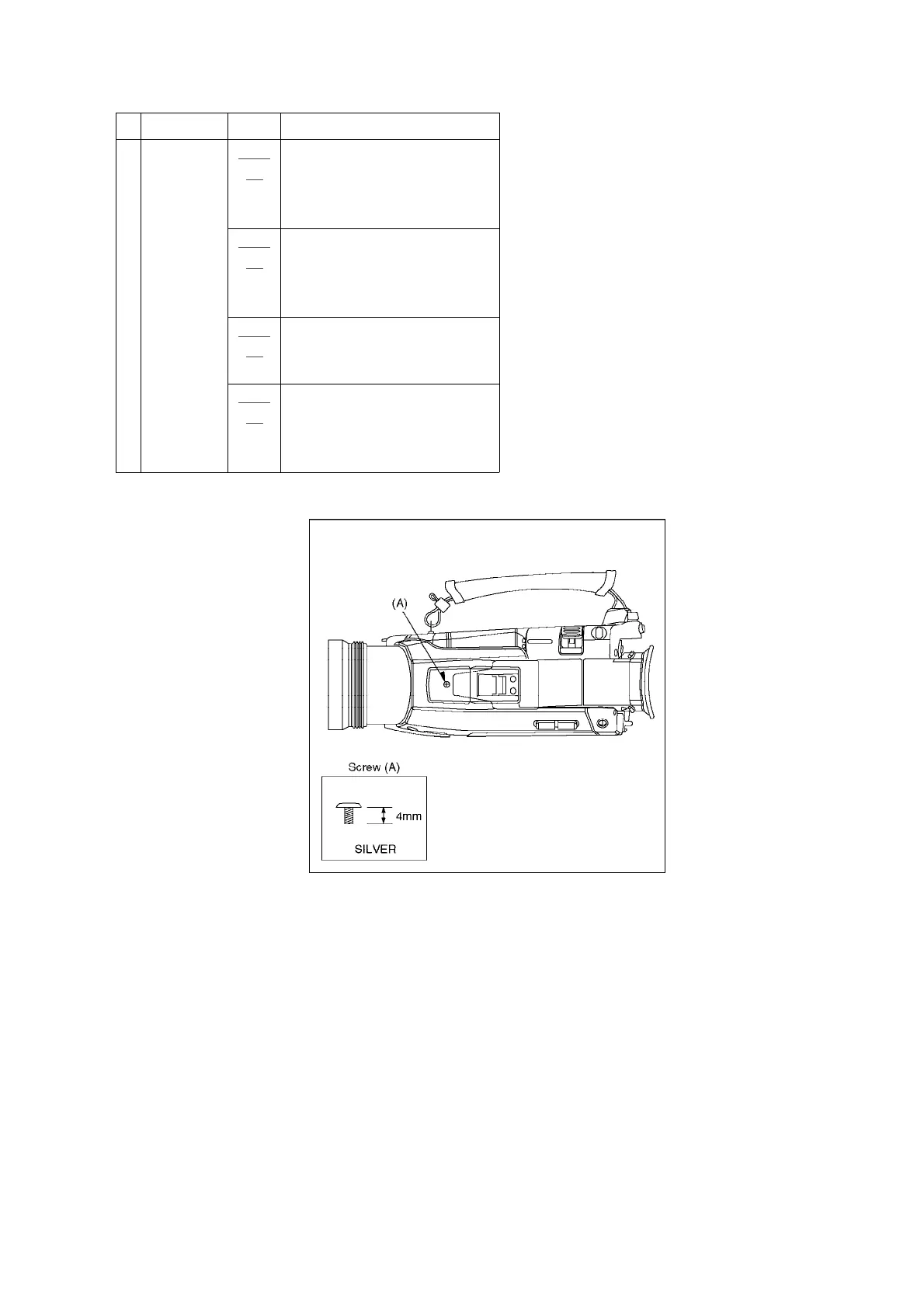

Item/Part Fig. Removal (Screw& Other)
9. EVF Unit Fig.
16
2-Screws (V).
Remove the EVF Unit from
Rear Case
Unit.
Fig.
17
Unlocks - (b)
Remove the Eye Cap Unit.
Remove the EVF Case
(Upper).
Fig.
18
Remove the EVF 1(U).....EVF
A/B
C.B.A
Fig.
19
Disconnect the FP801/FP802.
Unlocks - (c)
Remove the EVF-B C.B.A..
Fig. 1
Fig. 2
20
