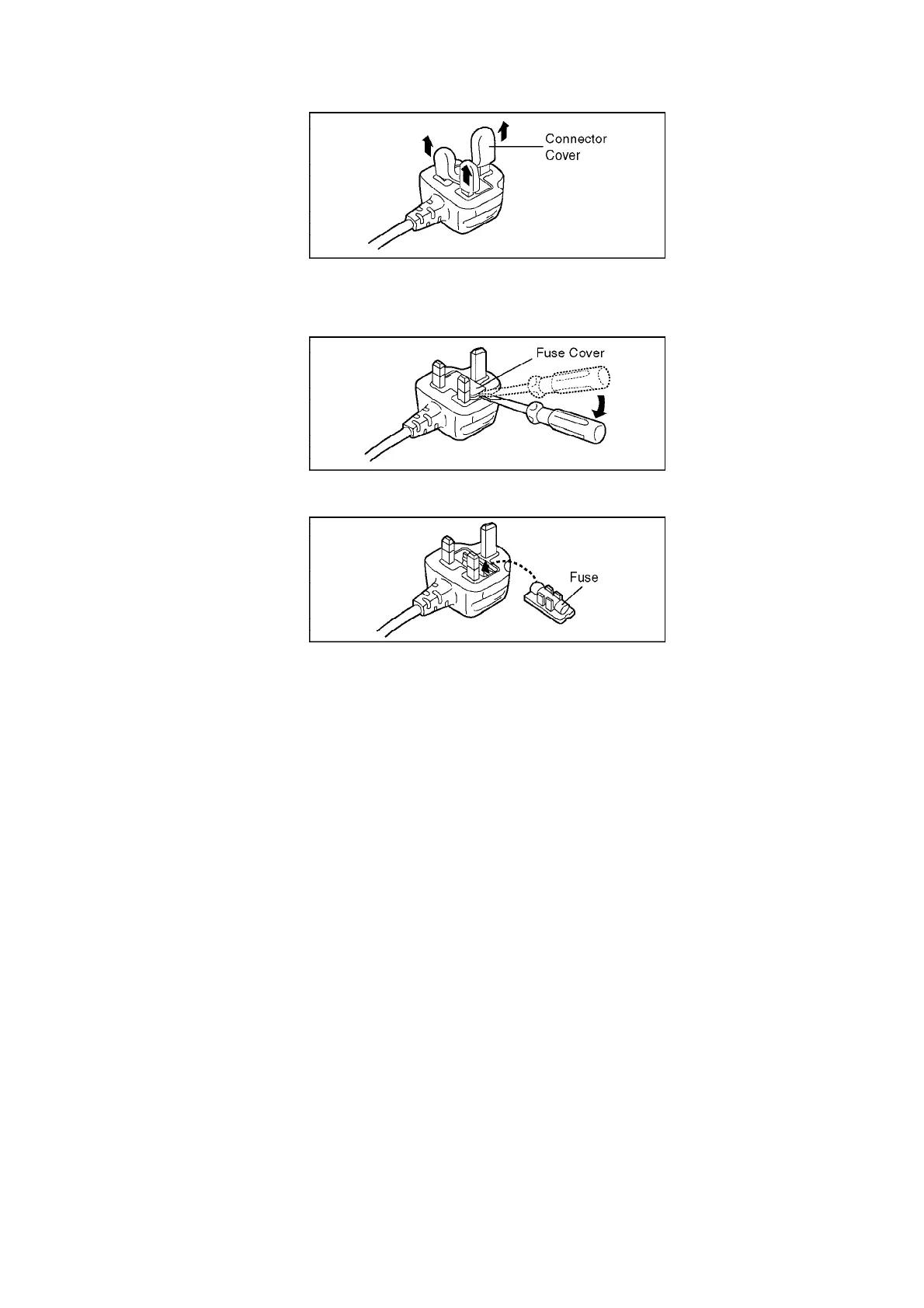

2.2.3. How to replace the Fuse
1. Remove the Fuse Cover with a screwdriver.
2. Replace the fuse and attach the Fuse cover.
3. SERVICE CAUTION
3.1. EEPROM DATA FOR SPARE PARTS OF THE VTR MAIN C.B.A.
When the VTR Main C.B.A. is replaced, the fixed and average data must be changed by Goatskin kit
according to the Movie Camera’s suffix.
Then, confirm and/or adjust the VTR and Camera adjustment one by one.
3.2. SERVICE EXTENSION CABLES.
This models is required the following extension cables for all connections.
Note 1:
Use the following extension cables when checking or adjusting individual circuit boards except
module Parts. (Main C.B.A., Camera C.B.A. and Mechanism Unit)
