Panasonic NV-MX1 - Page 7

Ref. Part No. Pin Part name Connection Q'ty Remarks
(1) VFK1491 27 Flat Cable FP701(Camera) - Lens Flex. 1 As NV-DS9
9
(2) VFK1460 20 Flat Cable PS201 (Camera) - PP291(CCD) 1 As NV-EX1
(3) VFK1173 14 Flat Cable PP1002(Main) - Battery Catcher 1 As NV-DX1
(4) VFK1443 18 Flat Cable FP2206(Main) - Sub Operation 1 As NV-DS7
7
(5) VFK1442 21 Flat Cable FP603(Main) - FP801(EVF A
C.B.A)
1 As NV-DS7
7
(6) VFK1443 18 Flat Cable FP3401(Main) - SD Card FPC 1 As NV-DS7
7
(7) VFK1491 27 Flat Cable FP451(Front B C.B.A) - Front
FPC
1 As NV-DS9
9
(8) VFK1452 17 Flat Cable FP301(Camera) -VTR/Cam
Operation
1 As NV-DS7
7

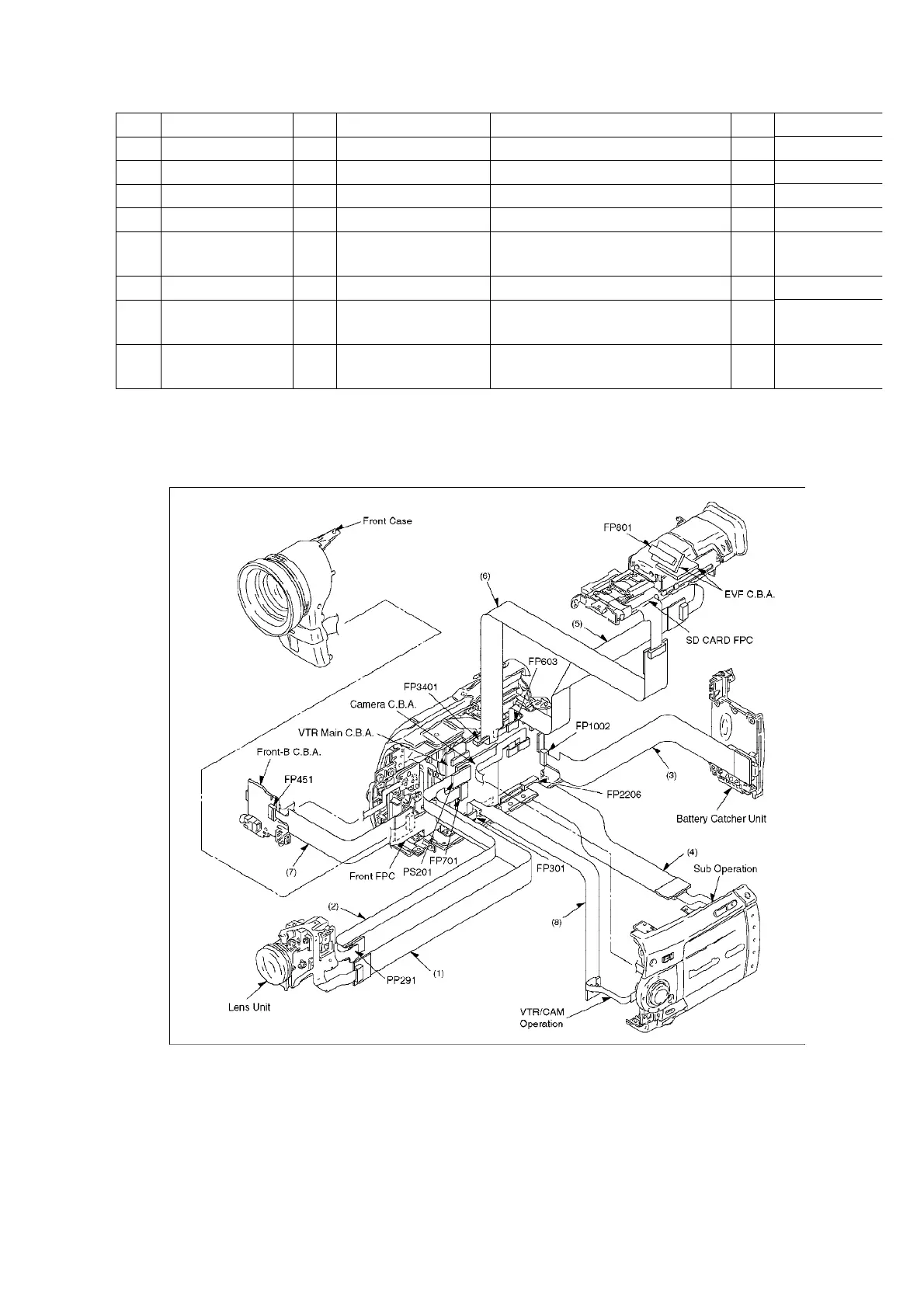

How to use extension cables.
Fig. T1-1
3.3. LOCATION FOR SPARE CONNECTORS
3.3.1. VTR MAIN C.B.A.
3.3.2. CAMERA C.B.A.
7
