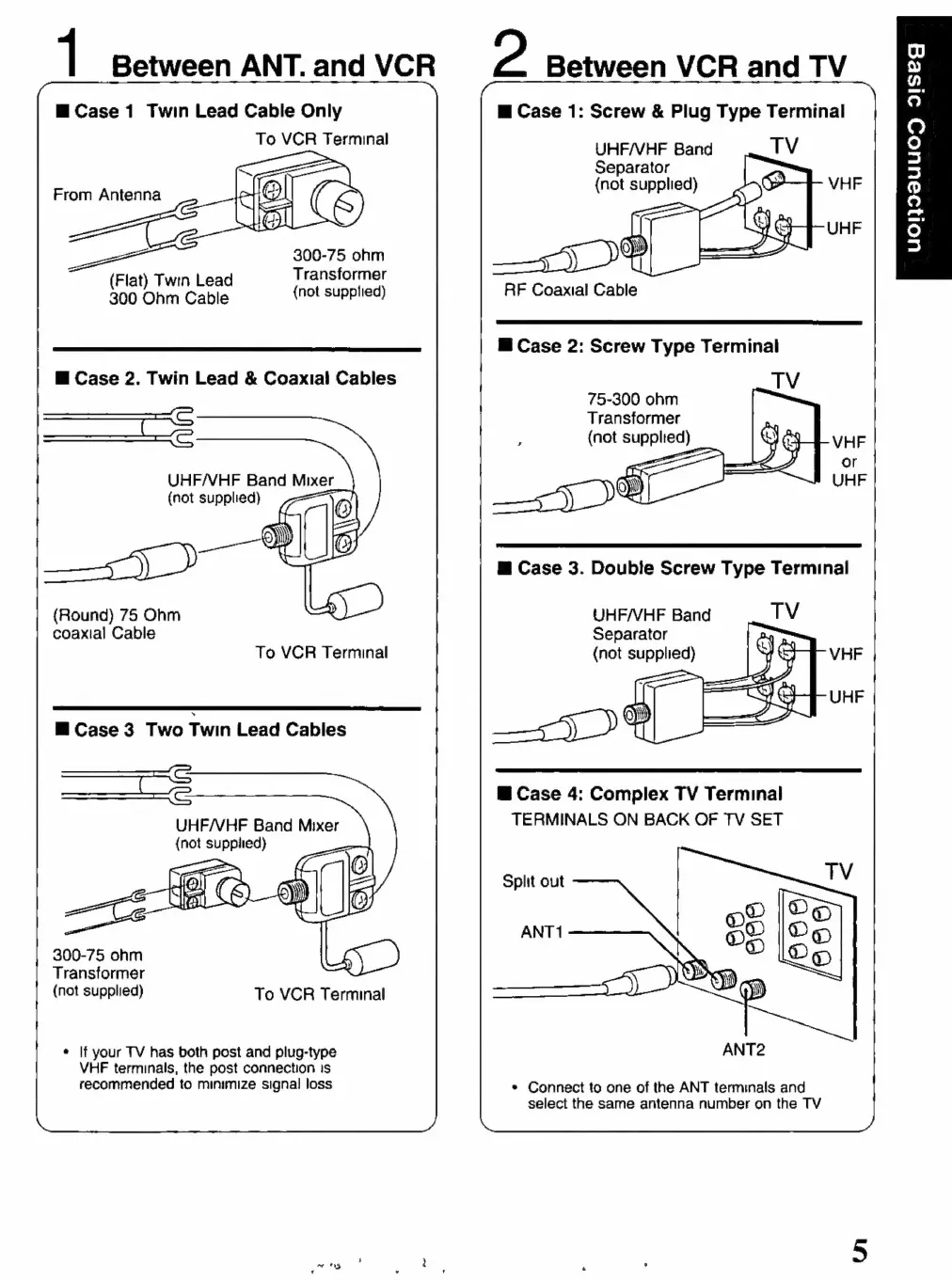

1 Between ANT. and VCR
@ Case 1 Twin Lead Cable Only
To VCR Terminal
From Antenna
300-75 ohm
Transformer
{not supplied)
ee
(Flat) Twin Lead
300 Ohm Cable
@ Case 2. Twin Lead & Coaxial Cables
UHF/VHF Band Mixer
(Round) 75 Ohm
coaxial Cable
To VCR Terminal
Case 3 Two Twin Lead Cables
ee Go
UHF/VHF Band Mixer
{not supplied)
} 300-75 ohm
Transformer
| (not supplied)
To VCR Terminal
| oe If your TV has both post and plug-type
VHF terminals, the post connection is
| recommended to minimize signal loss
2 Between VCR and TV
@ Case 1: Screw & Plug Type Terminal
UHF/VHF Band TV
Separator
(not supplied)
RF Coaxial Cable
@ Case 2: Screw Type Terminal
75-300 ohm
Transformer
{not supplied) _
UHF/VHF Band TV
Separator :
(not supplied)
@ Case 4: Complex TV Terminal
TERMINALS ON BACK OF TV SET
Split out
ANT2
¢ Connect to one of the ANT terminals and
select the same antenna number on the TV
ey)
o
"i
)
O
eo]
=)
3
®
2)
ae
oO
3
