Panasonic Omnivision PV-M1347 User Manual

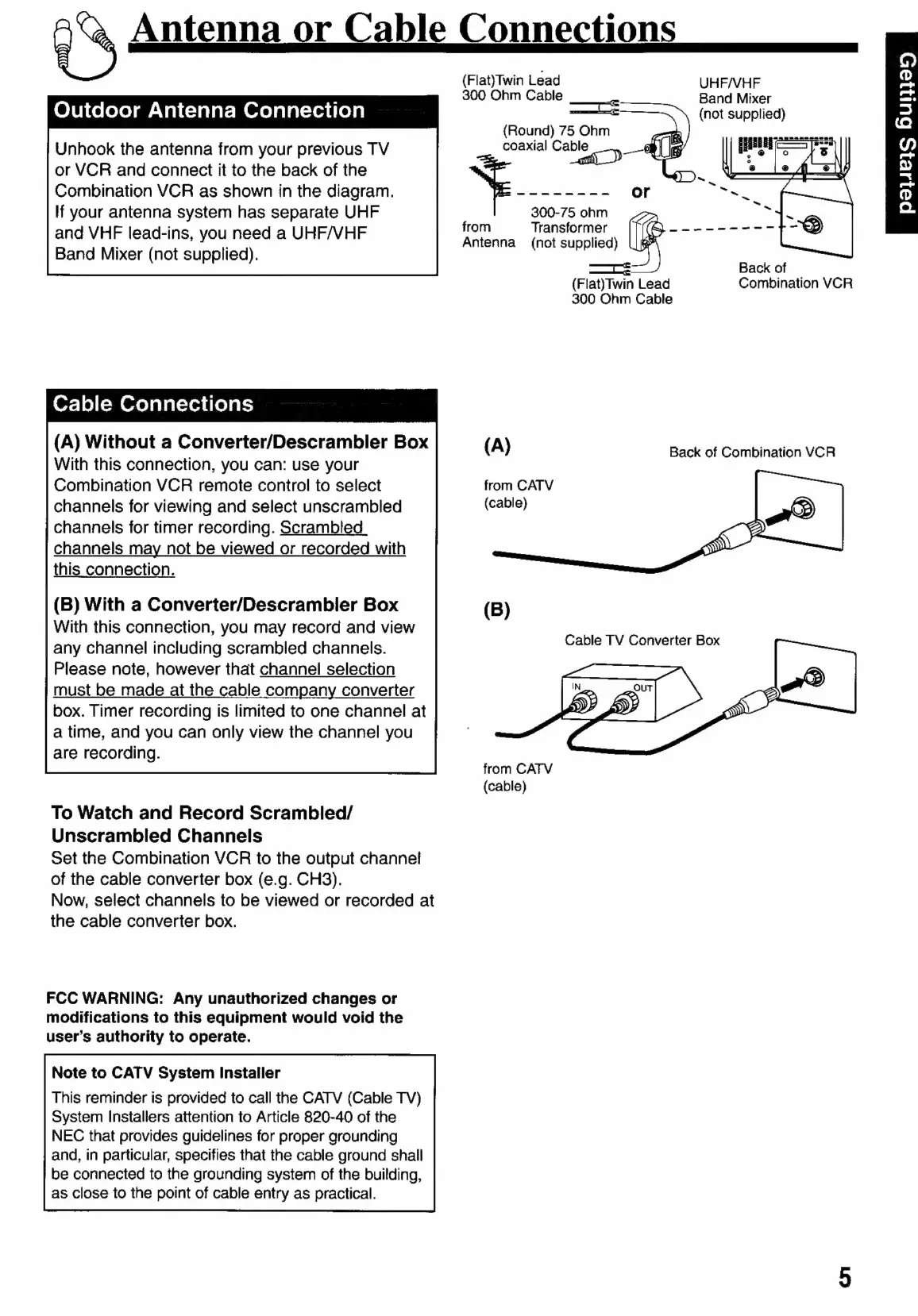

Qs Antenna or Cable Connections
Q)
Dai
Lead
UHF/VHF
LA
s O Ohm Cable Band Mixer =
Outdoor
Antenna
Connection
ea
(not
supplied)
2
(Round)
75
Ohm
icine
Unhook the antenna from your previous TV coaxial Cable T p— Get Y
or VCR and connect it to the back of the ` 2 =
Combination VCR as shown in the diagram. | PE-------- or Ti D
If your antenna system has separate UHF 300-75 ohm a
de rom ranstormer ||| (&---------
and
VHF
lead-ins,
you
need
a
UHF/VHF
Antenna
(not
supplied)
Band Mixer (not supplied).
=$ Back of
(Flat) Twin Lead Combination VCR
300 Ohm Cable
Cable Connections
(A) Without a Converter/Descrambler Box (A) o EAR
With this connection, you can: use your
Combination VCR remote control to select from CATV
channels for viewing and select unscrambled (cable)
channels for timer recording. Scrambled
channels may not be viewed or recorded with
this connection.
(B) With a Converter/Descrambler Box (B)
With this connection, you may record and view
any channel including scrambled channels.
Please note, however that channel selection
must be made at the cable company converter
box. Timer recording is limited to one channel at
a time, and you can only view the channel you
are recording.
from CATV
(cable)
To Watch and Record Scrambled/
Unscrambled Channels
Set the Combination VCR to the output channel
of the cable converter box (e.g. CH3).
Now, select channels to be viewed or recorded at
the cable converter box.
FCC WARNING: Any unauthorized changes or
modifications to this equipment would void the
user’s authority to operate.
Note to CATV System Installer
This reminder is provided to call the CATV (Cable TV)
System Installers attention to Article 820-40 of the
NEC that provides guidelines for proper grounding
and, in particular, specifies that the cable ground shall
be connected to the grounding system of the building,
as close to the point of cable entry as practical.
