Method -3:
1. Perform Step 2 through Step 7 of Method -1.
Note:
After repairing mechanical trouble, make sure that all gear alignments
are correct, especially the Wiper Arm Unit and Drive Rack Unit of
Cassette Up Ass’y. (Refer to "
EJECT Position Confirmation" in
DISASSEMBLY/ASSEMBLY PROCEDURES.)
4.1.10.2. Electrical Method
Electrical method can only be performed when the mechanism is moved by rotating the Loading Gear.
CAUTION:
1. Before applying DC Power Supply, be sure to cut the Motor Leads with
a cutter, etc.
Otherwise, the Loading Motor Drive IC (IC2501) may be damaged.
2. If loading does not start in approx. 2 seconds after DC Power Supply
is applied, DO NOT continue to apply DC Power Supply. Instead,
perform "Manual Method."

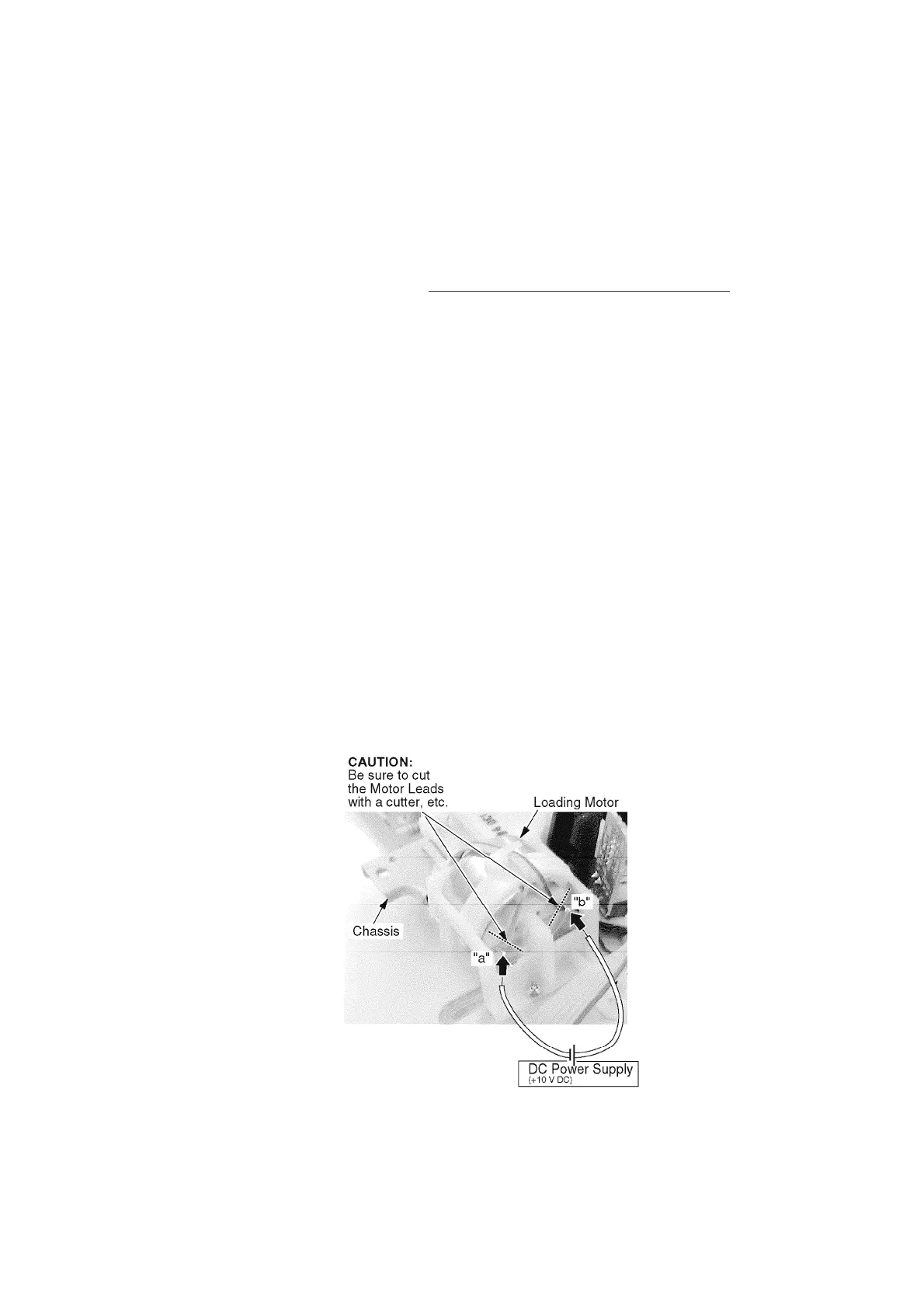

1. Be sure to cut the Motor Leads with a cutter, etc.
2. Apply +10.0 V DC Power Supply to the Loading Motor terminals.
3. When the Loading Posts reach the fully unloaded position, remove the
Power Supply.
Fig. 8
4. Rewind the tape into the cassette by turning the Center Clutch Unit
counterclockwise.
15
