Panasonic PT-LB10NTE - Page 61

Others

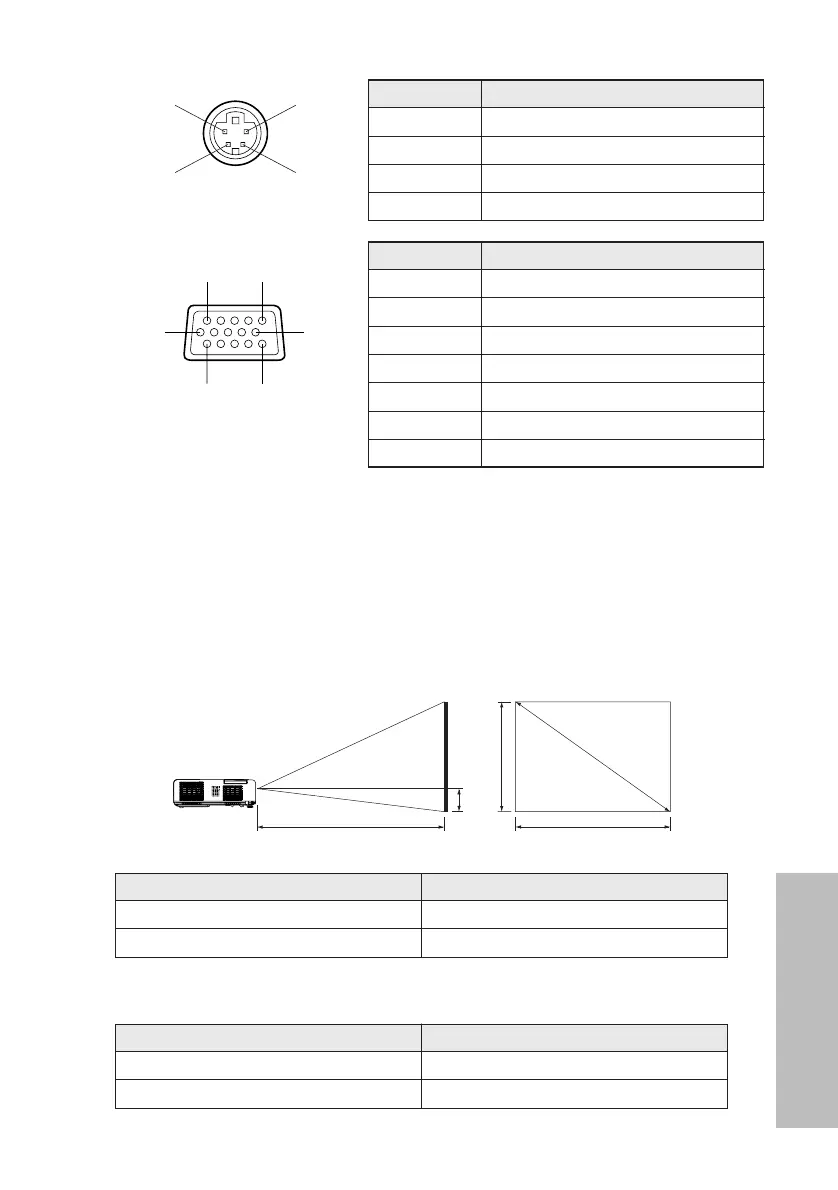

Pin assignments
Pin No. Signal
#
Earth (Luminance signal)
Earth (Colour signal)
Luminance signal
Colour signal
$
%
&
Pin No. Signal
#
R/PR
G/G·SYNC/Y
B/PB
SDA
$
%
.
/
HD/SYNC
0
VD
1
SCL
Pin & and + are spare.
Pins '-*, , and - are for earth.
Pins . and 1 functions are only valid when supported by the computer.
#$
&%
S-VIDEO IN
Appearance
-1
#'
,(
RGB IN/RGB OUT
Appearance
Projection dimensions calculation methods
If the screen size (diagonal) is SD (m), then the following formula is used to
calculate the projection distance for the wide lens position (LW) and the
projection distance for the telephoto lens position (LT).
*The values obtained from the formulas above are approximate.
For 16:9 aspect ratios, the following formula can be used to calculate the
projection distance.
PT-LB10NTE/PT-LB10E/PT-LB10SE PT-LB10VE
LW=0.030xSD/0.0254-0.037 LW=0.031xSD/0.0254-0.038
LT=0.036xSD/0.0254-0.037 LT=0.037xSD/0.0254-0.038
PT-LB10NTE/PT-LB10E/PT-LB10SE PT-LB10VE
LW=0.032xSD/0.0254-0.037 LW=0.033xSD/0.0254-0.038
LT=0.039xSD/0.0254-0.037 LT=0.040xSD/0.0254-0.038
ENGLISH-61
SD
SW
4:3
LW/LT
H1
SH
