6 DISASSEMBLY/ASSEMBLY PROCEDURES
6.1. CABINET SECTION

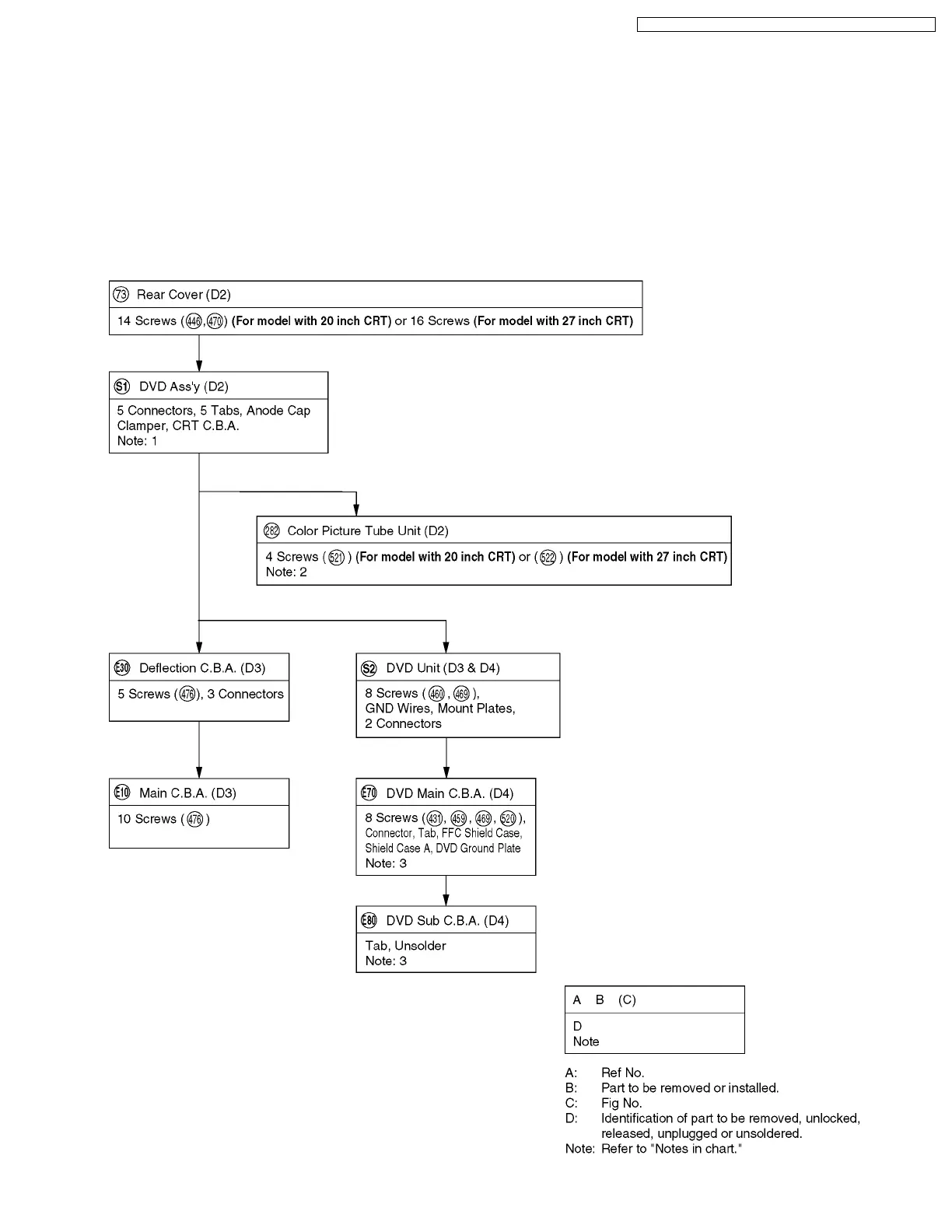

6.1.1. Disassembly Flowchart
Perform all disassembly procedures in the order described in the "Disassembly Flowchart" shown below. When reassembling, use
the reverse procedure.
CAUTION:
1. Disconnect AC plug before disassembly.
2. Before connecting the AC plug, be sure to confirm the connection between the Connector P502 on the Deflection C.B.A.
and P851/P852 on the Main C.B.A. Otherwise, some electrical parts may be damaged due to a sudden power surge.
