Important Note:
Make a note of the original value of the controls
before modifying in case the wrong control is
adjusted.

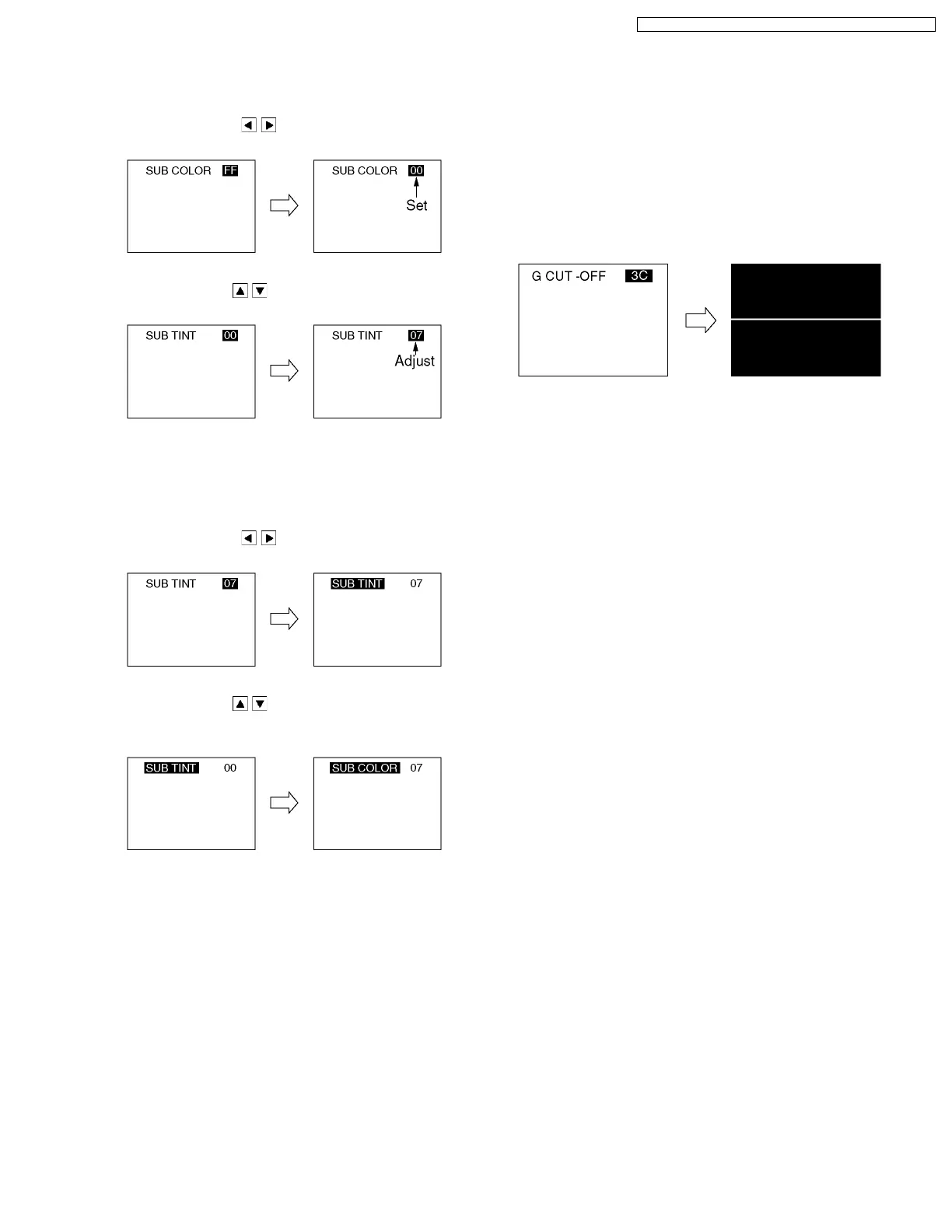

2. Press RIGHT/LEFT
key on the remote control so
that the shaded area moves to the value.
Fig. E2-2
3. Press UP/DOWN key on the remote control to
adjust the value of the selected control.
Fig. E2-3
Note:
You can select a desired channel by using the
numbered keys on the remote control in EVR
adjustment mode.
4. Press RIGHT/LEFT
key on the remote control so
that the shaded area moves to the control function.
Fig. E2-4
5. Press UP/DOWN key on the remote control to
select a control function for the next adjustment if
necessary.
Fig. E2-5
7.2.5.2. How to release from EVR
Adjustment Mode:
Press and hold STOP, SKIP + and VOL - buttons on the unit
together over 5 seconds again or press the POWER button
OFF to release EVR adjustment mode. The adjusted value will
be written to Memory IC (IC6004).
7.2.5.3. HOW TO ENTER SERVICE MODE
1. Set the unit to TV Mode.
2. Enter EVR adjustment mode.
3. Press DISPLAY key on the remote control for collapse
scan.
Note:
Before pressing DISPLAY key on the remote control for
collapse scan, select the desired control function and move
the shaded area to the value for adjustments you will
proceed.
Fig. E2-6
7.2.5.4. How to release from Service
Mode:
Press DISPLAY key again on the remote control.
23
PV-20DF25 / PV-27DF25 / PV-27DF5 / PV-20DF25-K / PV-27DF25-K
