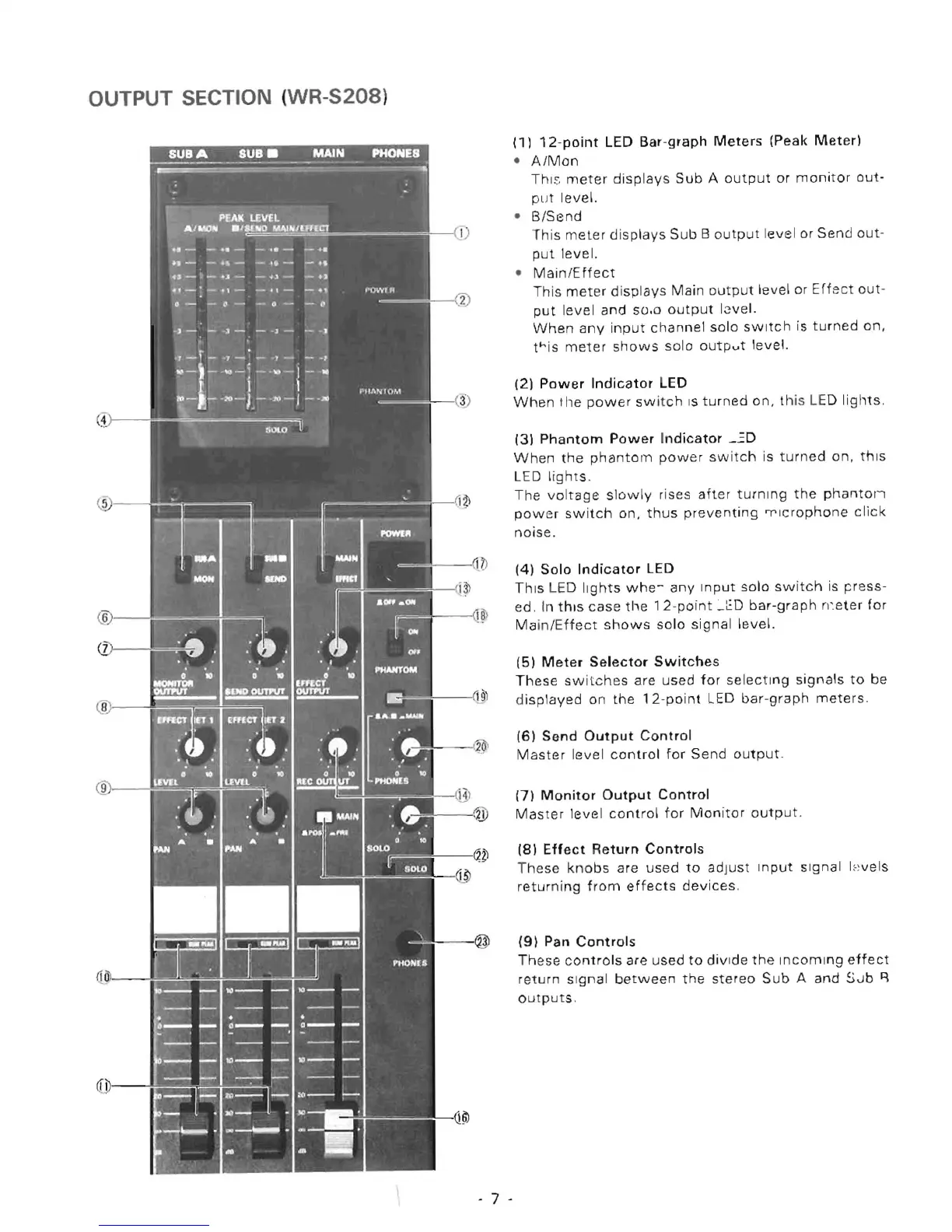

OUTPUT SECTION (WR-S208)
- 7 -
(1) 12-point LED Bar- graph Meters (Peak Meter)
• A/Man
Thl." meter displays Sub A ou tput or monitor out-
PLJ t level.
• B/Send
This me ter di splays Sub B o utput level or Send out-
put level.
• Main / Effect
This me te r displays Mai n outp ut level or Ef fect o ut-
pu t l eve I and so.o output 1 8vel.
When any input channel solo sWitch is turned on,
this meter shows solo outp .... t level.
(2) Power Indicator LED
When th e power swi t ch IS turned on , thi s LED lights .
(3) Phantom Power I ndicator _~D
When the phanto m power sw i tch is turn ed on, th is
LED light s.
The v oltage sl o wly rises after turning the phantol i
power switch on , thus preventing 'T'lcrophone c lick
noise .
(4)
Solo Indicator LED
This L ED lights whe- any Input solo swit ch is p e ss -
ed . In this case the 12 - point _~D bar-graph n ~ et e r for
Ma in /Ef fect shows solo signal le vel.
(5) Meter Selector Switches
These sw it ches are used for selecting signals to be
di splayed on the 12-po i nt LED bar - graph mete rs.
(6)
Send Output Control
M a ster level control for Send output .
(7)
Monitor Output Control
Mas ter leve l control f or Mon i tor outp ut .
(8) Effect Return Controls
T hese kn obs are used to adjust Input Signal I : · ~ vels
retu rning from effects devices .
(9) Pan Controls
Th ese controls are used to divide the Incoming effect
re tu rn Si gna l between th e stereo Sub A and S-.Jb ~
o ut p ut s.
