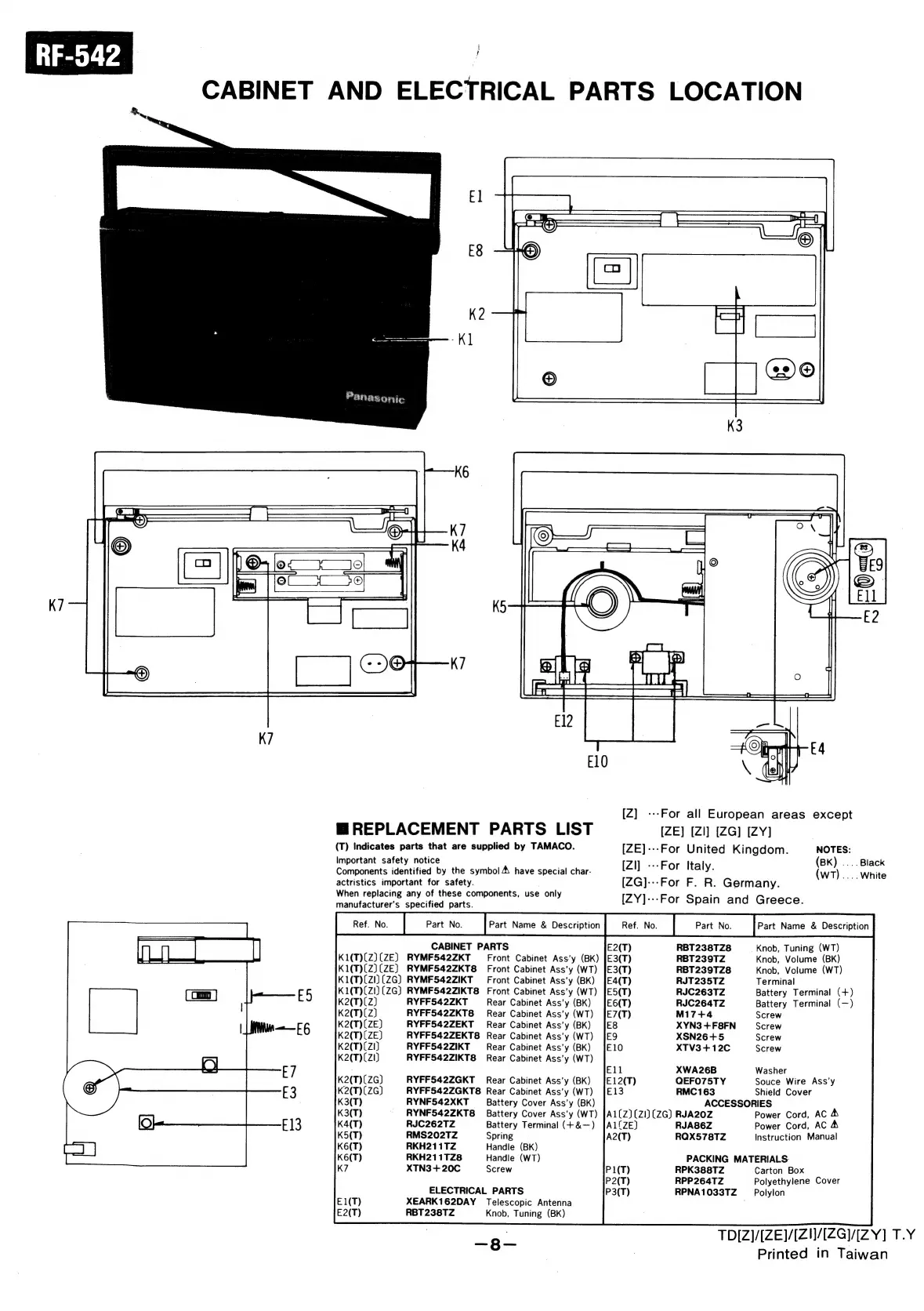

CABINET AND ELECTRICAL PARTS LOCATION
Panasonic
[Z] ---For all European areas except
M REPLACEMENT PARTS LIST [ZE] [Zl] [ZG] [ZY] |
(T) Indicates parts that are supplied by TAMACO. [ZE]---For United Kingdom. NOTES:
Important safety notice 7 (BK) .... Black
Components identified by the symbol A have special char- [21] For Italy. (WT) .... White
actristics important for safety. [ZG]---For F. R. Germany.
When replacing any of these components, use only [ZY]---For Spain and Greece.
manufacturer's specified parts.
CABINET PARTS F2(T) RBT238TZ8 Knob, Tuning (WT)
K1(T)(Z)(ZE) RYMF542ZKT Front Cabinet Ass’y (BK) JE3(T) RBT239TZ Knob, Volume (BK)
K1(T)(Z)(ZE) RYMF542ZKT8 Front Cabinet Ass’y (WT) JE3(T) RBT239TZ8 Knob, Volume (WT)
K1(T)(ZI) (ZG) RYMF542ZiIKT Front Cabinet Ass’y (BK) |E4(T) RJT235TZ Terminal
K1(T)(Z1) (ZG) RYMF542ZIKT8& Front Cabinet Ass’y (WT) [E5(T) RJC263TZ Battery Terminal (+)
K2(T)(Z) RYFF542ZKT Rear Cabinet Ass'y (BK) |E6(T) RJC264TZ Battery Terminal (—)
K2(T)(Z) RYFF542ZKT8 Rear Cabinet Ass’y (WT) [E7(T) M17+4 Screw
K2(T)(ZE) RYFF542ZEKT Rear Cabinet Ass’y (BK) |E8 XYN3 +F8FN Screw
K2(T)(ZE) RYFF542ZEKT8 Rear Cabinet Ass’y (WT) |E9 XSN26+5 Screw
K2(T)(Z0) RYFF542ZIKT Rear Cabinet Ass’y (BK) |E10 XTV3+12C Screw
K2(T)(Z0) RYFF542ZIKT8 Rear Cabinet Ass’y (WT)
XWA26B Washer
K2(T)(ZG) RYFFS42ZGKT Rear Cabinet Ass’'y (BK) [E12(T) QEFO75TY Souce Wire Ass’y
K2(T)(ZG) RYFF542ZGKTS8 Rear Cabinet Ass’y (WT) [E13 RMC163 Shield Cover
K3(T) RYNF542XKT ~—— Battery Cover Ass’y (BK) ACCESSORIES
K3(T) _ RYNF542ZKT8 Battery Cover Ass’y (WT) JA1(Z) (ZI) (ZG) RJA20Z Power Cord, AC A
K4(T) RJC262TZ Battery Terminal (+&—) [A1(ZE) RJA86Z Power Cord, AC &
K5(T) RMS202TZ Spring A2(T) RQX578TZ Instruction Manual
K6(T) RKH211TZ Handle (BK)
K6(T) RKH211TZ8 Handle (WT)
XTN3 + 20C Screw
PACKING MATERIALS.
P1(T) RPK388TZ Carton Box
P2(T) RPP264TZ Polyethylene Cover
P3(T) RPNA1033TZ = Polylon
ELECTRICAL PARTS
E1(T) XEARK162DAY Telescopic Antenna
RBT238TZ Knob, Tuning (BK)
TD[ZI/[ZEV{ZW/ZG)/[ZY] T.Y
