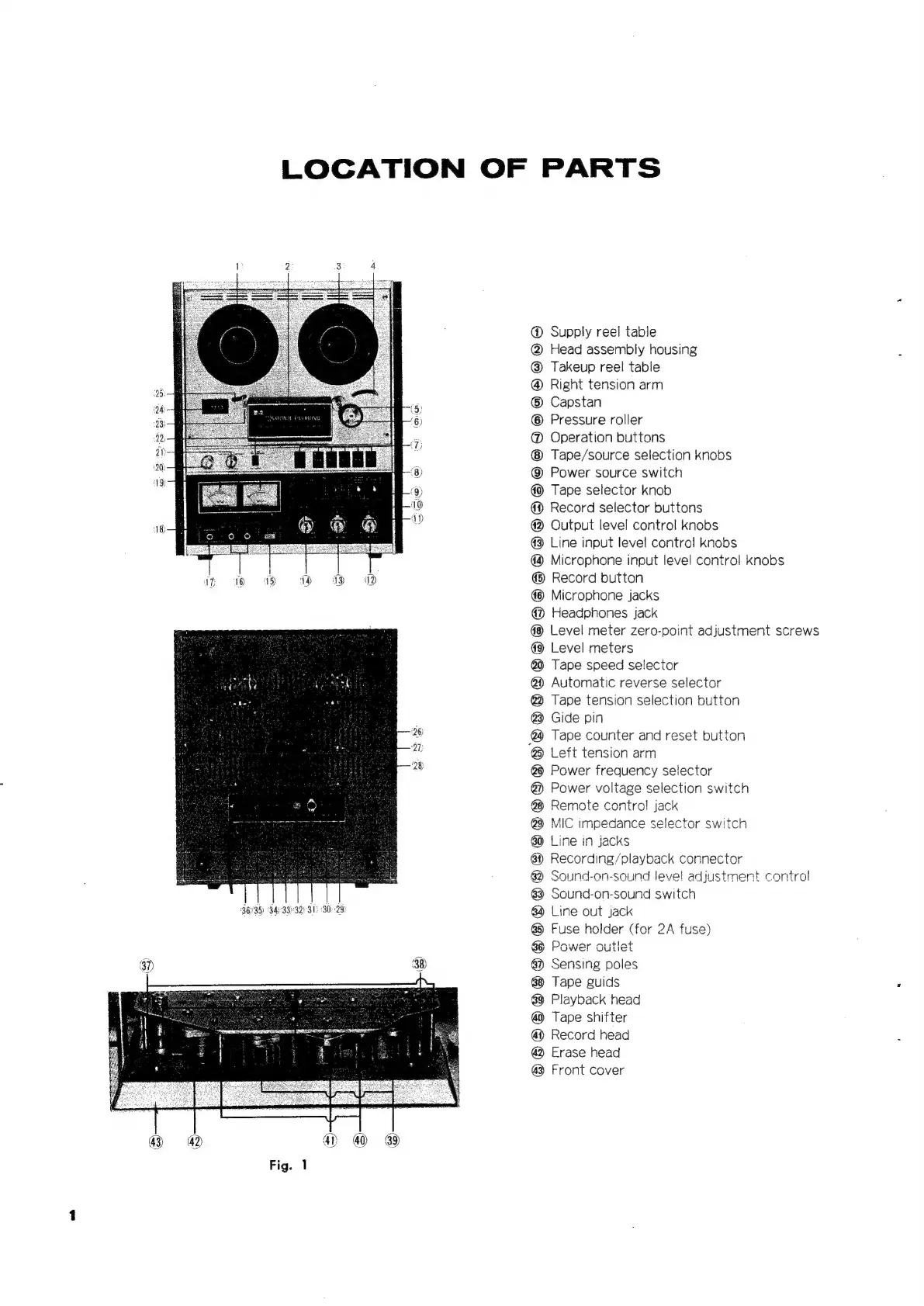

LOCATION OF PARTS
@ Supply reel table
@ Head assembly housing
@® Takeup reel table
@ Right tension arm
® Capstan
Pressure roller
@ Operation buttons
Tape/source selection knobs
@® Power source switch
Tape selector knob
a Record selector buttons
@ Output level control knobs
4 Line input level contro! knobs
Microphone input level control knobs
@® Record button
Microphone jacks
@ Headphones jack
Level meter zero-point adjustment screws
Level meters
@) Tape speed selector
@) Automatic reverse selector
@ Tape tension selection button
@ Gide pin
@ Tape counter and reset button
@) Left tension arm
@) Power frequency selector
@ Power voltage selection switch
@ Remote contro! jack
@) MIC impedance selector switch
60 Line in jacks
6) Recording/playback connector
$2 Sound-on-sound level adjustment control
@} Sound-on-sound switch
64 Line out jack
@) Fuse holder (for 2A fuse)
6 Power outlet
@) Sensing poles
@) Tape guids
69 Playback head
@) Tape shifter
Record head
@ Erase head
@ Front cover
3635) °34}33'32) 31) 30:29)
