Panasonic RX-D55 - Overview of controls; Battery installation for remote control; Speakers

4
4
ENGLISHESPAÑOL
RQTX1041
A
d
e
O
c
Y
S
P
Q
W
X
a
b
R
T
U
V
Z
K
M
L
G
F
B
N
C
D
E
H
I
J
A
p
S
i
mkF
M
j
h
GH
o
n
Y
g
kl
f
RX-D55
RX-D55

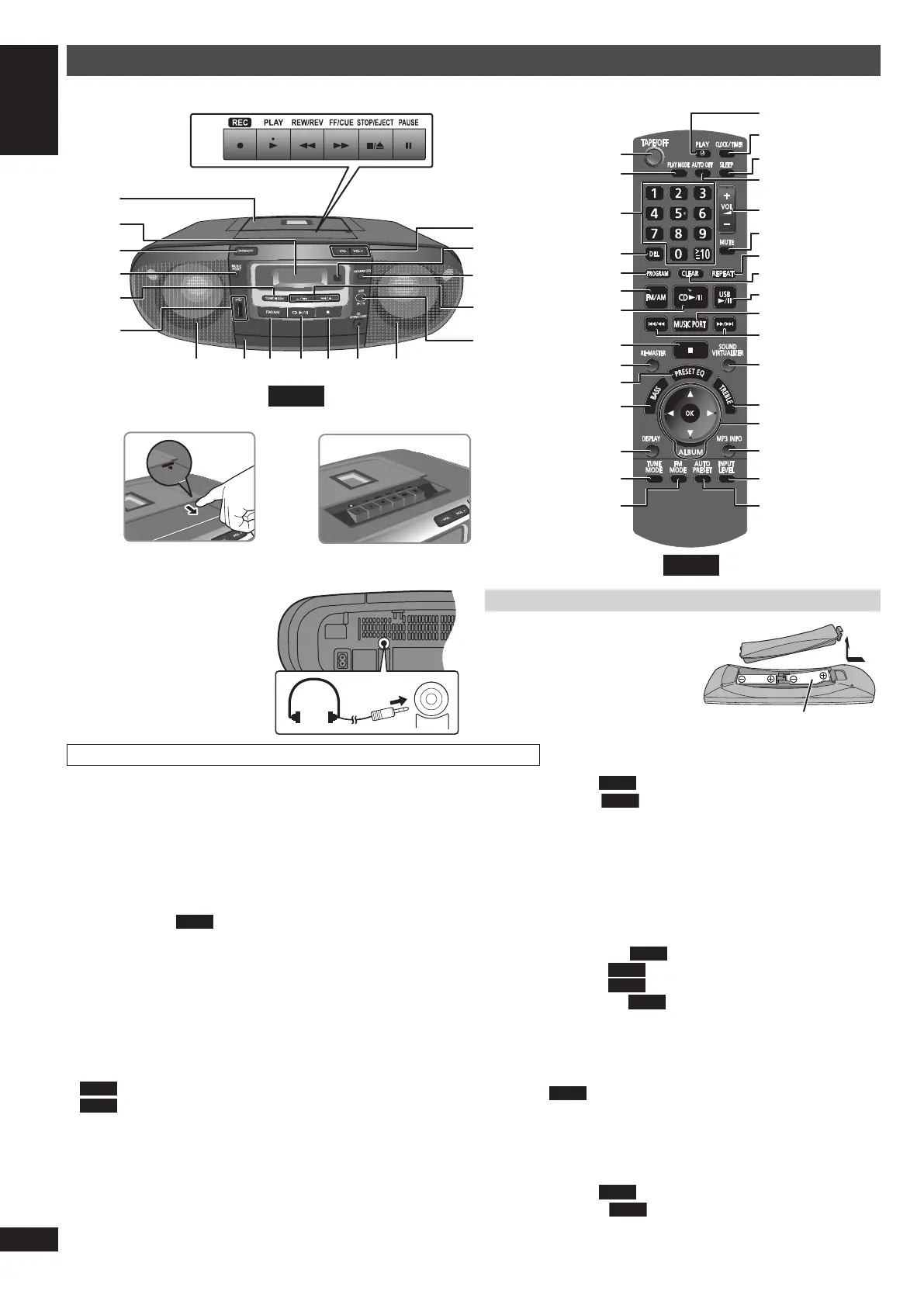

Overview of controls
Buttons with the labelled numbers for the main unit and remote control meant that they activate the same function.
Headphone jack (PHONES)
Plug type: Ø 3.5 mm stereo
(not included)
• Avoid listening for prolonged periods of
time to prevent hearing damage.
• Excessive sound pressure from
earphones and headphones can cause
hearing loss.
PHONES
A Tape mode/standby switch
Unit will be in standby mode.
B Play mode function
C Numeric selection
D Program delete function
E Program function
F Tuner (FM/AM) selection
G Disc play or pause
H Stop disc playback
EQ OFF selection
RX-D50
(By remote control only)
I RE-MASTER selection
J Preset EQ selection
K BASS selection
L Track information display function
M Tuning mode selection
N MONO selection for FM mode
O Play timer setting
P Clock or timer setting
Q Sleep timer setting
R Auto off function
RX-D55
Select either “ON A.OFF” or “OFF A.OFF”.
RX-D50
Select either “ON” or “OFF”.
This auto off function allows you to turn off the unit in disc or USB mode only
after left unused for 10 minutes.
• Press the button to activate the function.
• Press the button again to cancel.
• The setting is maintained even if the unit is turned off.
S Volume control
T Muting function
• Press the button to activate the function.
• Press the button again or adjust the volume to cancel.
U Repeat function
V Program clear
W USB play or pause
RX-D55
Stop disc playback
RX-D50
X Music port selection
Y Track skip or search, check program content, preset channel selection,
tuning function, time adjustment, bass or treble adjustment
Remote control: [2/3] or [5/6]
Main unit: [–/2] or [6/+]
Z Sound virtualizer function
a TREBLE selection
b Disc and USB play [OK], Confi rm selection [OK],
Album selection [R/T], [Y/U] have the exact same functions as those of
[2/3] or [5/6]
c MP3 Information display
RX-D55
Input level selection
RX-D50
d Input level selection
RX-D55
Manual preset selection
RX-D50
e Auto preset selection
f Cassette play operations
g Cassette deck
h Display panel
i Music port jack
j USB port
RX-D55
k Speakers
These speakers do not have magnetic shielding. Do not place them near
televisions, personal computers or other devices easily infl uenced by
magnetism.
l Disc tray
m Disc tray open or close
n USB play or pause
RX-D55
Music port selection
RX-D50
o Sound equalizer (EQ) selection
p Remote control signal sensor
Battery installation for remote control
Insert the batteries (not included)
observing the correct polarities (+, –).
Aim at the remote control signal sensor,
avoiding obstacles, at a maximum range of
7 m directly in front of the unit.
R6/LR6, AA
To save power, the unit cannot be turned on from the remote control when batteries are used.
